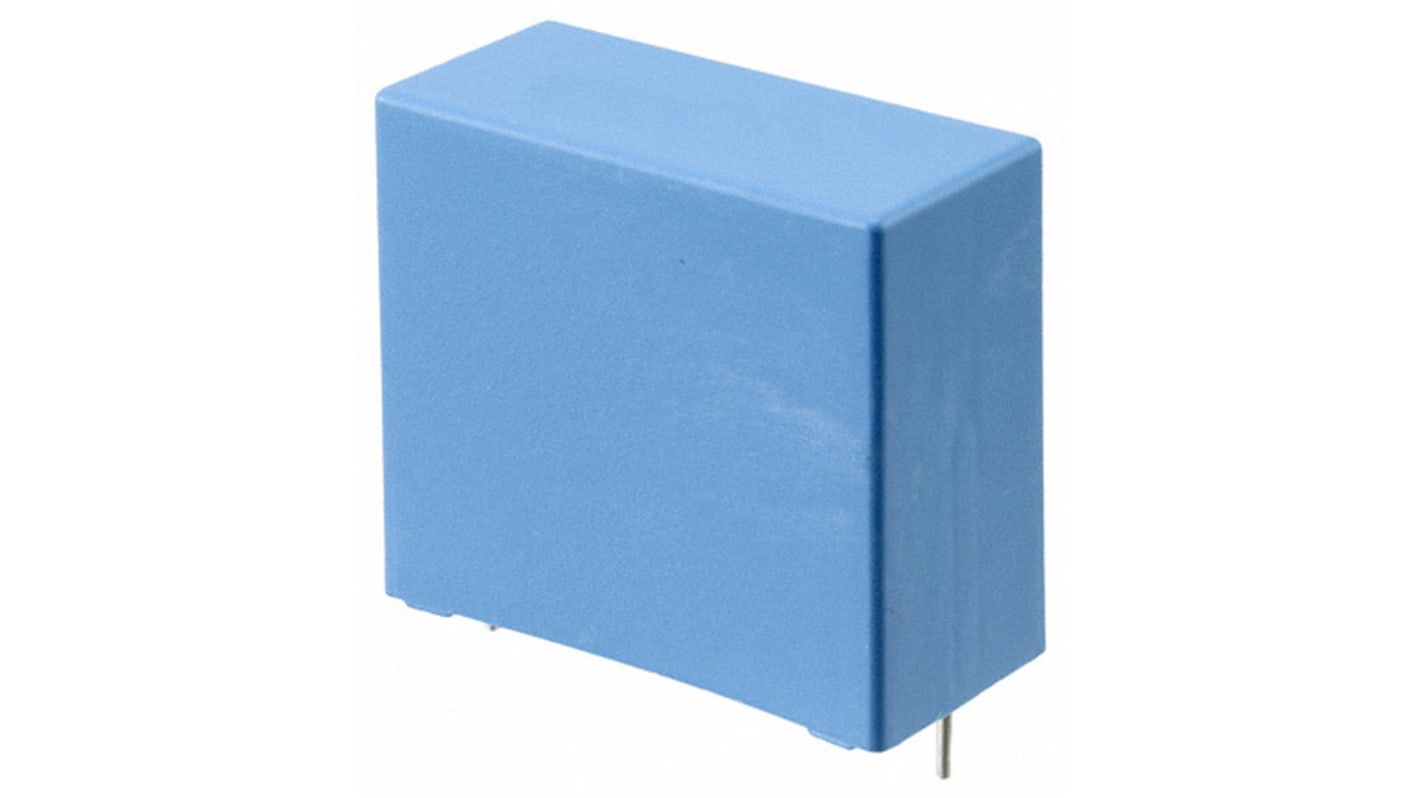

KEMET PHE450 Polypropylene Capacitor PP, 250V dc, ±5%, 680pF
- RS Stock No.:
- 135-3505
- Mfr. Part No.:
- PHE450HK3680JR17
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.025
(exc. VAT)
£8.425
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 650 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 - 175 | £0.281 | £7.03 |
200 - 475 | £0.135 | £3.38 |
500 + | £0.128 | £3.20 |
*price indicative
- RS Stock No.:
- 135-3505
- Mfr. Part No.:
- PHE450HK3680JR17
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 680pF | |
Voltage | 250V dc | |
Tolerance | ±5% | |
Series | PHE450 | |
Lead Pitch | 22.5mm | |
Length | 26mm | |
Depth | 9mm | |
Lead Length | 6mm | |
Height | 18.5mm | |
Dimensions | 26 x 9 x 18.5mm | |
Terminal Type | Radial | |
Lead Diameter | 0.8mm | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55°C | |
Dissipation Factor | 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 680pF | ||
Voltage 250V dc | ||
Tolerance ±5% | ||
Series PHE450 | ||
Lead Pitch 22.5mm | ||
Length 26mm | ||
Depth 9mm | ||
Lead Length 6mm | ||
Height 18.5mm | ||
Dimensions 26 x 9 x 18.5mm | ||
Terminal Type Radial | ||
Lead Diameter 0.8mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 0.0003 % @ 1 kHz, 0.0004 % @ 10 kHz, 0.0015 % @ 100 kHz | ||
KEMET PHE450 Series Metallized Polypropylene Capacitors
KEMET PHE450 series double metallized polypropelene film capacitors are encapsulated in a self-extinguishing resin in a box of material which meets UL 94 V-0 requirements. Suitable for applications with high current stress like protection circuits in switch mode power supplies and deflection circuits in televisions.
Features
Double metallised polypropylene film pulse capacitor
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Rated voltage: 250 V dc to 3000 V dc
Rated voltage: 180 to 1000 V ac
Capacitance tolerance: ±5%, other tolerances on request
Lead spacing: 7.5 mm to 37.5 mm
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
