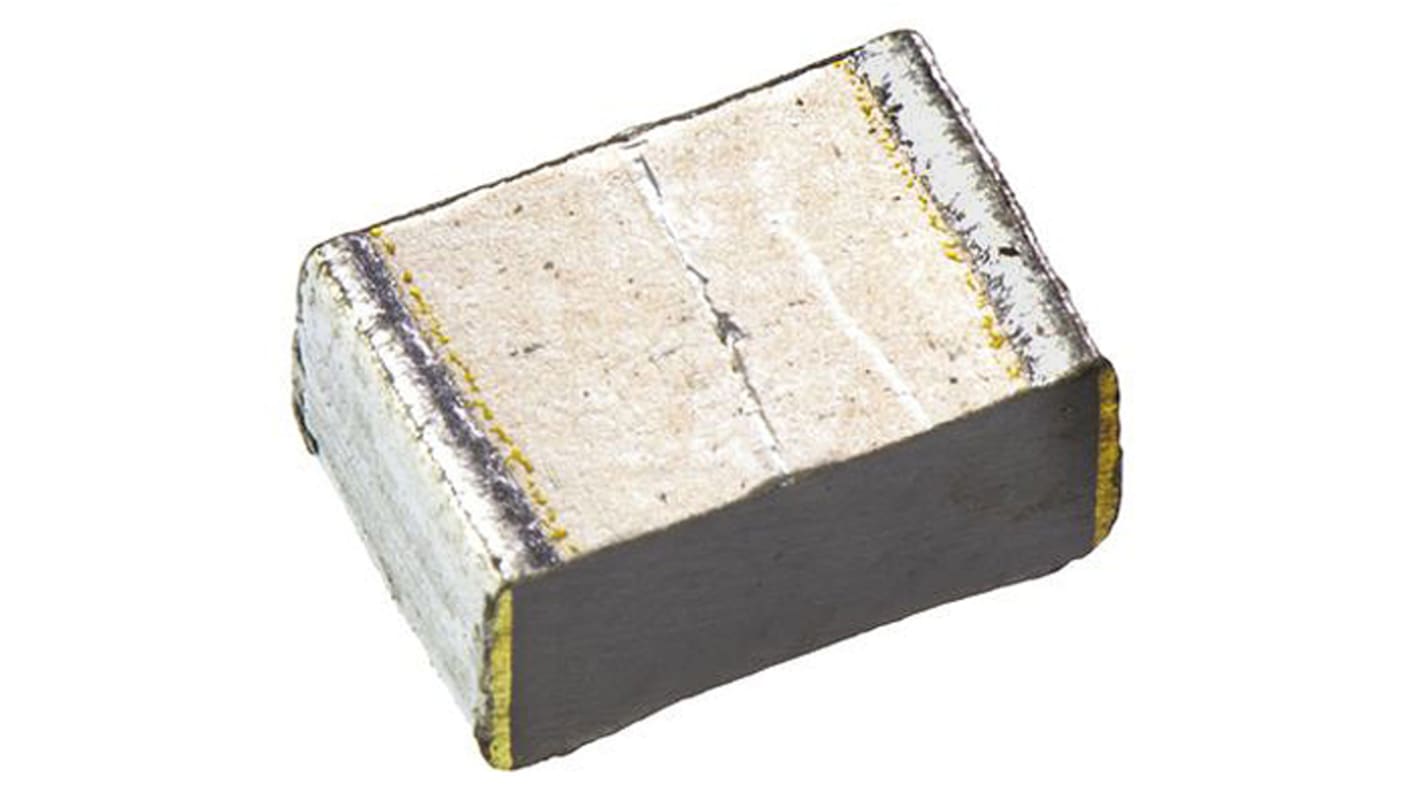

Panasonic ECHU(X) Polyphenylene Sulphide Film Capacitor (PPS), 50V dc, ±5%, 220pF, Surface Mount
- RS Stock No.:
- 109-7488
- Mfr. Part No.:
- ECHU1H221JX5
- Brand:
- Panasonic
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 3000)
£0.093
(exc. VAT)
£0.112
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 6000 | £0.093 | £279.00 |
| 9000 + | £0.081 | £243.00 |
| *price indicative | ||
- RS Stock No.:
- 109-7488
- Mfr. Part No.:
- ECHU1H221JX5
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
ECHU(X) Series PPS Film Chip Capacitors
Constructed from stacked metallised PPS film, Panasonic ECHU(X) film capacitors feature a mould-less construction. These film capacitors can withstand 85°C, 85% RH, W.V. x 1.0 for 500 hours. They are suitable for reflow soldering.
Product Features:
• Reflow soldering only
• Compact design
• Lightweight design
• Low ESR
Applications
ECHU(X) film capacitors are recommended for time-constant applications, oscillation and resonance, filtering and audio circuits.
SMT 125°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 220pF |
| Voltage | 50V dc |
| Mounting Type | Surface Mount |
| Tolerance | ±5% |
| Series | ECHU(X) |
| Length | 2mm |
| Depth | 1.25mm |
| Height | 0.9mm |
| Dimensions | 2 x 1.25 x 0.9mm |
| Terminal Type | Surface Mount |
| Package/Case | 0805 (2012M) |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
- RS Stock No.:
- 109-7488
- Mfr. Part No.:
- ECHU1H221JX5
- Brand:
- Panasonic
