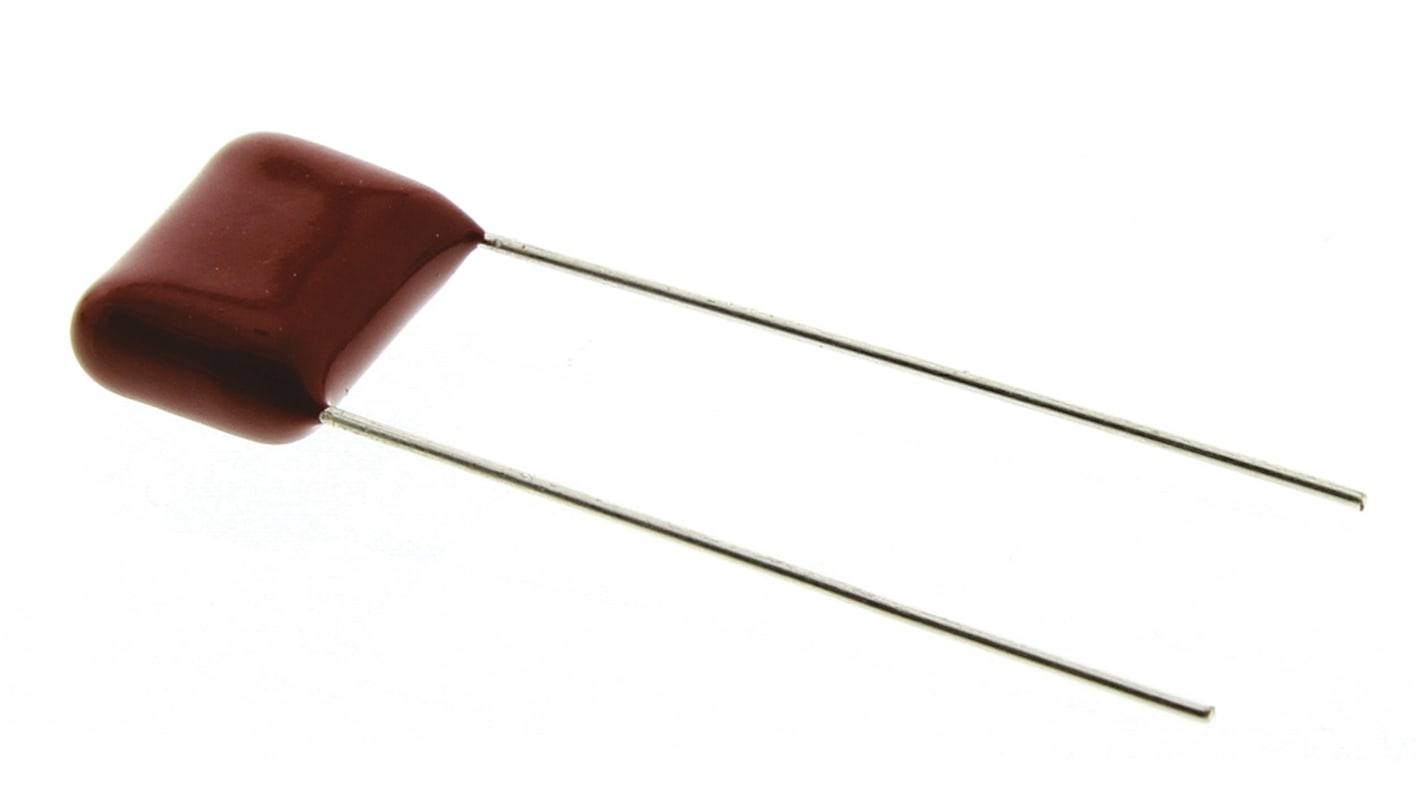

Panasonic ECQE(F) Polyester Film Capacitor, 630V dc, ±5%, 22nF, Through Hole
- RS Stock No.:
- 109-6449
- Mfr. Part No.:
- ECQE6223JF
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 500 units)*
£116.00
(exc. VAT)
£139.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,000 unit(s) shipping from 17 November 2025
- Plus 1,000 unit(s) shipping from 01 December 2025
- Plus 3,000 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
500 - 500 | £0.232 | £116.00 |
1000 - 2000 | £0.216 | £108.00 |
2500 - 4500 | £0.193 | £96.50 |
5000 - 9500 | £0.17 | £85.00 |
10000 + | £0.146 | £73.00 |
*price indicative
- RS Stock No.:
- 109-6449
- Mfr. Part No.:
- ECQE6223JF
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Capacitance | 22nF | |
Voltage | 630V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | ECQE(F) | |
Lead Pitch | 10mm | |
Length | 12mm | |
Depth | 5.3mm | |
Height | 10.5mm | |
Dimensions | 5.3 x 10.5 x 12mm | |
Dielectric | Polyester | |
Terminal Type | Through Hole | |
Lead Diameter | 0.6mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Capacitance 22nF | ||
Voltage 630V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series ECQE(F) | ||
Lead Pitch 10mm | ||
Length 12mm | ||
Depth 5.3mm | ||
Height 10.5mm | ||
Dimensions 5.3 x 10.5 x 12mm | ||
Dielectric Polyester | ||
Terminal Type Through Hole | ||
Lead Diameter 0.6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Panasonic ECQE(F) Polyester Film Capacitors
Panasonic ECQE(F) film capacitors feature flame retardant epoxy resin coating and a metallised polyester film construction. These polyester capacitors are self-healing, non-inductive and offer excellent electrical characteristics.
Lead wire type
Powder resin coated
Large capacitance range available
Wide voltage range available
Powder resin coated
Large capacitance range available
Wide voltage range available
Applications
ECQE(F) capacitors are recommended for general purpose usage.
