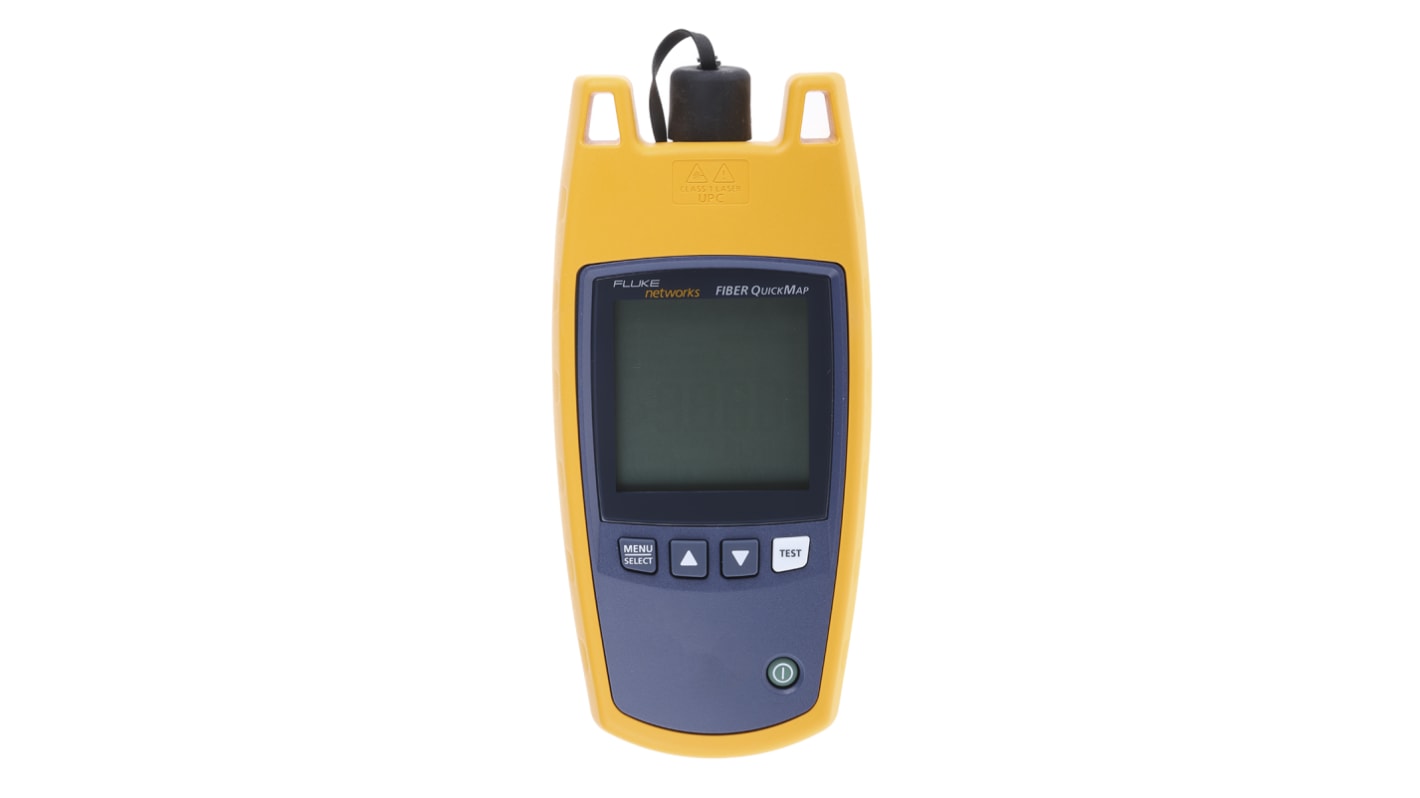

Fluke Networks Fiber QuickMap Multimode Fibre Optic Test Kit

RS Stock No.:: 745-7567
Mfr. Part No.:: FQM-100-M
Brand:: Fluke Networks

Fluke Networks Fiber QuickMap Multimode Fibre Optic Test Kit

Subtotal (1 unit)*

£2,310.00

(exc. VAT)

£2,772.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

3 unit(s) shipping from 09 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2,310.00

*price indicative

RS Stock No.:: 745-7567
Mfr. Part No.:: FQM-100-M
Brand:: Fluke Networks

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke Networks
	Product Type	Fibre Tester
	Cable Type	Multimode
	Equipment Type	Fibre Optic Test Kit
	Connector Type	SC
	Magnification	200
	Operation Test Distance	1.5km
	Battery Type	AA
	Height	175mm
	Standards/Approvals	CE, RoHS
	Width	78mm
	Power Source	Battery
	Weight	350g
	Includes	Adapter
	Model Number	Fiber QuickMap
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C

	Select all
	Brand Fluke Networks
	Product Type Fibre Tester
	Cable Type Multimode
	Equipment Type Fibre Optic Test Kit
	Connector Type SC
	Magnification 200
	Operation Test Distance 1.5km
	Battery Type AA
	Height 175mm
	Standards/Approvals CE, RoHS
	Width 78mm
	Power Source Battery
	Weight 350g
	Includes Adapter
	Model Number Fiber QuickMap
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C

RoHS Status: Not Applicable

COO (Country of Origin):: US

Fluke Fibre Tester, 1.5km Operation Test Distance, 850nm Wavelength - FQM-100-M

This fibre tester is a handheld multimode inspection tool designed to inspect and verify optical links in field environments. It operates as a battery-powered instrument using AA cells and inspects multimode cabling at 850 nm with SC connectors. The unit includes an adapter for connector interfacing and is intended for technicians who need portable, rapid optical checks across typical jobsite temperatures.

Features and Benefits:

• 200x magnification for precise endface inspection and fault identification
• Battery life supporting 1500 tests for extended field use
• Operating capability across 0-50°C for varied site conditions
• 1.5 km test distance to verify continuity over typical link lengths
• CE and RoHS compliance ensuring adherence to common safety standards

Applications

• Suitable for multimode fibre troubleshooting in LAN installations
• Ideal for technicians performing continuity checks on patchcords
• Used with SC‑terminated links during fibre connector inspection
• Can be used for site acceptance tests across short optical spans
• Useful for portable fault localisation during maintenance rounds

What power source does it use and how does that affect field readiness?

It runs on standard AA batteries, enabling quick replacement on site and consistent operation without specialised chargers.

Which connector types and wavelengths are supported for inspection?

The instrument interfaces via an SC adaptor and is configured for multimode operation at 850 nm to match common multimode systems.

How lightweight is the unit for handheld use during inspections?

The tool weighs 350 g, making it suitable for prolonged handheld inspections without significant fatigue.

What certification standards does it meet for regulatory acceptance?

It complies with CE and RoHS directives relevant to electronic equipment safety and restricted substances.
