- RS Stock No.:
- 111-0389
- Mfr. Part No.:
- FI100
- Brand:
- Tempo
10 In stock - FREE next working day delivery available
Added
Price Each
£558.20
(exc. VAT)
£669.84
(inc. VAT)
Units | Per unit |
1 + | £558.20 |
- RS Stock No.:
- 111-0389
- Mfr. Part No.:
- FI100
- Brand:
- Tempo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Fibre Optic Test Equipment

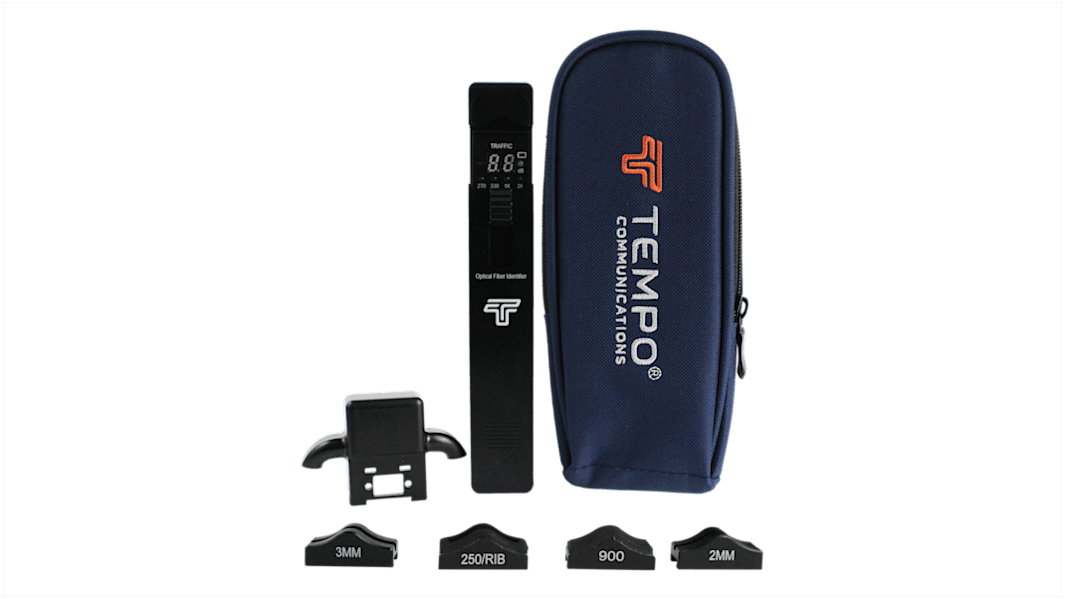

The FI-100 fibre optic test equipment has a maximum output power of 10dB. This test equipment can quickly identify the direction of the transmitted fibre and display the relative core power without interrupting the current service. This device detects modulations of 270 Hz, 1kHz and 2kHz with an audible tone and LED indication. It is supplied with an optical fibre identifier, set of adapter heads, AAA batteries x 2, instruction manual, soft carry bag and sun shield.
Features and Benefits
Range of wavelength is between 800nm and 1700nm
Non-intrusive low insertion loss prevents alarm conditions
Easy operation as it identifies fibre with tone detection and a clear indication of signal transmission direction
Offers versatility as it supports all the common fibres, including 250μm, 900μm, 2mm and 3mm and is able to sense light in bend insensitive fibres
Non-intrusive low insertion loss prevents alarm conditions
Easy operation as it identifies fibre with tone detection and a clear indication of signal transmission direction
Offers versatility as it supports all the common fibres, including 250μm, 900μm, 2mm and 3mm and is able to sense light in bend insensitive fibres
Applications
Measure and locate high-loss splices, connections and breaks
Locate the end of a fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing
Locate the end of a fibre
Find potential sources of error caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing
Certifications
CE certified
FCC certified
WEEE certified
FCC certified
WEEE certified
Specifications
Attribute | Value |
---|---|
Cable Type | Fibre Optic |
Equipment Type | Fibre Optic Test Kit |
Wavelengths | 1700nm |
Maximum Power Measurement | +10dBm |
Battery Type | AAA |
Power Source | Battery |
Includes | Optical Identifier, Set of Adapter Heads (0.25 mm, 0.9 mm, 2 mm, 3 mm), AAA Batteries (2), Instruction Manual, Soft Carry Bag, Sun Shield |
Maximum Operating Temperature | +60°C |
Width | 30.5mm |
Length | 196mm |
Height | 27mm |
Model Number p | FI100 |
Weight | 195g |
Minimum Operating Temperature | -10°C |
