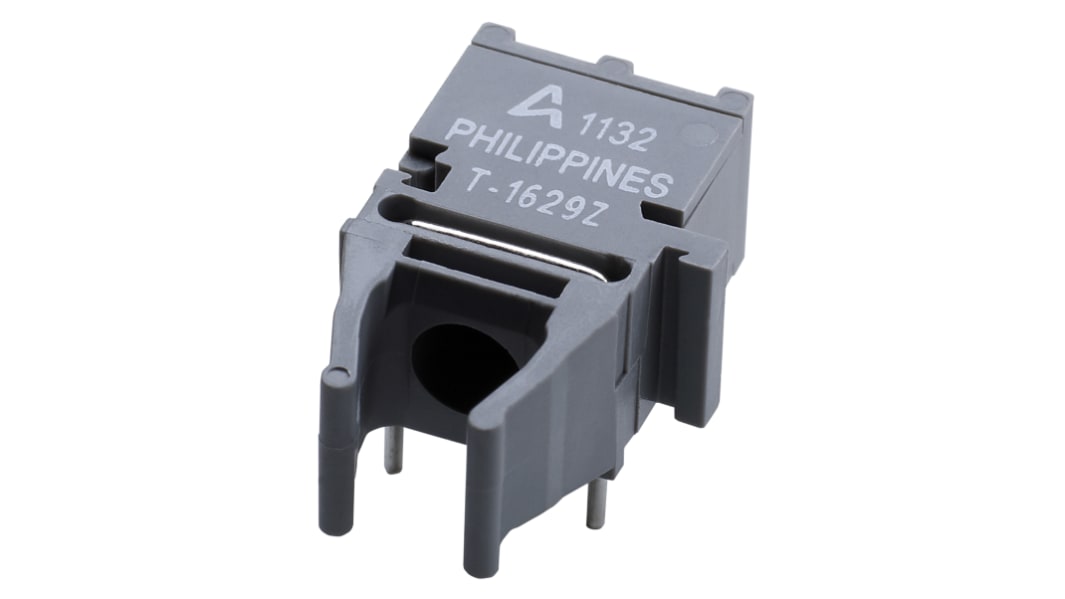

Broadcom AFBR-1629Z Fibre Optic Transceiver, Versatile Link Connector, 50MBd, 685nm 6-Pin

View all Fibre Optic Transceivers
Bulk discount available

Subtotal 5 units (supplied in a tube)*

£74.20

(exc. VAT)

£89.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 417 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
5 - 9£14.84
10 - 99£14.46
100 - 199£10.23
200 +£9.61

*price indicative

Packaging Options:
RS Stock No.:
830-5016P
Mfr. Part No.:
AFBR-1629Z
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Maximum Data Rate

50MBd

Connector Shape

Rectangular

Transmitter Typical Rise Time

5ns

Transmitter Typical Fall Time

5ns

Number of Pins

6

Mounting Type

Through Hole

Dimensions

18.8 x 12.19 x 7.62mm

Connector Type

Versatile Link

Peak Transmitter Wavelength

685nm

Height

7.62mm

Length

18.8mm

Width

12.19mm

Series

Versatile Link

AFBR-16xxZ Series Fibre Optic Transmitters


The AFBR-16xxZ transmitter, from Avago Technologies, makes use of a 650nm light emitting diode (LED) source with integrated optics and driver IC for efficient joining with a 1mm polymer optical fibre (POF). The AFBR-16xxZ input is also compatible with TTL logic families. The 3-pin transmitter is packaged in the Versatile Link housing which allows them to be interlocked (N-plexed together) to optimize space and to provide dual connections with the duplex connectors.

The AFBR-16xxZ transmitter and AFBR-26x4Z/25x9Z receivers operate any signal from DC to:
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)


Fibre Optics, Avago Technologies
