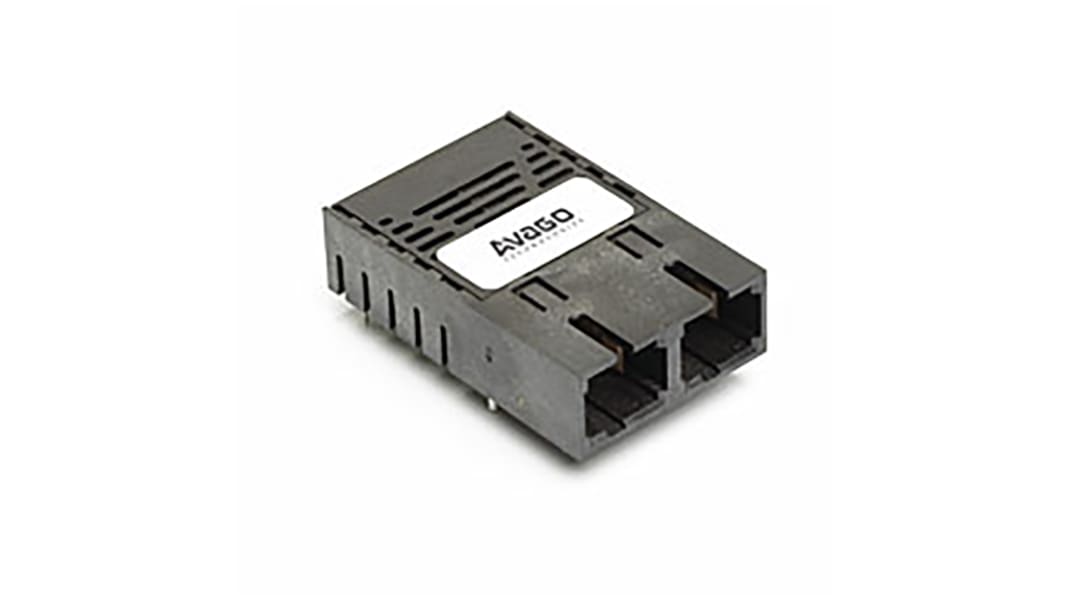

Broadcom AFBR-5803TZ Fibre Optic Transceiver, ST Connector, 125Mbit/s, 1380nm 1380nm 9-Pin SIP

RS Stock No.:: 189-4771
Mfr. Part No.:: AFBR-5803TZ
Brand:: Broadcom

Broadcom AFBR-5803TZ Fibre Optic Transceiver, ST Connector, 125Mbit/s, 1380nm 1380nm 9-Pin SIP

98 In stock - FREE next working day delivery available

Price Each (In a Tube of 10)

£26.45

(exc. VAT)

£31.74

(inc. VAT)

Units	Per unit	Per Tube*
10 - 10	£26.45	£264.50
20 - 40	£25.735	£257.35
50 - 90	£25.059	£250.59
100 - 190	£24.414	£244.14
200 +	£23.805	£238.05

*price indicative

RS Stock No.:: 189-4771
Mfr. Part No.:: AFBR-5803TZ
Brand:: Broadcom

FDDI, 100 Mb/s ATM, and Fast Ethernet Transceivers in Low Cost 1 x 9 Package Style Data Sheet

Attribute	Value
Maximum Data Rate	125Mbit/s
Transmitter Typical Rise Time	1.9ns
Transmitter Typical Fall Time	1.6ns
Receiver Jitter at Maximum Data Rate	2.14ns
Transmitter Jitter at Maximum Data Rate	0.69ns
Number of Pins	9
Mounting Type	Through Hole
Dimensions	42 x 25.4 x 12mm
Connector Type	ST
Peak Transmitter Wavelength	1380nm
Wavelength of Peak Sensitivity	1380nm
Height	12mm
Length	42mm
Series	AFBR
Output Signal Type	ECL, PECL
Package Type	SIP
Width	25.4mm

Broadcom AFBR-5803TZ Fibre Optic Transceiver, ST Connector, 125Mbit/s, 1380nm 1380nm 9-Pin SIP

AFBR-5800Z Series Fast Ethernet Transceivers
