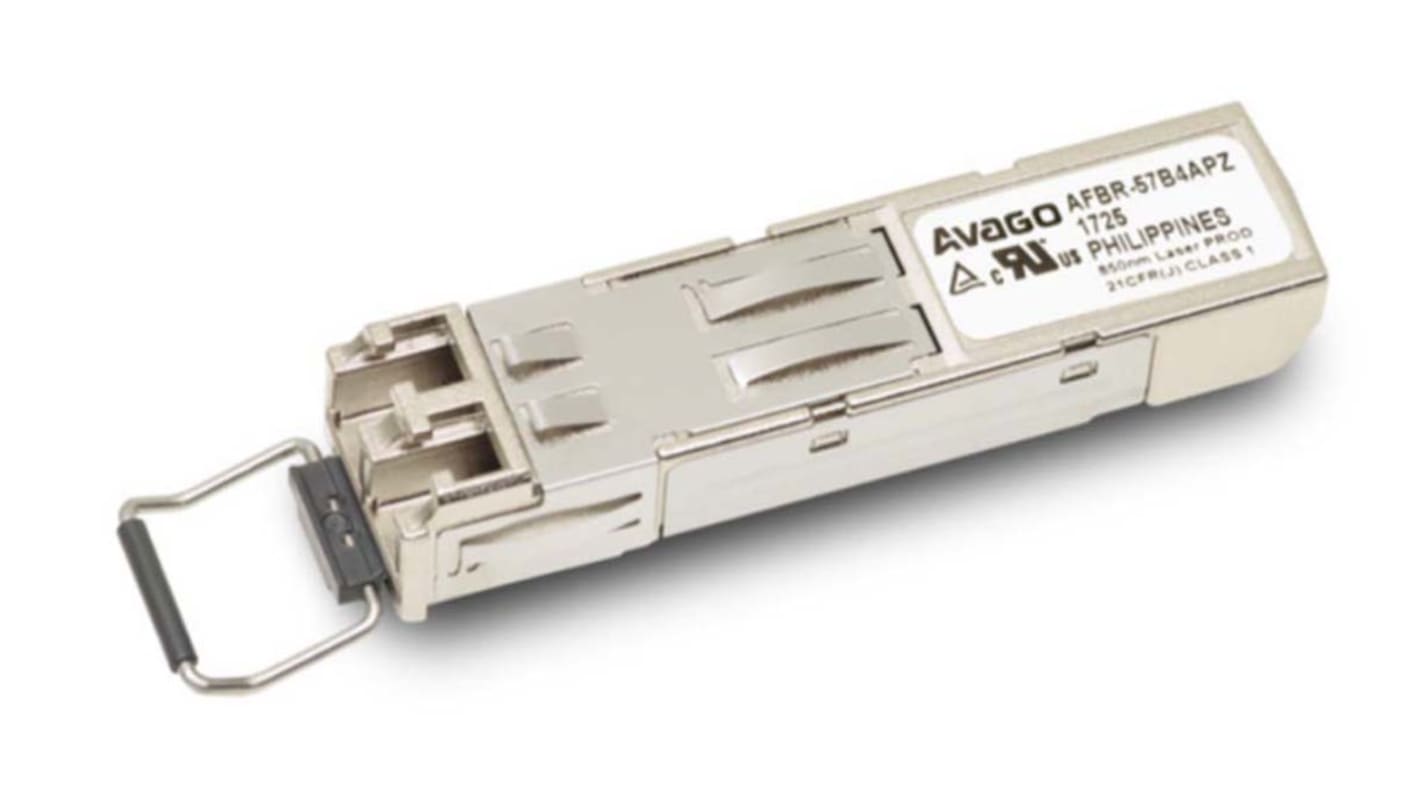

Broadcom AFBR-57B4APZ Fibre Optic Transceiver, SFP Connector, 50 MBd 850 nm 20-Pin
- RS Stock No.:
- 146-4413
- Mfr. Part No.:
- AFBR-57B4APZ
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tray of 10 units)*
£419.90
(exc. VAT)
£503.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 10 - 10 | £41.99 | £419.90 |
| 20 - 40 | £40.646 | £406.46 |
| 50 + | £39.093 | £390.93 |
*price indicative
- RS Stock No.:
- 146-4413
- Mfr. Part No.:
- AFBR-57B4APZ
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Fibre Optic Transceiver | |
| Maximum Data Rate | 50MBd | |
| Connector Shape | Rectangular | |
| Transmitter Typical Rise Time | 0.5ns | |
| Transmitter Typical Fall Time | 0.3ns | |
| Number of Pins | 20 | |
| Mount Type | Surface Mount | |
| Connector Type | SFP | |
| Maximum Data Transmission Distance | 2km | |
| Wavelength of Peak Sensitivity | 850nm | |
| Width | 57.8mm | |
| Height | 13mm | |
| Standards/Approvals | RoHS, UL | |
| Length | 13.8mm | |
| Output Signal Type | LVTTL | |
| Series | AFBR | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Fibre Optic Transceiver | ||
Maximum Data Rate 50MBd | ||
Connector Shape Rectangular | ||
Transmitter Typical Rise Time 0.5ns | ||
Transmitter Typical Fall Time 0.3ns | ||
Number of Pins 20 | ||
Mount Type Surface Mount | ||
Connector Type SFP | ||
Maximum Data Transmission Distance 2km | ||
Wavelength of Peak Sensitivity 850nm | ||
Width 57.8mm | ||
Height 13mm | ||
Standards/Approvals RoHS, UL | ||
Length 13.8mm | ||
Output Signal Type LVTTL | ||
Series AFBR | ||
- COO (Country of Origin):
- PH
The SFP transceiver provides system designers the Ability to implement DC-50 MBaud data transmission over 2 km with (62.5 μm/125 μm) multimode fibers. The transceiver supports LC duplex connector and is lead free, RoHS compliant. Using the 2-wire serial Interface defined in the SFF-8472 MSA, the AFBR‑57B4APZ provides real-time information on module temperature, transmitter supply voltage and receiver average input power.
Data rate support from DC to 50 MBaud
Single 3.3V power supply
Manufactured in an ISO 9001 certified facility
850 nm VCSEL transmitter
Link Distance up to 2 km with 62.5 μm/125 μm multimode Fiber
Low current and low power dissipation
Hot pluggable SFP connector
Compatible with SFP MSA specification
Class 1 FDA IEC60825-1 laser safety compliant
Operating temperature –40°C to +85°C
Excellent EMI and EMC behavior
Integrated 850 nm VCSEL and driver IC with LVTTL input logic transmitter
Integrated PIN diode and digitalizing I
