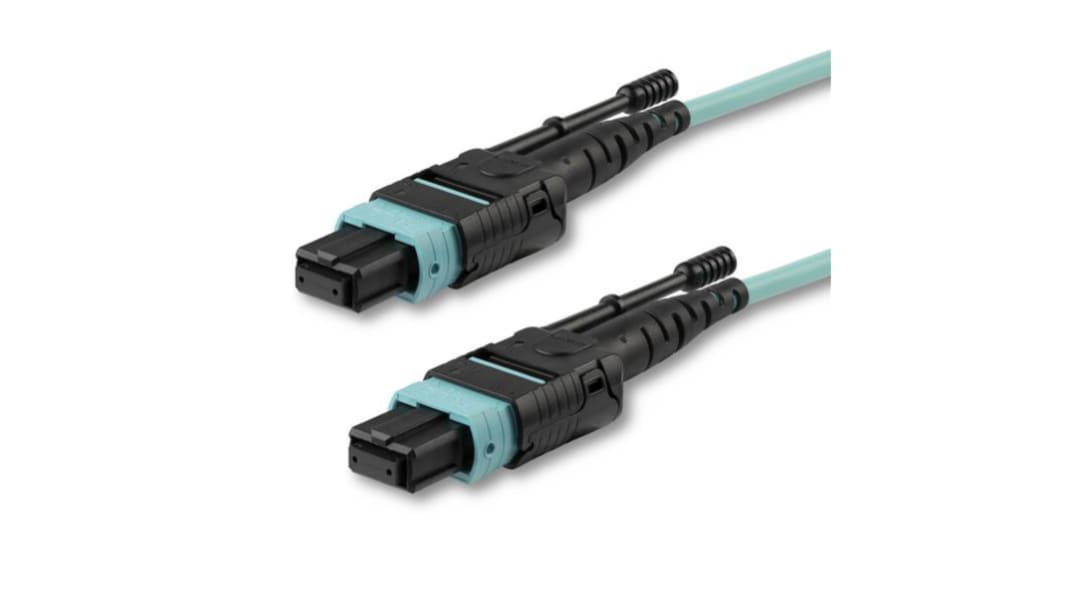

StarTech.com OM3 Straight-Through Fibre Optic Cable, 125 μm, Aqua, 5 m
- RS Stock No.:
- 196-3843
- Mfr. Part No.:
- MPO12PL5M
- Brand:
- StarTech.com
Subtotal (1 unit)*
£334.84
(exc. VAT)
£401.81
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £334.84 |
*price indicative
- RS Stock No.:
- 196-3843
- Mfr. Part No.:
- MPO12PL5M
- Brand:
- StarTech.com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | StarTech.com | |
| Cable Length | 5m | |
| Product Type | Fibre Optic Cable | |
| Core Diameter | 125μm | |
| Number of Cores | 12 | |
| Jacket Colour | Aqua | |
| Fibre Type | OM3 | |
| Sub Type | Straight-Through | |
| Standards/Approvals | CE, REACH | |
| Select all | ||
|---|---|---|
Brand StarTech.com | ||
Cable Length 5m | ||
Product Type Fibre Optic Cable | ||
Core Diameter 125μm | ||
Number of Cores 12 | ||
Jacket Colour Aqua | ||
Fibre Type OM3 | ||
Sub Type Straight-Through | ||
Standards/Approvals CE, REACH | ||
- COO (Country of Origin):
- CN
StarTech Fibre Optic Cable, 5m Cable Length, Aqua Jacket - MPO12PL5M
This Fibre optic cable provides high-density multimode connectivity for data centre and enterprise environments. It links MPO/MTP ports to support parallel optics connections, enabling direct 40Gbps interconnects or breakout to multiple 10Gbps links via a patch panel. The assembly uses OM3 multimode Fibres in a plenum-rated jacket for installations requiring low smoke zero halogen materials and CE compliance.
Features and Benefits:
• 40Gbps support enables high-throughput switch-to-switch links
• 12-core configuration increases port density and rack efficiency
• OFNP plenum jacket reduces smoke and toxic emissions during fire
• Insertion loss below 0.5 dB maintains signal integrity
• Individually tested cables include a return loss report
• 12-core configuration increases port density and rack efficiency
• OFNP plenum jacket reduces smoke and toxic emissions during fire
• Insertion loss below 0.5 dB maintains signal integrity
• Individually tested cables include a return loss report
Applications
• Suitable for 40GBASE-SR4 parallel optics networks
• Ideal for connecting QSFP+ transceivers in data centres
• Used with patch panels to break out to 10Gbps LC pairs
• Can be used for SAN interconnects and storage servers
• Ideal for connecting QSFP+ transceivers in data centres
• Used with patch panels to break out to 10Gbps LC pairs
• Can be used for SAN interconnects and storage servers
What connector type is fitted on this assembly?
It uses MTP/MPO female connectors with PC-polished endfaces.
Which modal bandwidth and wavelengths are supported?
The fibres operate with VCSEL sources at 850 nm and 1300 nm and a modal bandwidth of 2000 MHz·km at 850 nm.
What construction details affect electromagnetic immunity?
The 50/125 μm core/cladding multimode design is inherently immune to EMI.
How is physical size and cable routing described?
The cable has a 3.0 mm outer diameter and a flexible push-pull tab design for connector access.
