Bulgin OS1 Single Mode Fibre Optic Cable, 125 μm Polyolefin, Low Smoke Zero Halogen, Polyvinyl Chloride, Yellow, 10 m
- RS Stock No.:
- 191-8018
- Mfr. Part No.:
- PXF6050CAB
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 5 units)*
£636.04
(exc. VAT)
£763.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 5 | £127.208 | £636.04 |
| 10 - 15 | £120.846 | £604.23 |
| 20 + | £111.942 | £559.71 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£105.00
(exc. VAT)
£126.00
(inc. VAT)
- RS Stock No.:
- 191-8018
- Mfr. Part No.:
- PXF6050CAB
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Fibre Optic Cable | |
| Cable Length | 10m | |
| Core Diameter | 125μm | |
| Number of Cores | 2 | |
| Jacket Colour | Yellow | |
| Fibre Type | OS1 | |
| Minimum Operating Temperature | -25°C | |
| Sub Type | Single Mode | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | YD/T1258.2, RoHS, IEC 61753 1, UL94V 0, EN60529:1992+A2:2013, IP68, IEC60794 2 50, IP69K, ITU T G.657, DIN40050 9, IP66, EN60068 2 52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1, IEC 60793 2 10 | |
| Jacket Material | Polyolefin, Low Smoke Zero Halogen, Polyvinyl Chloride | |
| Series | 6000 | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Fibre Optic Cable | ||
Cable Length 10m | ||
Core Diameter 125μm | ||
Number of Cores 2 | ||
Jacket Colour Yellow | ||
Fibre Type OS1 | ||
Minimum Operating Temperature -25°C | ||
Sub Type Single Mode | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals YD/T1258.2, RoHS, IEC 61753 1, UL94V 0, EN60529:1992+A2:2013, IP68, IEC60794 2 50, IP69K, ITU T G.657, DIN40050 9, IP66, EN60068 2 52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1, IEC 60793 2 10 | ||
Jacket Material Polyolefin, Low Smoke Zero Halogen, Polyvinyl Chloride | ||
Series 6000 | ||
- COO (Country of Origin):
- CN
Cabled Versions: 0S1, 0M1, 0M3
Cable range from 5 to 450M
Diameter over coupling ring 32.0mm
Flex, Flex In-Line and Rear Panel
Secure, proven locking system
30o twist locking. Tamperproof lock prevents accidental un-mating
All plastic body version: UV stable, halogen free Light-weight, self-extinguishing material suitable for long-term outdoor use.
Sealing caps available

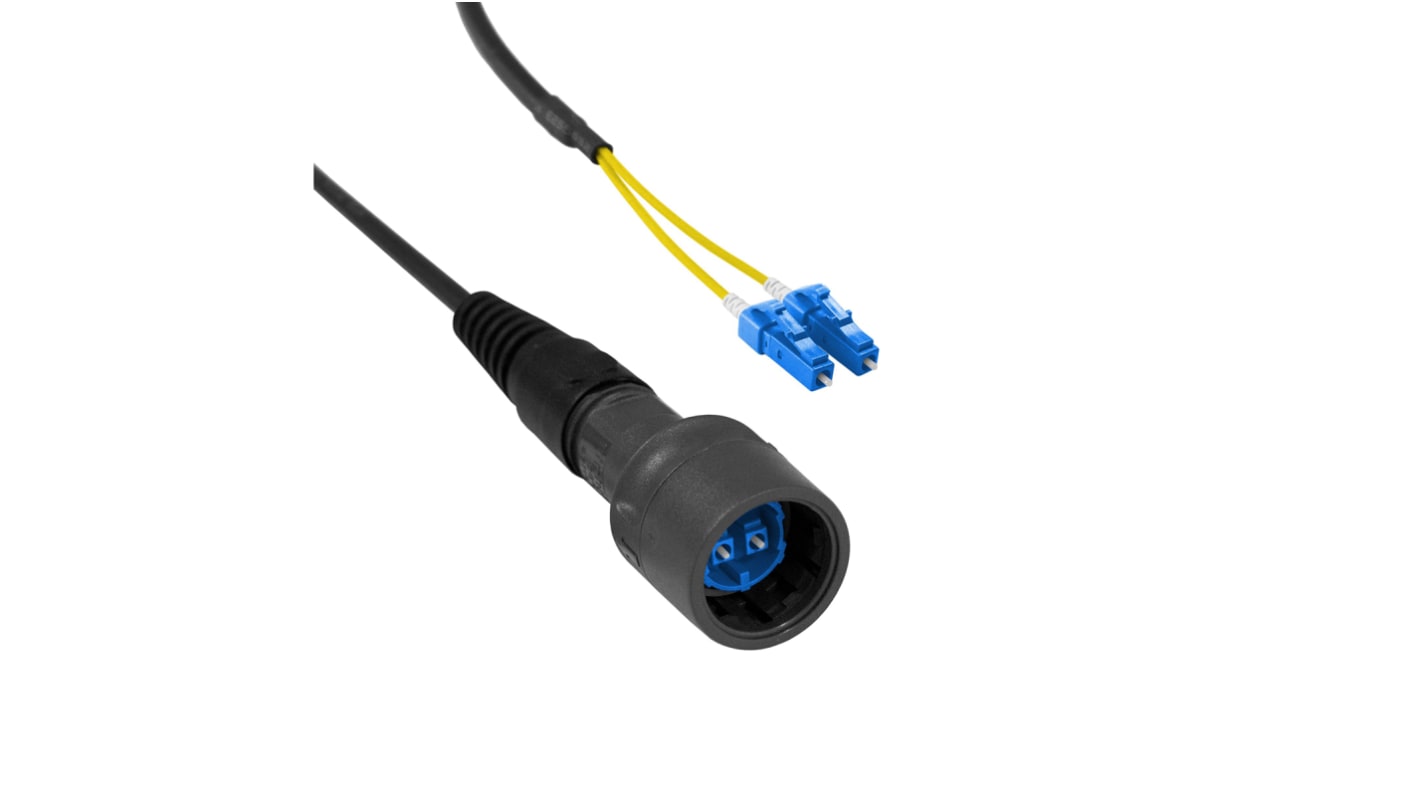

Flex Fiber Connector to LC type Connector
No cable options, or pre-terminated from 5M - 450M available
Duplex LC type fiber connector
Choices of OS1, OM1 and OM3 cables for single or multimode
PXP6081 Sealing Cap available separately
Mate with flex inline fiber connector or panel mount connectors PXF6051, PXF6052
