Huber+Suhner SC Duplex Single Mode G652D Fibre Optic Cable, 0.9mm, Multicoloured, 2m
- RS Stock No.:
- 144-2395
- Mfr. Part No.:
- PS12_SCUS_0000_SM09E_02.0_S0
- Brand:
- Huber+Suhner
Subtotal (1 unit)*
£28.34
(exc. VAT)
£34.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 47 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £28.34 |
*price indicative
- RS Stock No.:
- 144-2395
- Mfr. Part No.:
- PS12_SCUS_0000_SM09E_02.0_S0
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Length | 2m | |
Connector 1 | SC | |
Propagation Mode | Single Mode | |
Terminated/Unterminated | Terminated | |
Core Diameter | 0.9mm | |
Sheath Colour | Multicoloured | |
Cable Construction | Duplex | |
Fibre Type | G652D | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Standards Met | IEC 61300-3-4, IEC 61300-3-6, IEC 61753-1, IEC 61754-4, TIA 604-3, UL 94 V-0 | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Length 2m | ||
Connector 1 SC | ||
Propagation Mode Single Mode | ||
Terminated/Unterminated Terminated | ||
Core Diameter 0.9mm | ||
Sheath Colour Multicoloured | ||
Cable Construction Duplex | ||
Fibre Type G652D | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met IEC 61300-3-4, IEC 61300-3-6, IEC 61753-1, IEC 61754-4, TIA 604-3, UL 94 V-0 | ||
- COO (Country of Origin):
- CN

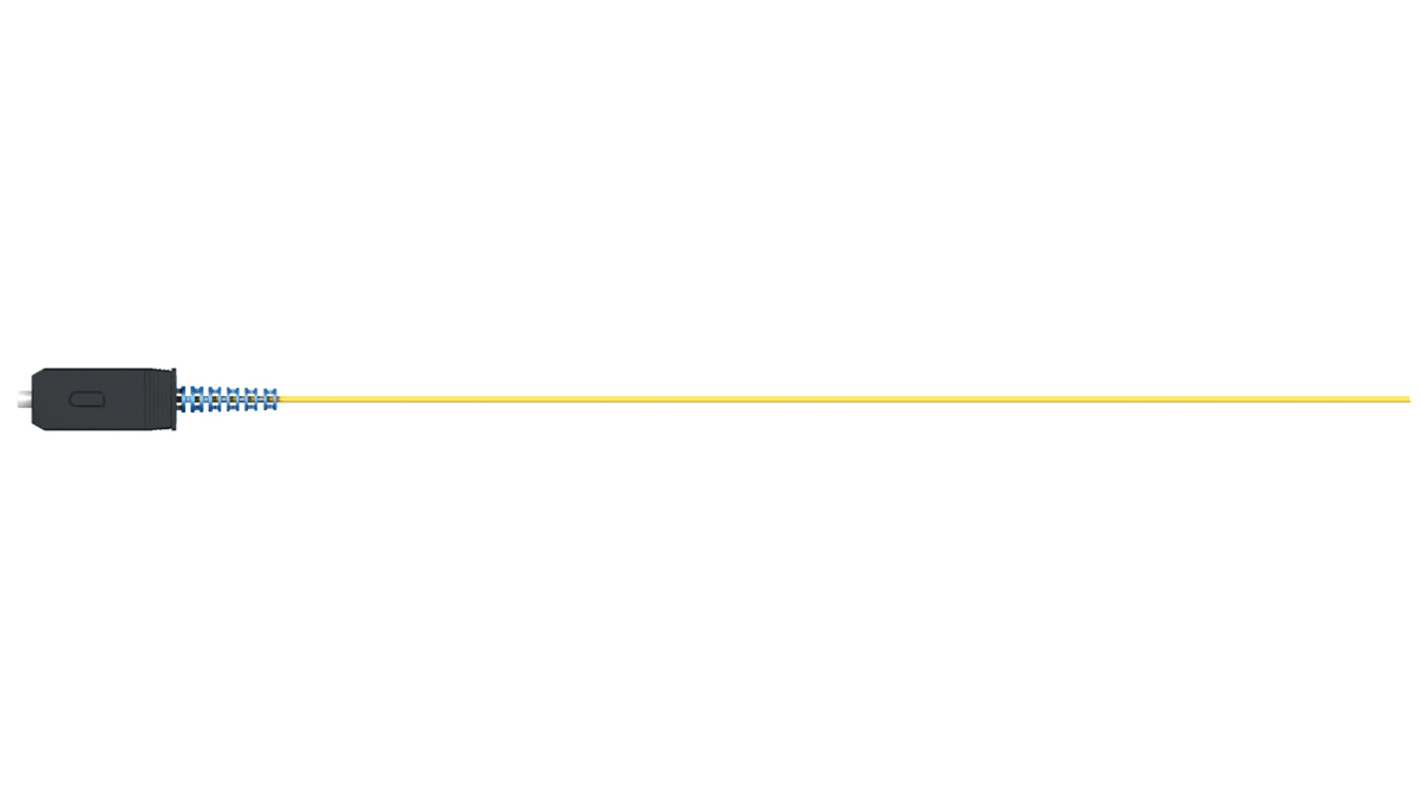

Huber+Suhner SC-HQ Singlemode Pigtail Sets
From Huber+Suhner, a range of premium quality fibre optic pigtail sets with standard SC-HQ connectors. SC compact connectors feature a push-pull latch mechanism and a 2.5 mm ceramic ferrule making them ideal for high density rack and panel applications. The singlemode pigtails have a 0.9 mm cable diameter with an LSZH jacket. Strain relief boots offer extra support ensuring maximum bend radius is not exceeded.
Features and Benefits
Exceptional mechanical and thermal stability
Flexible strain relief
LSZH jacket
Exceptional return and insertion loss
-40°C to + 85°C operating temperature range
Flexible strain relief
LSZH jacket
Exceptional return and insertion loss
-40°C to + 85°C operating temperature range
Applications
Patch Panels
Wall boxes
Telecom
Splice cassettes
Wall boxes
Telecom
Splice cassettes
Huber+Suhner Range
