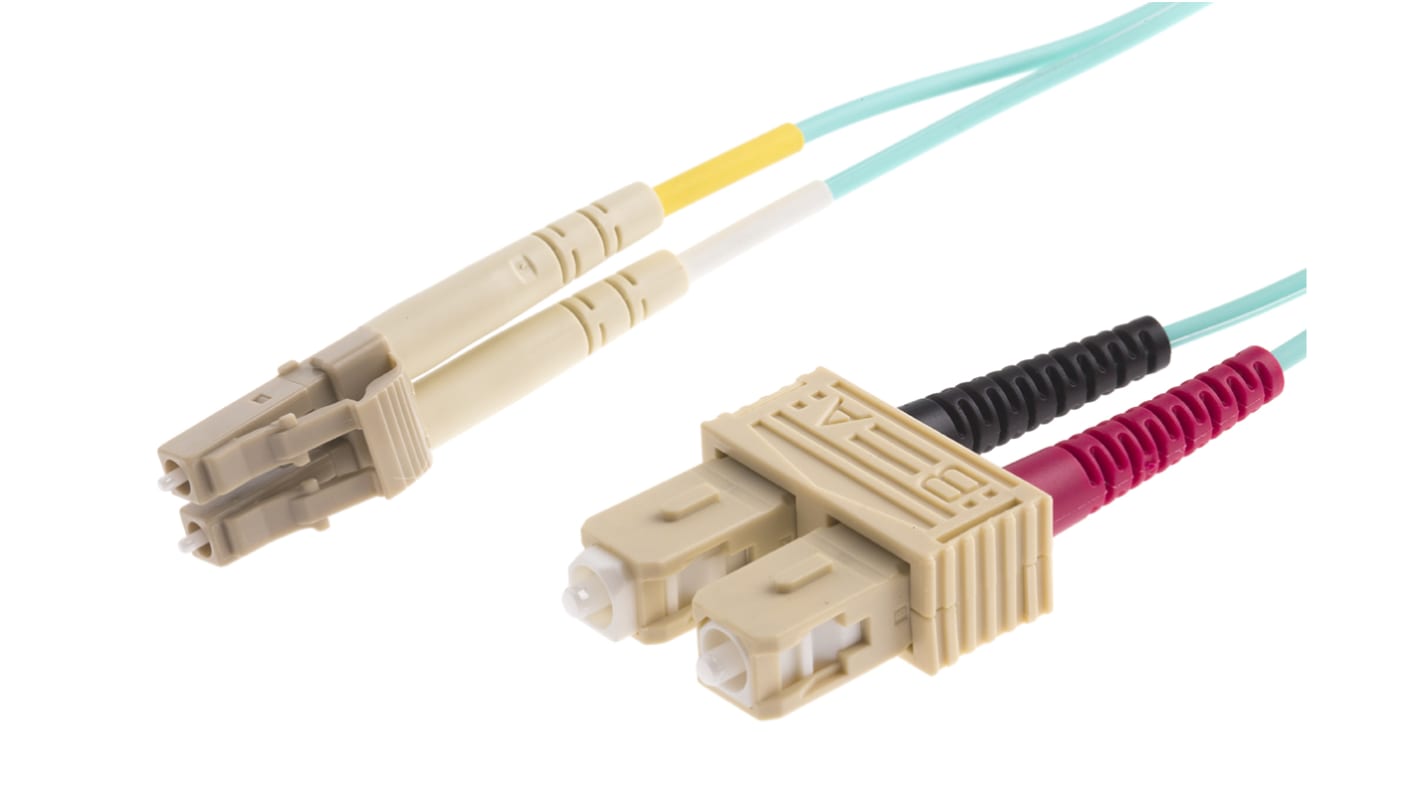

RS PRO LC to SC Duplex Multi Mode OM3 Fibre Optic Cable, 900μm, Blue, 3m
- RS Stock No.:
- 121-3925
- Brand:
- RS PRO
Save 25% when you buy 250 units
Subtotal (1 unit)*
£13.55
(exc. VAT)
£16.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 87 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £13.55 |
10 - 49 | £12.27 |
50 - 99 | £11.56 |
100 - 249 | £10.85 |
250 + | £10.16 |
*price indicative
- RS Stock No.:
- 121-3925
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 3m | |
Connector 1 | LC | |
Propagation Mode | Multi Mode | |
Connector 2 | SC | |
Terminated/Unterminated | Terminated | |
Core Diameter | 900µm | |
Sheath Colour | Blue | |
Cable Construction | Duplex | |
Fibre Type | OM3 | |
Maximum Operating Temperature | +60°C | |
Attenuation | 0.8 dB | |
Sheath Material | Low Smoke Zero Halogen (LSZH) | |
Minimum Operating Temperature | -20°C | |
Standards Met | 2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-20, IEC 61754-4, REACH/SvHC Compliant | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 3m | ||
Connector 1 LC | ||
Propagation Mode Multi Mode | ||
Connector 2 SC | ||
Terminated/Unterminated Terminated | ||
Core Diameter 900µm | ||
Sheath Colour Blue | ||
Cable Construction Duplex | ||
Fibre Type OM3 | ||
Maximum Operating Temperature +60°C | ||
Attenuation 0.8 dB | ||
Sheath Material Low Smoke Zero Halogen (LSZH) | ||
Minimum Operating Temperature -20°C | ||
Standards Met 2011/65/EU, EIA-TIA, IEC, IEC 61300-2-1, IEC 61300-2-12, IEC 61300-2-2, IEC 61300-2-4, IEC 61300-2-5, IEC 61300-3-34, IEC 61300-3-4, IEC 61300-3-6, IEC 61754-20, IEC 61754-4, REACH/SvHC Compliant | ||
- COO (Country of Origin):
- CN
RS Pro Duplex LC-SC OM3 Fibre Optic Patchcords
From the trusted RS Pro brand, a series of LC- SC fibre optic cable assemblies. These superior quality cable assemblies are designed to connect high speed and legacy networks like 10/40/100 Gbit Ethernet and Ethernet. These multimode fibre patch cords have a core fibre size of 50/125 and are terminated with standard LC and SC connectors, providing maximum optical performance. The OM3 duplex cables in this range have LSZH aqua jackets and come in various lengths.
Features and Benefits
Low smoke zero halogen
900um / 600um tight buffer
REACH and RoHS material compliant
High optical performance
900um / 600um tight buffer
REACH and RoHS material compliant
High optical performance
Applications
Data centres
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
Premises cabling in data networks, backbone, riser and horizontal
Supports video, data and voice
