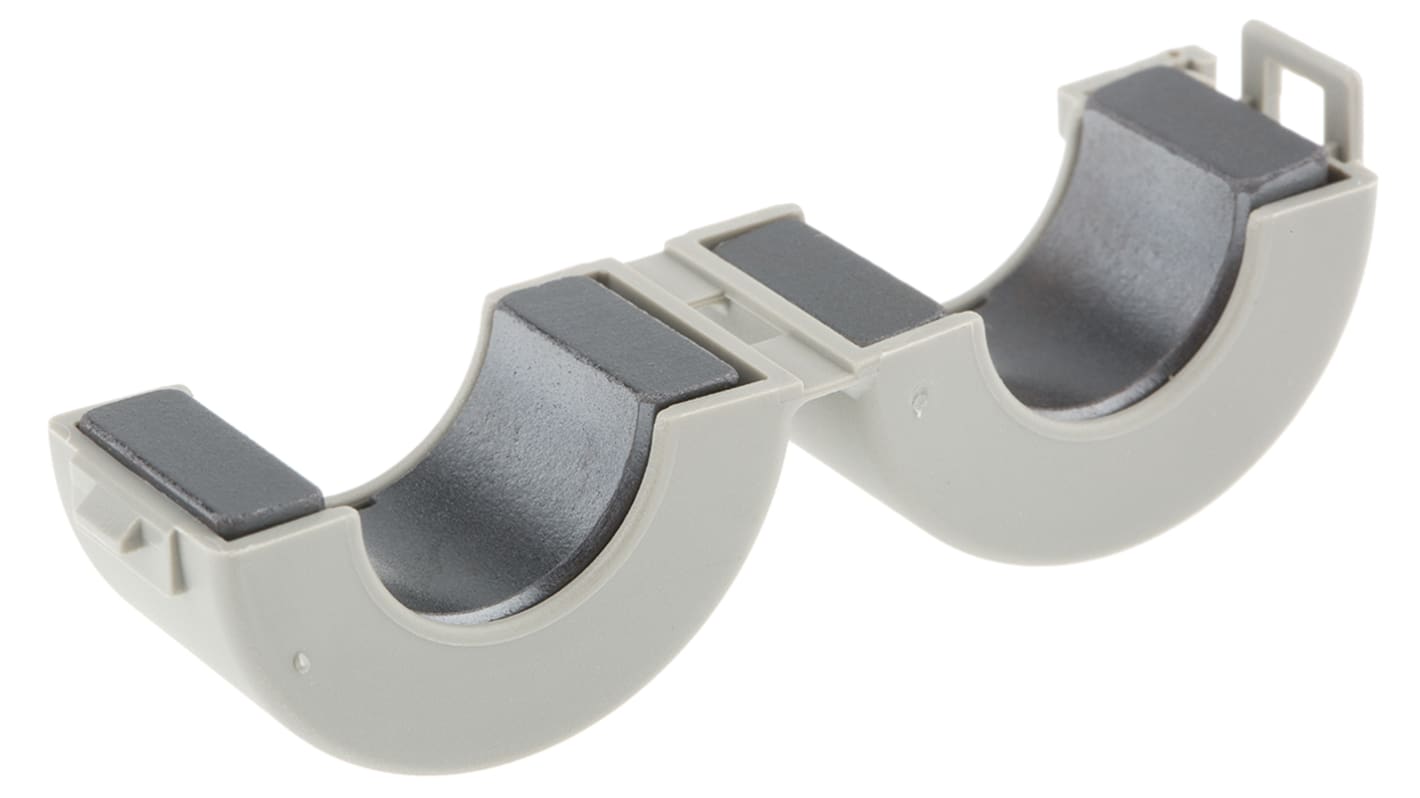

Richco Openable Ferrite Sleeve, 27.8 Dia. x 16.5mm, Apertures: 1, Diameter 14.5mm
- RS Stock No.:
- 222-4422
- Mfr. Part No.:
- MTFC 251512T
- Brand:
- Richco
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 222-4422
- Mfr. Part No.:
- MTFC 251512T
- Brand:
- Richco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Richco | |
| Series | MTFC | |
| Type | Toroid Core | |
| Material | Ferrite | |
| Openable | Yes | |
| Impedance at 100 MHz | 78 | |
| Outer Dimensions | 27.8 Dia. x 16.5mm | |
| Aperture Diameter | 14.5mm | |
| Number of Apertures | 1 | |
| Outer Height | 16.5mm | |
Select all | ||
|---|---|---|
Brand Richco | ||
Series MTFC | ||
Type Toroid Core | ||
Material Ferrite | ||
Openable Yes | ||
Impedance at 100 MHz 78 | ||
Outer Dimensions 27.8 Dia. x 16.5mm | ||
Aperture Diameter 14.5mm | ||
Number of Apertures 1 | ||
Outer Height 16.5mm | ||
- COO (Country of Origin):
- JP
Circular Snap Fixing Cable Ferrites
Ferrite cores designed to reduce electromagnetic interference from being induced or radiated
Rectangular ferrites are suitable for data cables e.g. telephone or signal lines
Circular ferrites are suitable for mains cables e.g. on photocopying machines, printers and other office equipment
Ferrite housed in hinged nylon 66 carrier which is simply snapped around cable
Cable tie (supplied) can be used to prevent ferrite sliding along cable when attached to integral retaining lug
Rectangular ferrites are suitable for data cables e.g. telephone or signal lines
Circular ferrites are suitable for mains cables e.g. on photocopying machines, printers and other office equipment
Ferrite housed in hinged nylon 66 carrier which is simply snapped around cable
Cable tie (supplied) can be used to prevent ferrite sliding along cable when attached to integral retaining lug
Split Ferrite Rings
These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.
