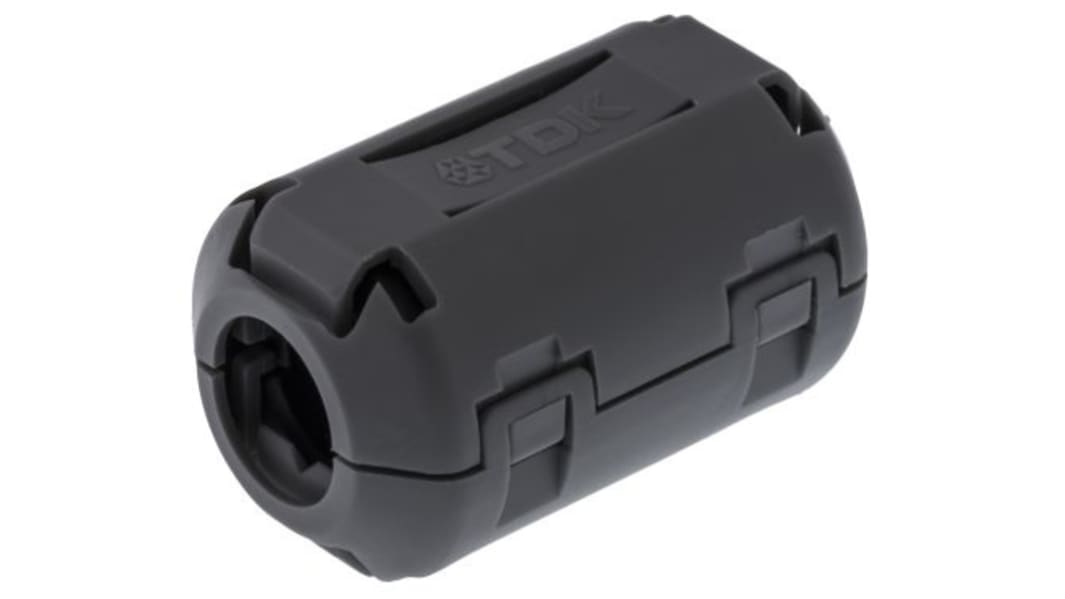

TDK Openable Ferrite Sleeve, 28 Dia. 35mm, For EMC Absorption, Apertures: 1, Diameter 10mm

Subtotal (1 reel of 400 units)*

£495.60

(exc. VAT)

£594.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 400 unit(s) shipping from 28 October 2025
  • Plus 400 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
400 +£1.239£495.60

*price indicative

RS Stock No.:
111-0865
Mfr. Part No.:
ZCAT2235-1030A
Brand:
TDK
Find similar products by selecting one or more attributes.
Select all

Brand

TDK

Series

ZCAT

Type

Bead

Application

EMC Absorption

Material

30 Material

Impedance at 25 MHz

50Ω

Key

No

Openable

Yes

Impedance at 100 MHz

100Ω

Outer Dimensions

28 Dia. 35mm

Aperture Diameter

10mm

Number of Apertures

1

Outer Depth

10mm

Outer Height

20mm

Outer Width

35mm

COO (Country of Origin):
JP

ZCAT Series Snap Fixing Cable Ferrites


ZCAT Series clamp filters for cable applications are constructed from a unique plastic case to ensure simple, convenient installation. They feature a self-holding mechanism to prevent slippage on cables. ZCAT Series has a ferrite core which provides excellent absorption of high-frequency EMC. They are highly effective as a countermeasure against common mode EMC without adverse effect on signal quality, and have a large core size which prevents saturation during large signal surges.

Applications for the ZCAT series include:


• Personal computers
• Word processors
• Monitors
• Hard disk drives
• Digital telephones
• Audio devices
• Electronic musical instruments
• Video games
• Copiers
• Facsimiles


Split Ferrite Rings


These split ferrite cores reduce the electromagnetic interference from being induced in or radiated from data and power cables. High attenuation ratings are achieved with the housing design and the special process steps during the ferrite manufacture. The special snap lock makes the ferrite sleeve suitable for use with a variety of cable diameters and once the split ferrite is locked it cannot be opened accidentally.The outer housing is designed to protect the halves of the core from breakage and ensures simple assembly on to cables that are already installed or which have been fitted with connectors. Fixing to the cable with glue or cable tie is optional. Typical applications for these split ferrite cores include data or power lines used in computer technology, terminals, industrial controllers, medical engineering and office machines.
