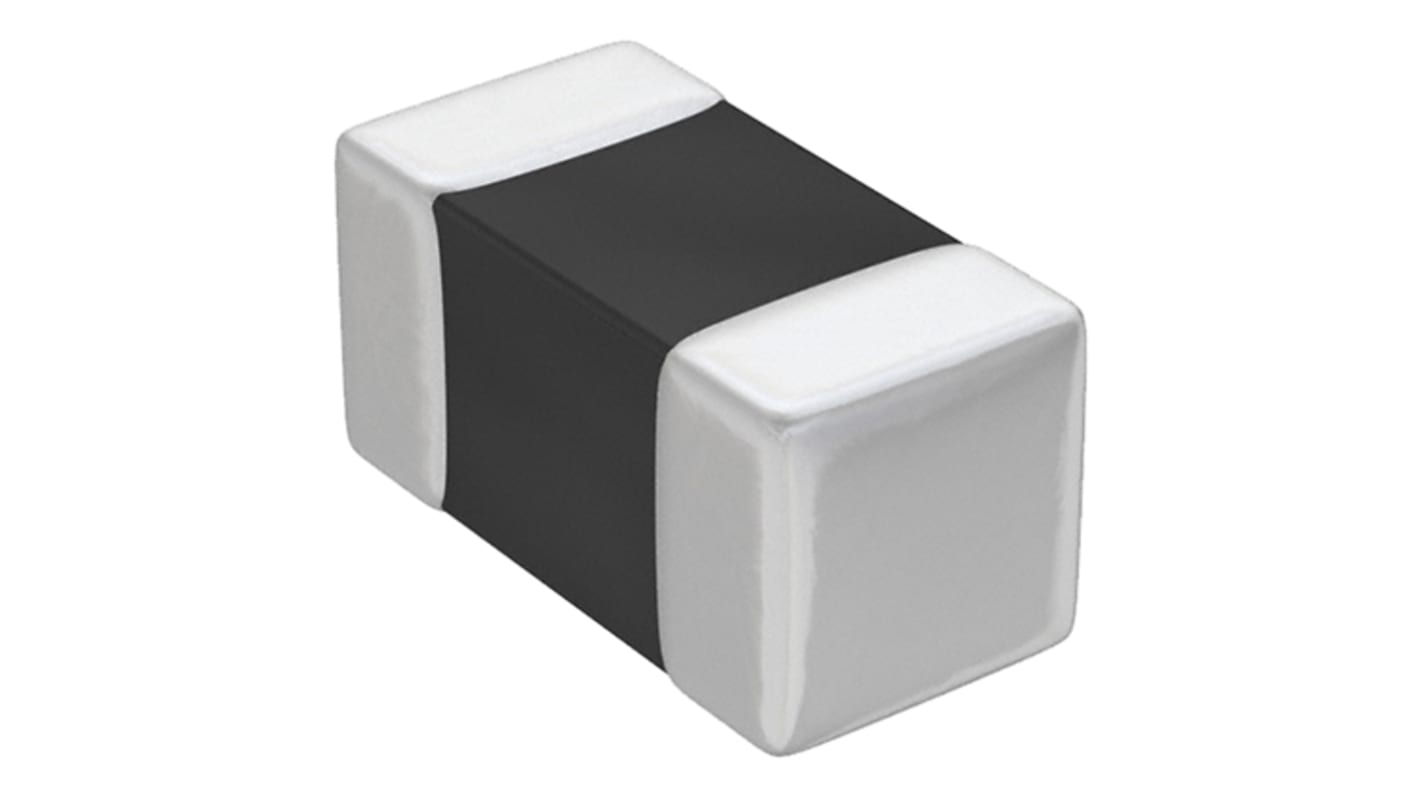

Laird Technologies Ferrite Bead (Chip Bead), 0.6 x 0.3 x 0.3mm (0201 (0603M)), 59Ω impedance at 25 MHz, 120Ω impedance
- RS Stock No.:
- 888-3171
- Mfr. Part No.:
- LI0201C121R-10
- Brand:
- Laird Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 888-3171
- Mfr. Part No.:
- LI0201C121R-10
- Brand:
- Laird Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Laird Technologies | |
| Package Type | 0201 (0603M) | |
| Impedance at 25 MHz | 59Ω | |
| Impedance at 100 MHz | 120Ω | |
| Impedance at 1 GHz | 182Ω | |
| Current Rating | 300mA | |
| Type | Chip Bead | |
| Dimensions | 0.6 x 0.3 x 0.3mm | |
| Length | 0.6mm | |
| Depth | 0.3mm | |
| Height | 0.3mm | |
| Maximum DC Resistance | 700mΩ | |
| Material | Ferrite | |
| Series | LI | |
| Application | Advanced Hand-Held Devices, Bluetooth Headsets, Digital Camcorders and Cameras, GPS, Mobile Phones, MP3 Players, PDAs | |
Select all | ||
|---|---|---|
Brand Laird Technologies | ||
Package Type 0201 (0603M) | ||
Impedance at 25 MHz 59Ω | ||
Impedance at 100 MHz 120Ω | ||
Impedance at 1 GHz 182Ω | ||
Current Rating 300mA | ||
Type Chip Bead | ||
Dimensions 0.6 x 0.3 x 0.3mm | ||
Length 0.6mm | ||
Depth 0.3mm | ||
Height 0.3mm | ||
Maximum DC Resistance 700mΩ | ||
Material Ferrite | ||
Series LI | ||
Application Advanced Hand-Held Devices, Bluetooth Headsets, Digital Camcorders and Cameras, GPS, Mobile Phones, MP3 Players, PDAs | ||
- COO (Country of Origin):
- TW
Laird Ferrite Chip Beads
These Laird ferrite chip beads have been professionally designed to provide cost-effective, noise filtering. The ferrite chip beads have an ultra-compact design and offer space efficiency with superior EMI noise filtering over a wide frequency range of low to several hundred MHz for broad-band signal interfaces and up to GHz ranges for high-frequency signal lines.
Wide frequency range from low to several hundred MHz for broad-band signal interfaces
Frequency range up to GHz for high-frequency signal lines
Ultra-compact design
Frequency range up to GHz for high-frequency signal lines
Ultra-compact design
