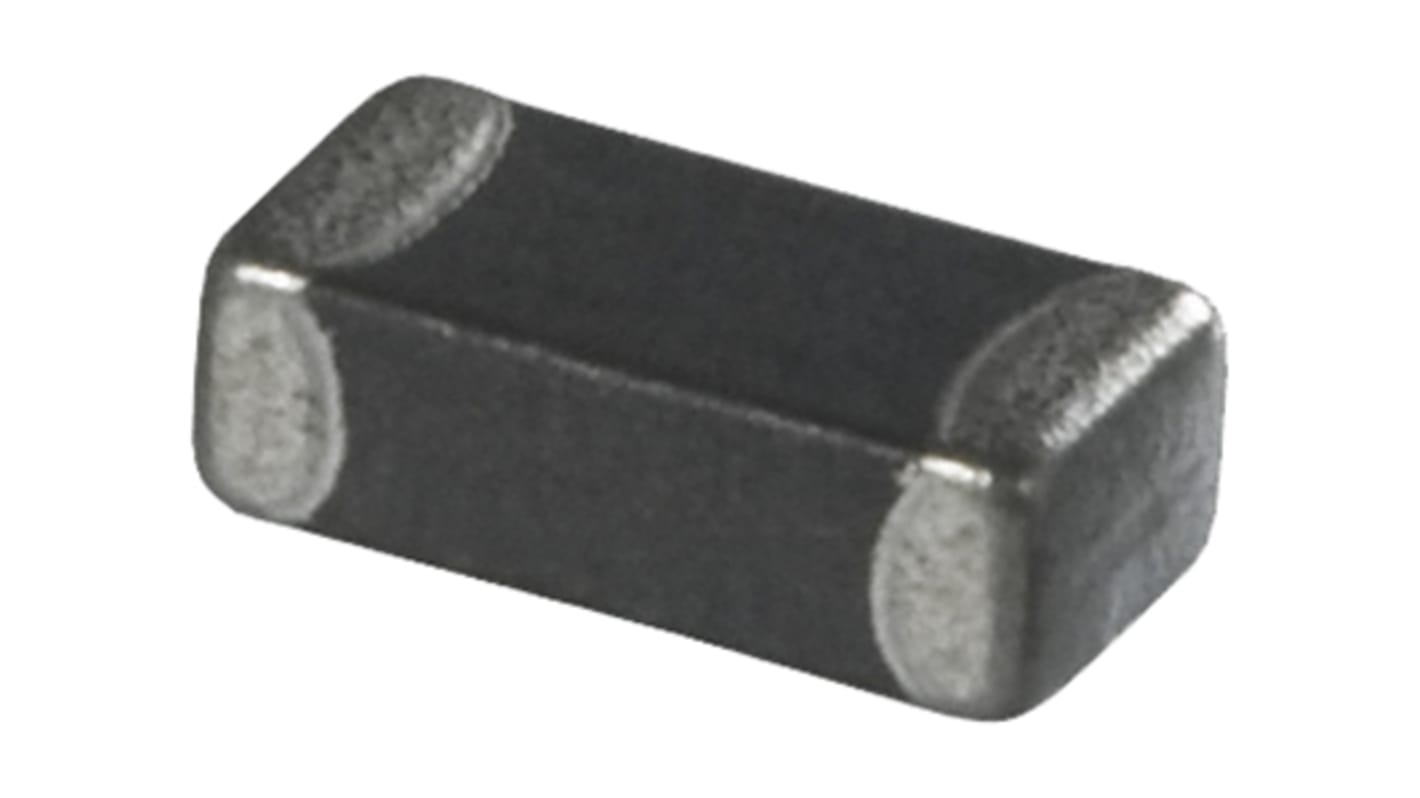

Laird Technologies Ferrite Bead (Chip Bead), 3.2 x 1.6 x 1.1mm (1206 (3216M)), 4.43Ω impedance at 25 MHz, 1.05Ω
- RS Stock No.:
- 888-3162
- Mfr. Part No.:
- LF1206A302R-10
- Brand:
- Laird Technologies
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 888-3162
- Mfr. Part No.:
- LF1206A302R-10
- Brand:
- Laird Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Laird Technologies | |
| Package Type | 1206 (3216M) | |
| Impedance at 25 MHz | 4.43Ω | |
| Impedance at 100 MHz | 1.05Ω | |
| Current Rating | 100mA | |
| Type | Chip Bead | |
| Dimensions | 3.2 x 1.6 x 1.1mm | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Maximum DC Resistance | 1.05mΩ | |
| Height | 1.1mm | |
| Application | Automotive, DSC, Energy and Utilities, General Electronics, Laptop, LCD-TV, Networking Devices, PC, Portable Devices etc., Security | |
| Material | Ferrite | |
| Series | LF | |
Select all | ||
|---|---|---|
Brand Laird Technologies | ||
Package Type 1206 (3216M) | ||
Impedance at 25 MHz 4.43Ω | ||
Impedance at 100 MHz 1.05Ω | ||
Current Rating 100mA | ||
Type Chip Bead | ||
Dimensions 3.2 x 1.6 x 1.1mm | ||
Length 3.2mm | ||
Depth 1.6mm | ||
Maximum DC Resistance 1.05mΩ | ||
Height 1.1mm | ||
Application Automotive, DSC, Energy and Utilities, General Electronics, Laptop, LCD-TV, Networking Devices, PC, Portable Devices etc., Security | ||
Material Ferrite | ||
Series LF | ||
Laird Low Frequency EMI Chip Beads
The Laird range of low frequency EMI chip beads have been professionally designed to provide cost-effective EMI filtering of differential mode noise in surface mount and through-hole PCB applications. The EMI chip beads provide high frequency suppression of common and differential mode EMI noise on groups of data and power lines.
Cost effective
EMI filtering of differential mode noise in surface mount and through-hole PCB applications
Multi-line ferrites rated up to 10 amperes per filtered channel
Compact, rugged design
EMI filtering of differential mode noise in surface mount and through-hole PCB applications
Multi-line ferrites rated up to 10 amperes per filtered channel
Compact, rugged design
