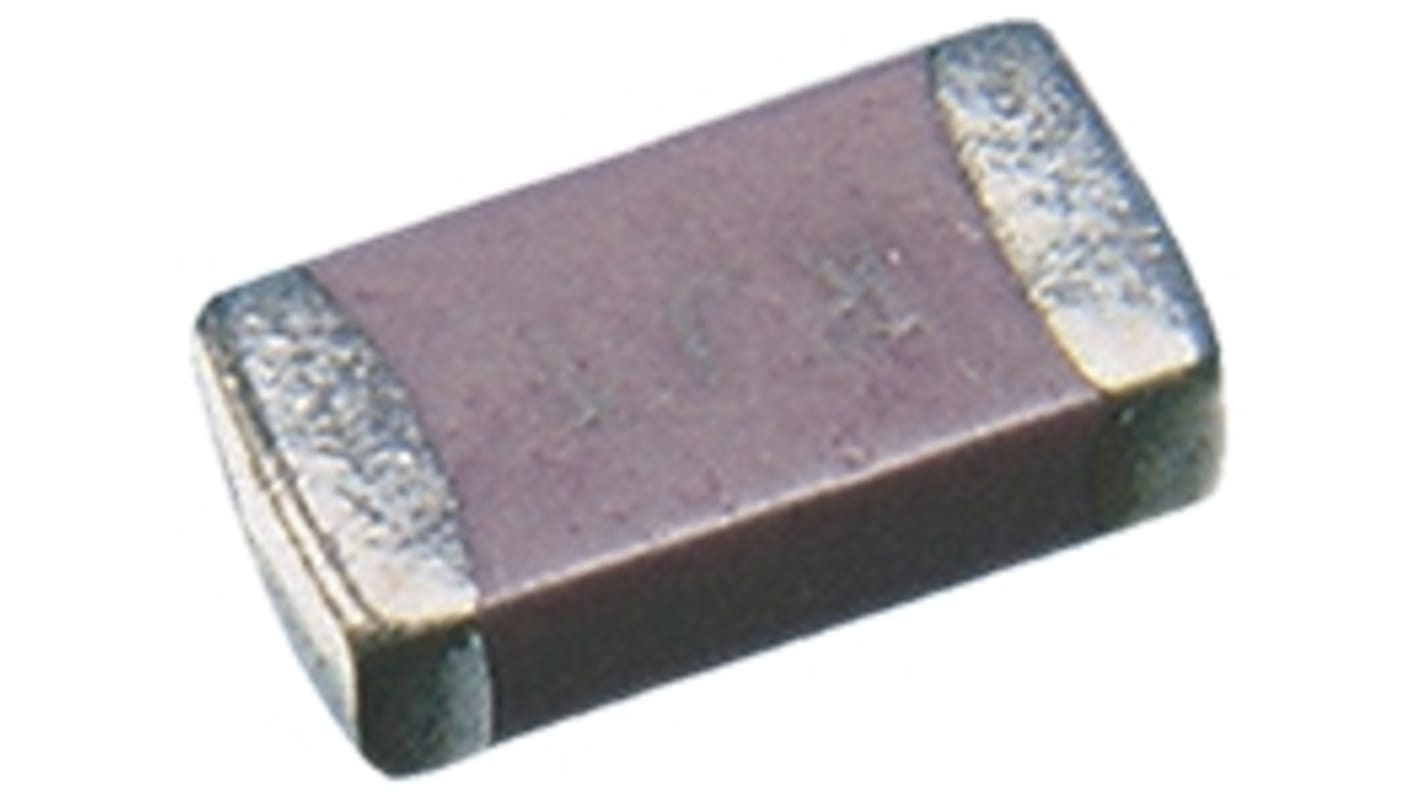

Murata Ferrite Bead 800 μm (Chip) (0603) (Chip Ferrite Bead), 220 Ω impedance at 100 MHz
- RS Stock No.:
- 811-9792
- Mfr. Part No.:
- BLM18BD221SN1D
- Brand:
- Murata
Get a bulk buy discount
Add 1000 more to save £6.00
View bulk pricing optionsSubtotal (1 bag of 25 units)*
£0.95
(exc. VAT)
£1.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 325 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* | Saving |
|---|---|---|---|
| 25 - 975 | £0.038 | £0.95 | - |
| 1000 - 1975 | £0.032 | £0.80 | £6.00 |
| 2000 - 4975 | £0.029 | £0.73 | £18.00 |
| 5000 - 9975 | £0.026 | £0.65 | £60.00 |
| 10000 + | £0.023 | £0.58 | £150.00 |
*price indicative
- RS Stock No.:
- 811-9792
- Mfr. Part No.:
- BLM18BD221SN1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 0603 | |
| Impedance at 100 MHz | 220Ω | |
| Current Rating | 200mA | |
| Mount Type | Chip | |
| Sub Type | Chip Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 800μm | |
| Standards/Approvals | REACH, RoHS | |
| Length | 1.6mm | |
| Maximum DC Resistance | 450mΩ | |
| Depth | 800μm | |
| Series | BLM18BD | |
| Automotive Standard | No | |
| Application | High Speed Signal Lines, EMI Suppression Filter | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Ferrite Bead | ||
Package Type 0603 | ||
Impedance at 100 MHz 220Ω | ||
Current Rating 200mA | ||
Mount Type Chip | ||
Sub Type Chip Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 800μm | ||
Standards/Approvals REACH, RoHS | ||
Length 1.6mm | ||
Maximum DC Resistance 450mΩ | ||
Depth 800μm | ||
Series BLM18BD | ||
Automotive Standard No | ||
Application High Speed Signal Lines, EMI Suppression Filter | ||
Material Ferrite | ||
SMD 0603 Ferrite Filters- BLM18B Series
These filters are designed to act as resistors to electronic noise frequencies
Limit potential interference
Do not generate distortion
Designed for high-speed data transmission lines
