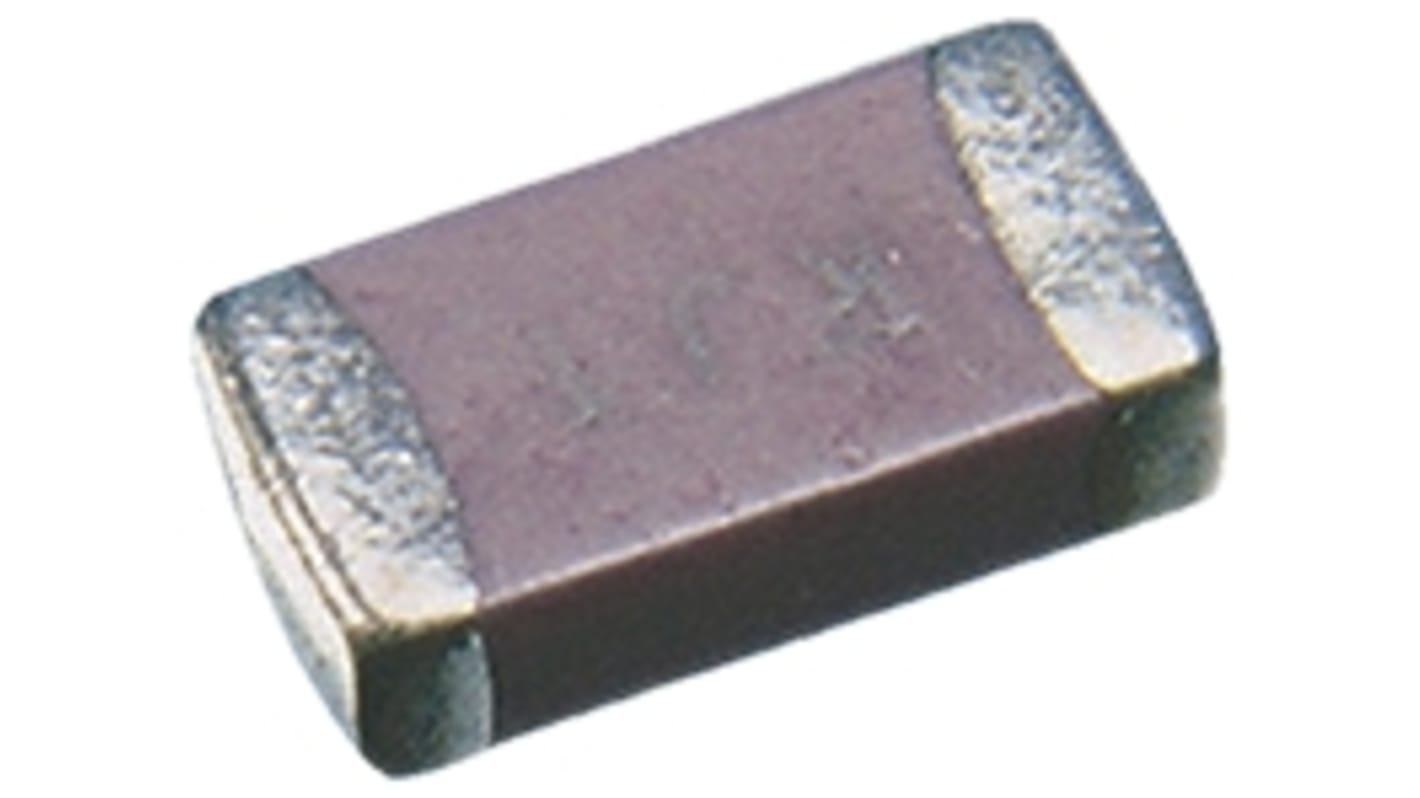

Murata Ferrite Bead 0.8 mm (Surface) (0603) (Chip Ferrite Bead), 10 Ω impedance at 100 MHz
- RS Stock No.:
- 811-9770
- Mfr. Part No.:
- BLM18BB100SN1D
- Brand:
- Murata
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 25 units)*
£0.65
(exc. VAT)
£0.775
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 975 unit(s) shipping from 08 June 2026
- Plus 4,000 unit(s) shipping from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 25 - 475 | £0.026 | £0.65 |
| 500 - 975 | £0.022 | £0.55 |
| 1000 - 2475 | £0.019 | £0.48 |
| 2500 - 4975 | £0.016 | £0.40 |
| 5000 + | £0.016 | £0.40 |
*price indicative
- RS Stock No.:
- 811-9770
- Mfr. Part No.:
- BLM18BB100SN1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 0603 | |
| Impedance at 100 MHz | 10Ω | |
| Current Rating | 500mA | |
| Sub Type | Chip Ferrite Bead | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.8mm | |
| Length | 1.6mm | |
| Maximum DC Resistance | 150mΩ | |
| Standards/Approvals | RoHS, REACH | |
| Depth | 0.8mm | |
| Application | High Speed Signal Lines, EMI Suppression Filter | |
| Material | Ferrite | |
| Automotive Standard | No | |
| Series | BLM18BB | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Ferrite Bead | ||
Package Type 0603 | ||
Impedance at 100 MHz 10Ω | ||
Current Rating 500mA | ||
Sub Type Chip Ferrite Bead | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.8mm | ||
Length 1.6mm | ||
Maximum DC Resistance 150mΩ | ||
Standards/Approvals RoHS, REACH | ||
Depth 0.8mm | ||
Application High Speed Signal Lines, EMI Suppression Filter | ||
Material Ferrite | ||
Automotive Standard No | ||
Series BLM18BB | ||
RoHS Status: Exempt
SMD 0603 Ferrite Filters- BLM18B Series
These filters are designed to act as resistors to electronic noise frequencies
Limit potential interference
Do not generate distortion
Designed for high-speed data transmission lines
