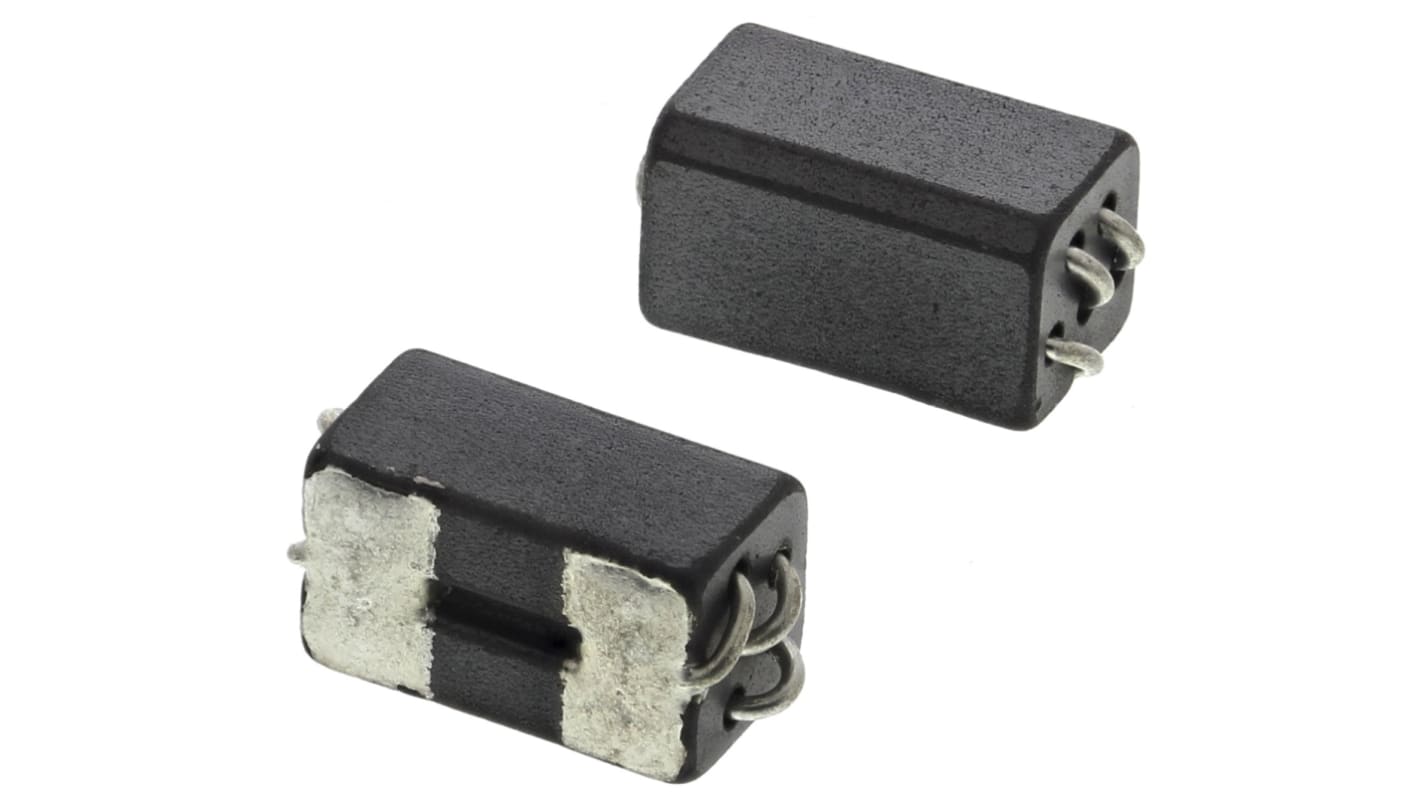

Wurth Elektronik Ferrite Bead, 11 x 4.65 x 5mm (SMD), 425Ω impedance at 25 MHz, 580Ω impedance at 100 MHz
- RS Stock No.:
- 736-2125
- Mfr. Part No.:
- 7427512
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 10 units)*
£11.86
(exc. VAT)
£14.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 90 unit(s) ready to ship
- Plus 60 unit(s) ready to ship from another location
- Plus 1,620 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
10 - 90 | £1.186 | £11.86 |
100 - 990 | £1.062 | £10.62 |
1000 - 2490 | £1.029 | £10.29 |
2500 - 4990 | £0.976 | £9.76 |
5000 + | £0.927 | £9.27 |
*price indicative
- RS Stock No.:
- 736-2125
- Mfr. Part No.:
- 7427512
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Package Type | SMD | |
Impedance at 25 MHz | 425Ω | |
Impedance at 100 MHz | 580Ω | |
Current Rating | 5A | |
Type | Bead | |
Dimensions | 11 x 4.65 x 5mm | |
Length | 11mm | |
Depth | 4.65mm | |
Maximum DC Resistance | 12mΩ | |
Height | 5mm | |
Material | 5W700 | |
Series | WE-SUKW | |
Application | EMI Suppression, RFI Suppression | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Package Type SMD | ||
Impedance at 25 MHz 425Ω | ||
Impedance at 100 MHz 580Ω | ||
Current Rating 5A | ||
Type Bead | ||
Dimensions 11 x 4.65 x 5mm | ||
Length 11mm | ||
Depth 4.65mm | ||
Maximum DC Resistance 12mΩ | ||
Height 5mm | ||
Material 5W700 | ||
Series WE-SUKW | ||
Application EMI Suppression, RFI Suppression | ||
Ferrite Bead SMD 5-Hole WE-SUKW
Maximum Current rating 5A
2.5 turns with impedance @ 25MHz and 100MHz
Low DC resistance with 3 mΩ
Impedance up to 580 Ω
SMD version for an easy installation on the PCB
Special NiSn pad for improved soldering results
Operating Temperature -40 to +125ºC
Applications in protection against radio frequency interferences of components on Printed Curcuit Boards (PCB) of digital devices or power supplies
2.5 turns with impedance @ 25MHz and 100MHz
Low DC resistance with 3 mΩ
Impedance up to 580 Ω
SMD version for an easy installation on the PCB
Special NiSn pad for improved soldering results
Operating Temperature -40 to +125ºC
Applications in protection against radio frequency interferences of components on Printed Curcuit Boards (PCB) of digital devices or power supplies
