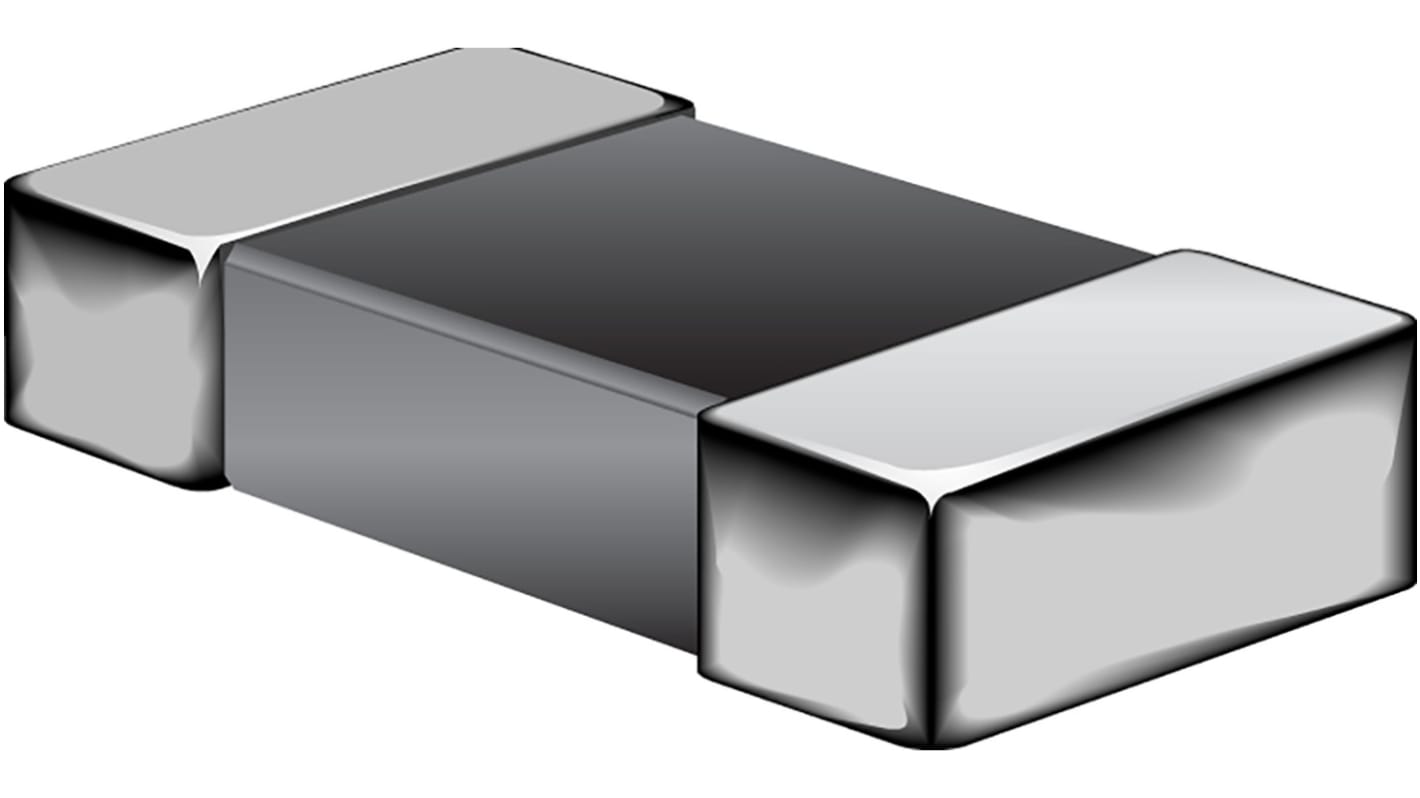

Bourns Ferrite Bead 1.1 mm (Surface) (1206) (EMI Filter & Protection), 230 Ω impedance at 25 MHz, 600 Ω impedance at 100
- RS Stock No.:
- 262-9190
- Mfr. Part No.:
- MU3261-601Y
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£1.17
(exc. VAT)
£1.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.117 | £1.17 |
| 100 - 190 | £0.081 | £0.81 |
| 200 - 490 | £0.074 | £0.74 |
| 500 - 990 | £0.067 | £0.67 |
| 1000 + | £0.059 | £0.59 |
*price indicative
- RS Stock No.:
- 262-9190
- Mfr. Part No.:
- MU3261-601Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 1206 | |
| Impedance at 25 MHz | 230Ω | |
| Impedance at 50 MHz | 400Ω | |
| Packaging | Reel | |
| Impedance at 100 MHz | 600Ω | |
| Impedance at 300 MHz | 230Ω | |
| Current Rating | 400mA | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Depth | 1.8mm | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Length | 3.2mm | |
| Maximum DC Resistance | 0.3Ω | |
| Material | Ferrite | |
| Application | Power Supplies, Ic Power Line, Signal Line | |
| Series | MU | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 1206 | ||
Impedance at 25 MHz 230Ω | ||
Impedance at 50 MHz 400Ω | ||
Packaging Reel | ||
Impedance at 100 MHz 600Ω | ||
Impedance at 300 MHz 230Ω | ||
Current Rating 400mA | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Depth 1.8mm | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Length 3.2mm | ||
Maximum DC Resistance 0.3Ω | ||
Material Ferrite | ||
Application Power Supplies, Ic Power Line, Signal Line | ||
Series MU | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Bourns high impedance chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant
