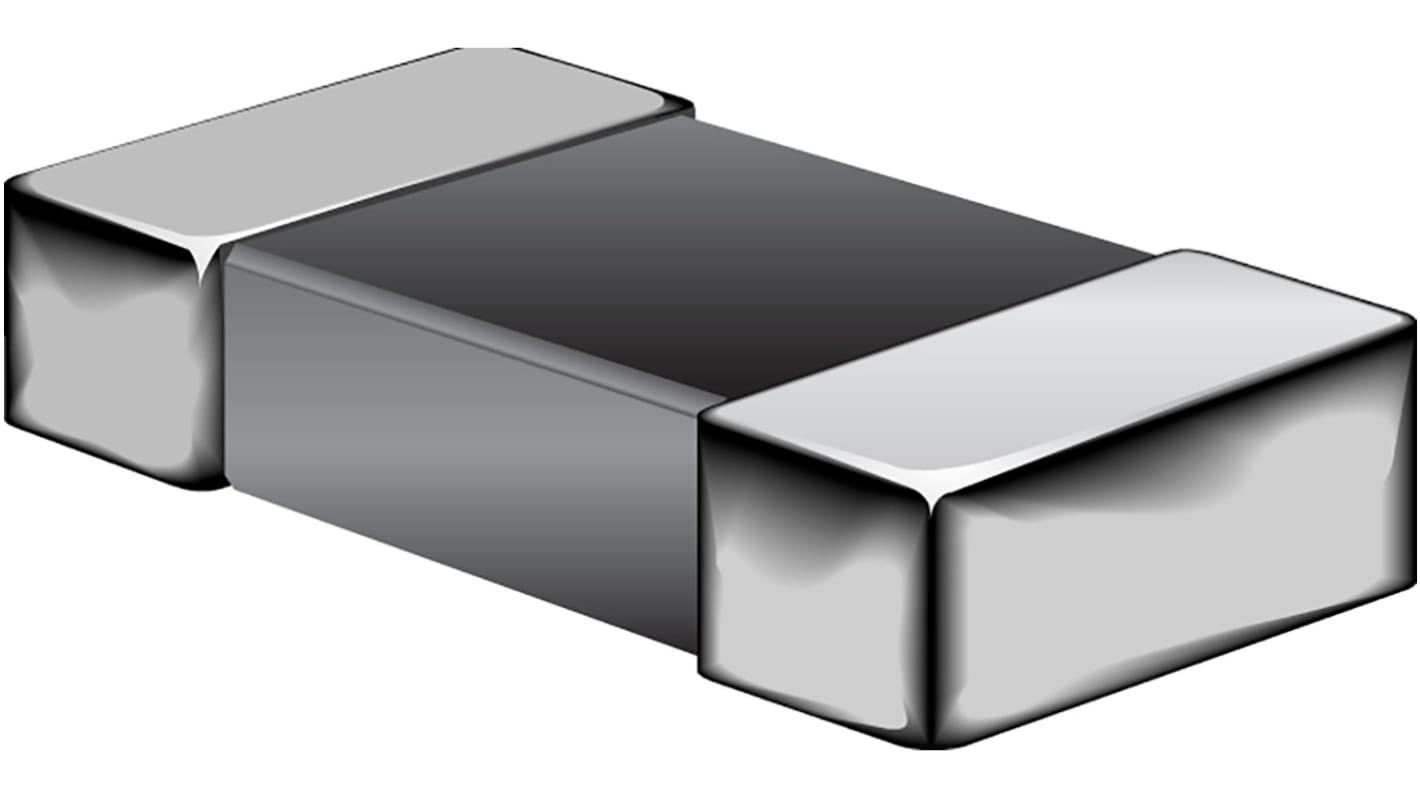

Bourns Ferrite Bead 1.1 mm (Surface) (1206) (EMI Filter & Protection), 16 Ω impedance at 25 MHz, 30 Ω impedance at 100
- RS Stock No.:
- 262-9180
- Mfr. Part No.:
- MU3261-300Y
- Brand:
- Bourns
Subtotal (1 reel of 3000 units)*
£126.00
(exc. VAT)
£150.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.042 | £126.00 |
*price indicative
- RS Stock No.:
- 262-9180
- Mfr. Part No.:
- MU3261-300Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Package Type | 1206 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 16Ω | |
| Impedance at 50 MHz | 23Ω | |
| Impedance at 100 MHz | 30Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 44Ω | |
| Current Rating | 500mA | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Maximum DC Resistance | 0.2Ω | |
| Standards/Approvals | RoHS | |
| Depth | 1.8mm | |
| Height | 1.1mm | |
| Length | 3.2mm | |
| Automotive Standard | No | |
| Application | Ic Power Line, Power Supplies, Signal Line | |
| Series | MU | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Package Type 1206 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 16Ω | ||
Impedance at 50 MHz 23Ω | ||
Impedance at 100 MHz 30Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 44Ω | ||
Current Rating 500mA | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Maximum DC Resistance 0.2Ω | ||
Standards/Approvals RoHS | ||
Depth 1.8mm | ||
Height 1.1mm | ||
Length 3.2mm | ||
Automotive Standard No | ||
Application Ic Power Line, Power Supplies, Signal Line | ||
Series MU | ||
Material Ferrite | ||
- COO (Country of Origin):
- CN
The Bourns high impedance chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant
