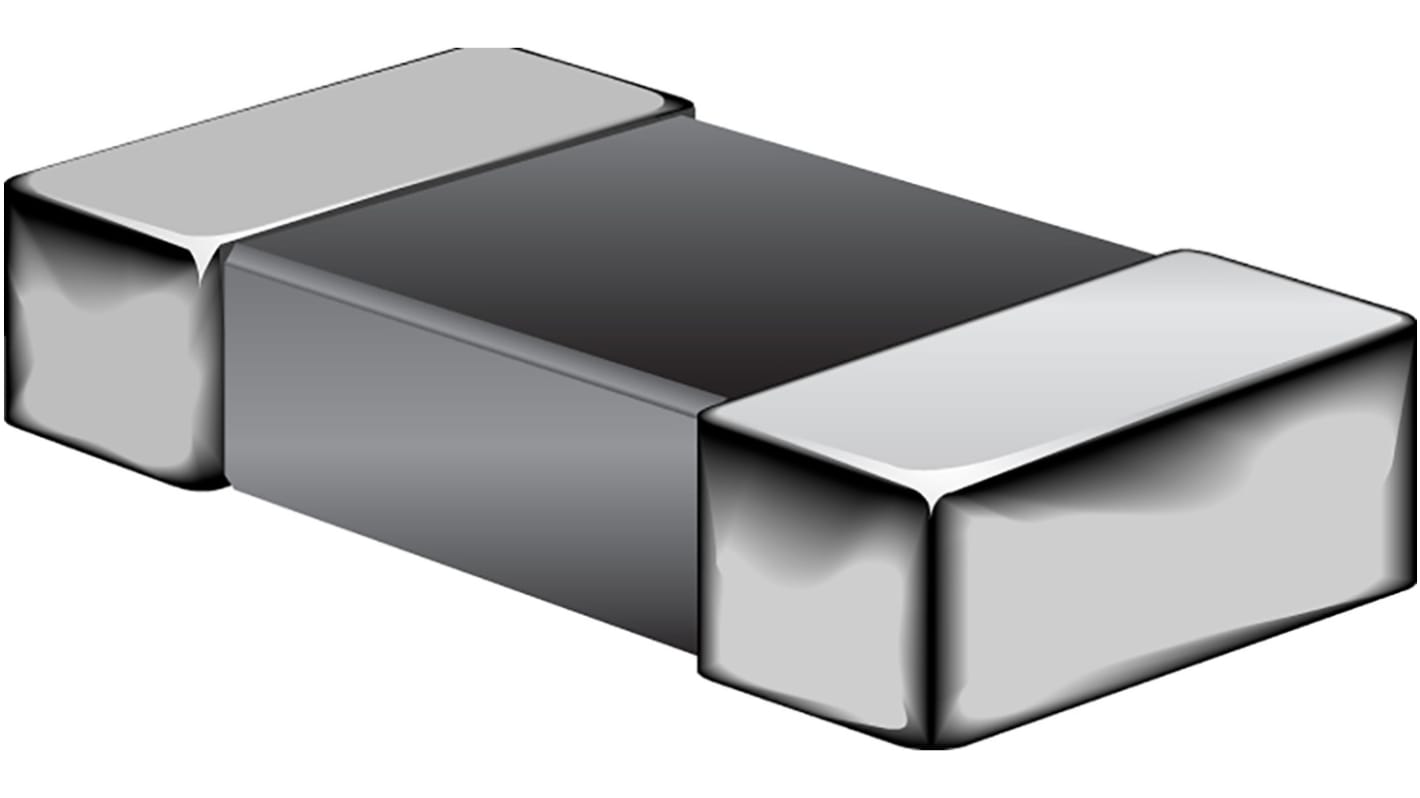

Bourns Ferrite Bead 1.6 mm (Surface) (1806) (EMI Filter & Protection), 35 Ω impedance at 25 MHz, 60 Ω impedance at 100
- RS Stock No.:
- 262-9153
- Mfr. Part No.:
- MH4516-600Y
- Brand:
- Bourns
Subtotal (1 reel of 2000 units)*
£238.00
(exc. VAT)
£286.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.119 | £238.00 |
*price indicative
- RS Stock No.:
- 262-9153
- Mfr. Part No.:
- MH4516-600Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Package Type | 1806 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 35Ω | |
| Impedance at 50 MHz | 45Ω | |
| Impedance at 100 MHz | 60Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 78Ω | |
| Current Rating | 6A | |
| Mount Type | Surface | |
| Sub Type | EMI Filter & Protection | |
| Minimum Operating Temperature | -25°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Length | 4.5mm | |
| Maximum DC Resistance | 10mΩ | |
| Depth | 1.8mm | |
| Height | 1.6mm | |
| Standards/Approvals | RoHS | |
| Application | Ic Power Line, Power Supplies, Signal Line | |
| Series | MH | |
| Automotive Standard | No | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Package Type 1806 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 35Ω | ||
Impedance at 50 MHz 45Ω | ||
Impedance at 100 MHz 60Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 78Ω | ||
Current Rating 6A | ||
Mount Type Surface | ||
Sub Type EMI Filter & Protection | ||
Minimum Operating Temperature -25°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Length 4.5mm | ||
Maximum DC Resistance 10mΩ | ||
Depth 1.8mm | ||
Height 1.6mm | ||
Standards/Approvals RoHS | ||
Application Ic Power Line, Power Supplies, Signal Line | ||
Series MH | ||
Automotive Standard No | ||
Material Ferrite | ||
- COO (Country of Origin):
- CN
The Bourns high current chip ferrite beads has high resistance to heat and humidity. It is used in power supply lines, IC power lines and signal lines.
Resistance to mechanical shock and pressure
Accurate dimensions for automatic surface mounting
RoHS compliant and halogen free
