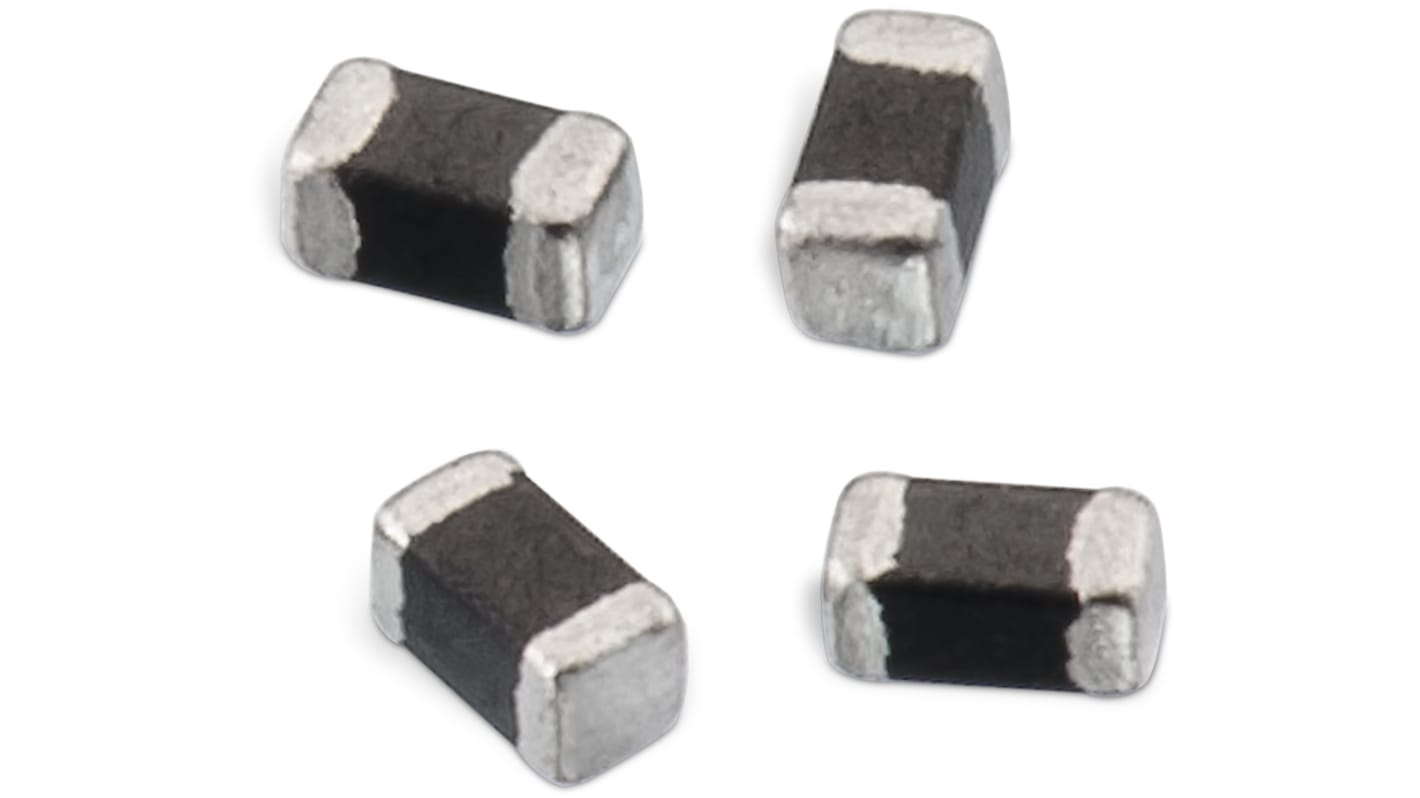

Wurth Elektronik Ferrite Bead 0.5 mm (Surface) (High Current) (Ferrite Bead), 460 Ω impedance at 100 MHz, 300 Ω
- RS Stock No.:
- 245-8298
- Mfr. Part No.:
- 74269243461
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 10000 units)*
£570.00
(exc. VAT)
£680.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.057 | £570.00 |
*price indicative
- RS Stock No.:
- 245-8298
- Mfr. Part No.:
- 74269243461
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | High Current | |
| Product Type | Ferrite Bead | |
| Impedance at 100 MHz | 460Ω | |
| Packaging | Tape & Reel | |
| Impedance at 1 GHz | 300Ω | |
| Current Rating | 500mA | |
| Sub Type | Ferrite Bead | |
| Mount Type | Surface | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.5mm | |
| Depth | 0.5mm | |
| Standards/Approvals | REACH, RoHS, IEC 61249-2-21 | |
| Length | 1mm | |
| Maximum DC Resistance | 0.55Ω | |
| Automotive Standard | No | |
| Application | EMI Suppression | |
| Series | WE-TM SB | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type High Current | ||
Product Type Ferrite Bead | ||
Impedance at 100 MHz 460Ω | ||
Packaging Tape & Reel | ||
Impedance at 1 GHz 300Ω | ||
Current Rating 500mA | ||
Sub Type Ferrite Bead | ||
Mount Type Surface | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.5mm | ||
Depth 0.5mm | ||
Standards/Approvals REACH, RoHS, IEC 61249-2-21 | ||
Length 1mm | ||
Maximum DC Resistance 0.55Ω | ||
Automotive Standard No | ||
Application EMI Suppression | ||
Series WE-TM SB | ||
Material Ferrite | ||
- COO (Country of Origin):
- TW
The Wurth Elektroniks high speed type, tiny multi-layer suppression ferrite bead is perfect for general signal and low power lines, audio/video/clock lines and small handhelds.
Perfect for miniaturization of EMI solutions
Operating temperature of -55 °C to +125 °C
It is a high speed type ferrite bead
