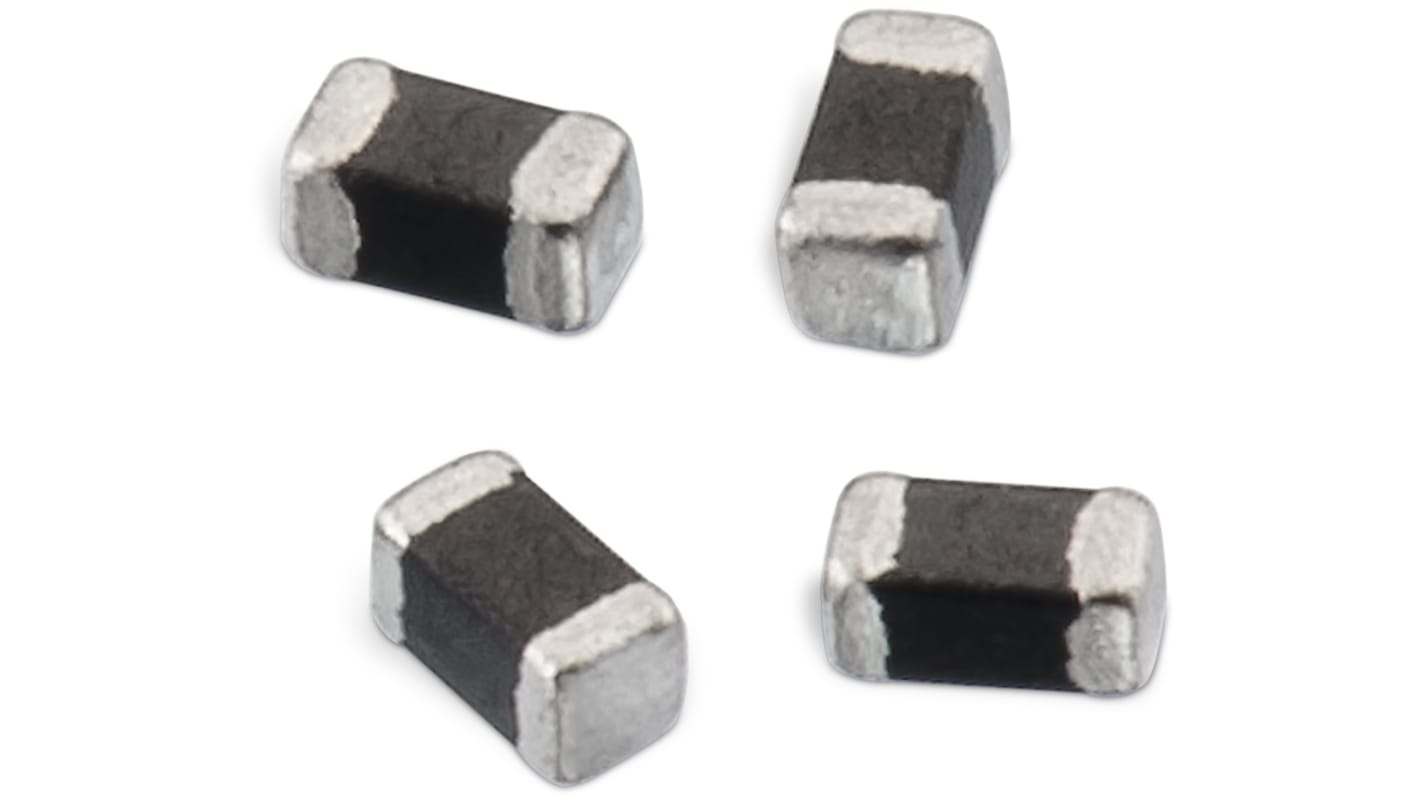

Wurth Elektronik Ferrite Bead 0.5 mm (Surface) (High Current) (Ferrite Bead), 160 Ω impedance at 100 MHz, 250 Ω
- RS Stock No.:
- 245-8294
- Mfr. Part No.:
- 74269242161
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 245-8294
- Mfr. Part No.:
- 74269242161
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | High Current | |
| Product Type | Ferrite Bead | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 160Ω | |
| Impedance at 1 GHz | 250Ω | |
| Mount Type | Surface | |
| Sub Type | Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 0.5mm | |
| Length | 1mm | |
| Height | 0.5mm | |
| Maximum DC Resistance | 0.15Ω | |
| Standards/Approvals | IEC 61249-2-21, REACH, RoHS | |
| Material | Ferrite | |
| Series | WE-TM SB | |
| Application | EMI Suppression | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type High Current | ||
Product Type Ferrite Bead | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 160Ω | ||
Impedance at 1 GHz 250Ω | ||
Mount Type Surface | ||
Sub Type Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 0.5mm | ||
Length 1mm | ||
Height 0.5mm | ||
Maximum DC Resistance 0.15Ω | ||
Standards/Approvals IEC 61249-2-21, REACH, RoHS | ||
Material Ferrite | ||
Series WE-TM SB | ||
Application EMI Suppression | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Wurth Elektroniks high current type, tiny multi-layer suppression ferrite bead is perfect for general signal and low power lines, audio/video/clock lines and small handhelds.
Perfect for miniaturization of EMI solutions
Operating temperature of -55 °C to +125 °C
It is a high current type ferrite bead
