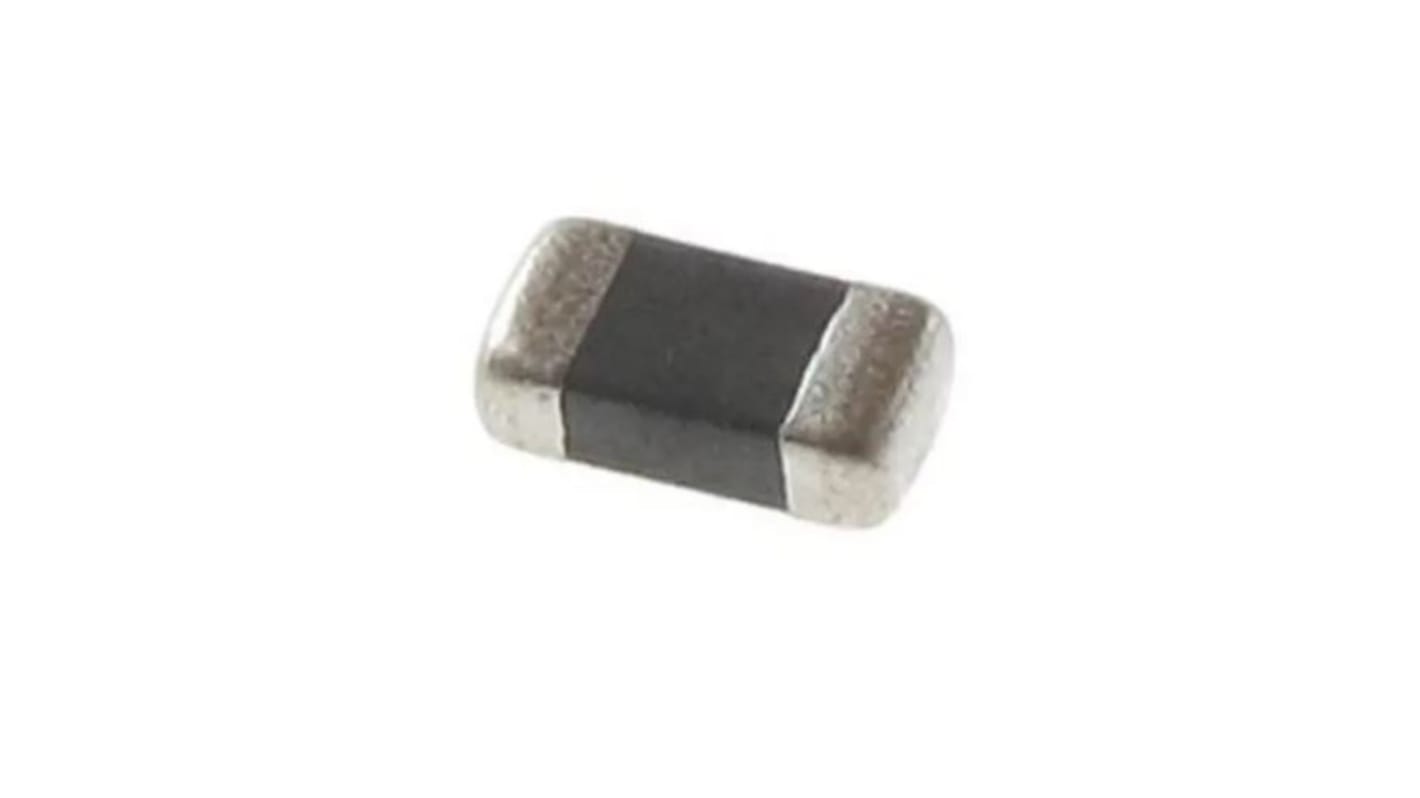

Murata Ferrite Bead 0.85 mm (Surface) (0805) (Chip Ferrite Bead), 249 Ω impedance at 25 MHz, 470 Ω impedance at 100 MHz,
- RS Stock No.:
- 223-4978
- Mfr. Part No.:
- BLM21AG471BH1D
- Brand:
- Murata
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 100 units)*
£3.60
(exc. VAT)
£4.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 400 | £0.036 | £3.60 |
| 500 - 900 | £0.032 | £3.20 |
| 1000 - 1900 | £0.028 | £2.80 |
| 2000 + | £0.027 | £2.70 |
*price indicative
- RS Stock No.:
- 223-4978
- Mfr. Part No.:
- BLM21AG471BH1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Package Type | 0805 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 249Ω | |
| Impedance at 50 MHz | 354Ω | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 470Ω | |
| Impedance at 300 MHz | 430Ω | |
| Impedance at 1 GHz | 165Ω | |
| Current Rating | 10mA | |
| Mount Type | Surface | |
| Sub Type | Chip Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Maximum DC Resistance | 0.18Ω | |
| Depth | 1.25mm | |
| Length | 2mm | |
| Height | 0.85mm | |
| Standards/Approvals | REACH, RoHS | |
| Application | EMI Suppression Filter, General Purpose | |
| Automotive Standard | AEC-Q200 | |
| Material | Ferrite | |
| Series | BLM21 | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Package Type 0805 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 249Ω | ||
Impedance at 50 MHz 354Ω | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 470Ω | ||
Impedance at 300 MHz 430Ω | ||
Impedance at 1 GHz 165Ω | ||
Current Rating 10mA | ||
Mount Type Surface | ||
Sub Type Chip Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Maximum DC Resistance 0.18Ω | ||
Depth 1.25mm | ||
Length 2mm | ||
Height 0.85mm | ||
Standards/Approvals REACH, RoHS | ||
Application EMI Suppression Filter, General Purpose | ||
Automotive Standard AEC-Q200 | ||
Material Ferrite | ||
Series BLM21 | ||
- COO (Country of Origin):
- JP
The Murata BLM21AG series chip ferrite bead is designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted. It is effective in circuits without stable ground lines. It can be used in high current circuits due to its low DC resistance.
Nickel barrier structure of the external electrodes provides excellent solder heat resistance
Operating temperature range from -55 °C to 125 °C
Does not need a connection to ground
