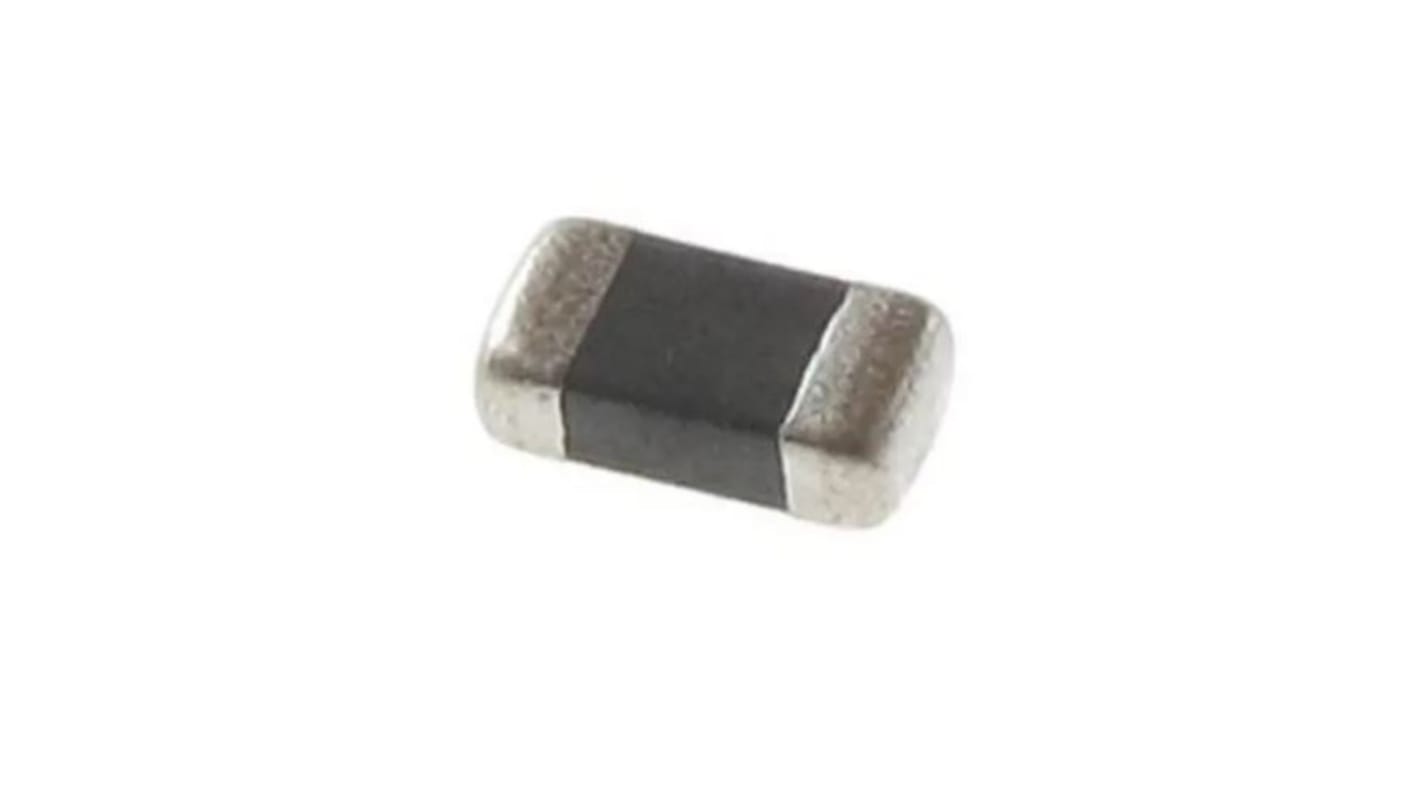

Murata Ferrite Bead 0.5 mm (Surface) (0402) (Chip Ferrite Bead), 152 Ω impedance at 25 MHz, 470 Ω impedance at 100 MHz,
- RS Stock No.:
- 223-4882
- Mfr. Part No.:
- BLM15PE471SH1D
- Brand:
- Murata
Bulk discount available
Subtotal (1 tape of 100 units)*
£9.10
(exc. VAT)
£10.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4,100 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 400 | £0.091 | £9.10 |
| 500 - 900 | £0.076 | £7.60 |
| 1000 - 2400 | £0.065 | £6.50 |
| 2500 - 4900 | £0.056 | £5.60 |
| 5000 + | £0.053 | £5.30 |
*price indicative
- RS Stock No.:
- 223-4882
- Mfr. Part No.:
- BLM15PE471SH1D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Ferrite Bead | |
| Package Type | 0402 | |
| Impedance at 25 MHz | 152Ω | |
| Impedance at 50 MHz | 287Ω | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 470Ω | |
| Impedance at 300 MHz | 569Ω | |
| Impedance at 1 GHz | 267Ω | |
| Current Rating | 450mA | |
| Mount Type | Surface | |
| Sub Type | Chip Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 1mm | |
| Height | 0.5mm | |
| Depth | 0.5mm | |
| Maximum DC Resistance | 350mΩ | |
| Standards/Approvals | REACH, RoHS | |
| Application | DC Power Line, EMI Suppression Filter | |
| Series | BLM15 | |
| Material | Ferrite | |
| Automotive Standard | AEC-Q200 | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Ferrite Bead | ||
Package Type 0402 | ||
Impedance at 25 MHz 152Ω | ||
Impedance at 50 MHz 287Ω | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 470Ω | ||
Impedance at 300 MHz 569Ω | ||
Impedance at 1 GHz 267Ω | ||
Current Rating 450mA | ||
Mount Type Surface | ||
Sub Type Chip Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 1mm | ||
Height 0.5mm | ||
Depth 0.5mm | ||
Maximum DC Resistance 350mΩ | ||
Standards/Approvals REACH, RoHS | ||
Application DC Power Line, EMI Suppression Filter | ||
Series BLM15 | ||
Material Ferrite | ||
Automotive Standard AEC-Q200 | ||
The Murata BLM15PE series chip ferrite bead is designed to function nearly as a resistor at noise frequencies, which greatly reduces the possibility of resonance and leaves signal wave forms undistorted. It is effective in circuits without stable ground lines. It can be used in high current circuits due to its low DC resistance. It has impedance of 470 ohm.
Nickel barrier structure of the external electrodes provides excellent solder heat resistance
Operating temperature range from -55 °C to 125 °C
Does not need a connection to ground
