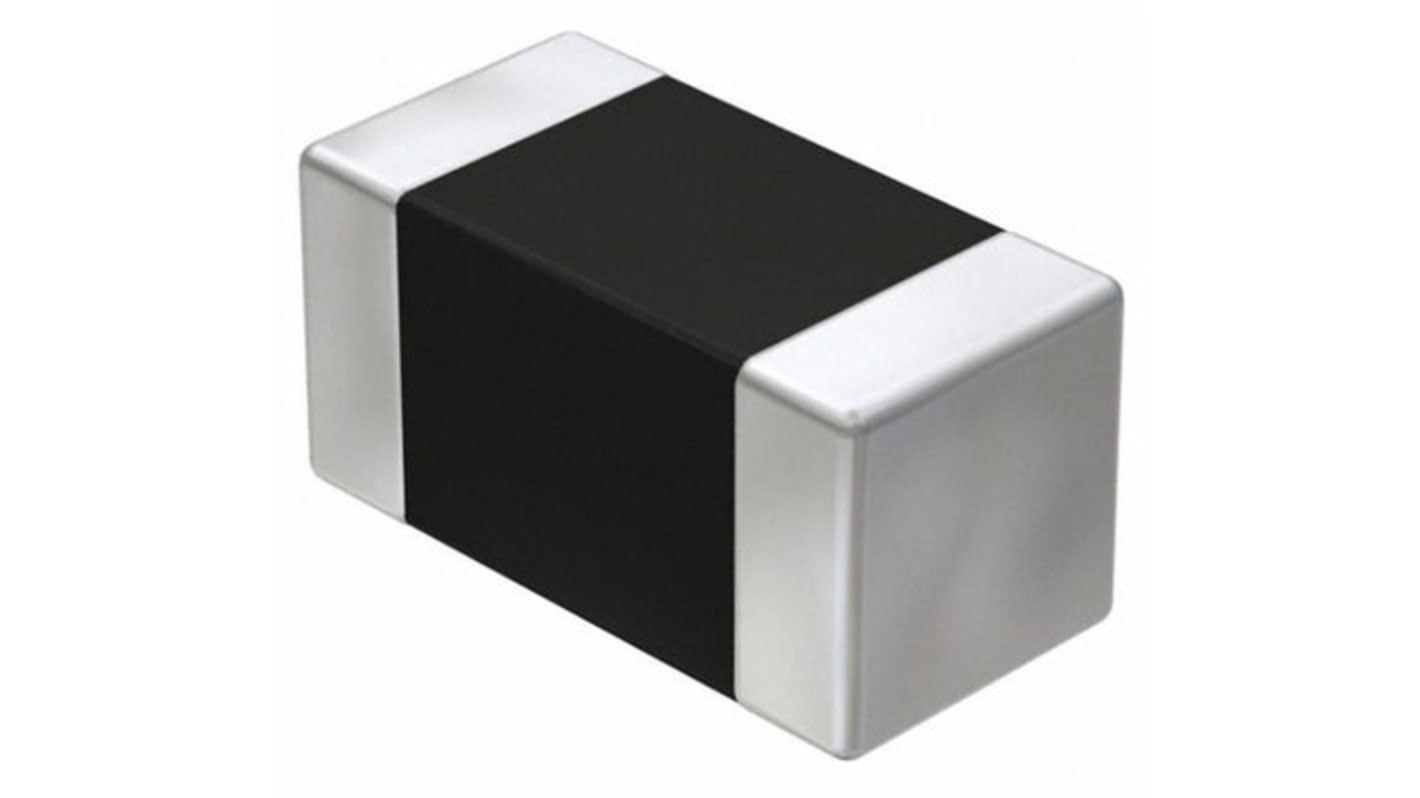

Wurth Elektronik Ferrite Bead 0.8 mm (Surface) (0603) (Wide Band), 1000 Ω impedance at 100 MHz
- RS Stock No.:
- 124-1844P
- Mfr. Part No.:
- 742792662
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal 1000 units (supplied on a reel)*
£84.00
(exc. VAT)
£101.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1000 - 2400 | £0.084 |
| 2500 - 4900 | £0.074 |
| 5000 - 9900 | £0.065 |
| 10000 + | £0.062 |
*price indicative
- RS Stock No.:
- 124-1844P
- Mfr. Part No.:
- 742792662
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Ferrite Bead | |
| Package Type | 0603 | |
| Packaging | Tape & Reel | |
| Impedance at 100 MHz | 1000Ω | |
| Current Rating | 600 mA | |
| Sub Type | Wide Band | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.8mm | |
| Standards/Approvals | IPC/JEDEC J-STD-020D | |
| Length | 1.6mm | |
| Depth | 0.8mm | |
| Maximum DC Resistance | 0.3Ω | |
| Automotive Standard | AEC-Q200 | |
| Series | WE-CBF | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Ferrite Bead | ||
Package Type 0603 | ||
Packaging Tape & Reel | ||
Impedance at 100 MHz 1000Ω | ||
Current Rating 600 mA | ||
Sub Type Wide Band | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.8mm | ||
Standards/Approvals IPC/JEDEC J-STD-020D | ||
Length 1.6mm | ||
Depth 0.8mm | ||
Maximum DC Resistance 0.3Ω | ||
Automotive Standard AEC-Q200 | ||
Series WE-CBF | ||
Material Ferrite | ||
- COO (Country of Origin):
- TW
High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
