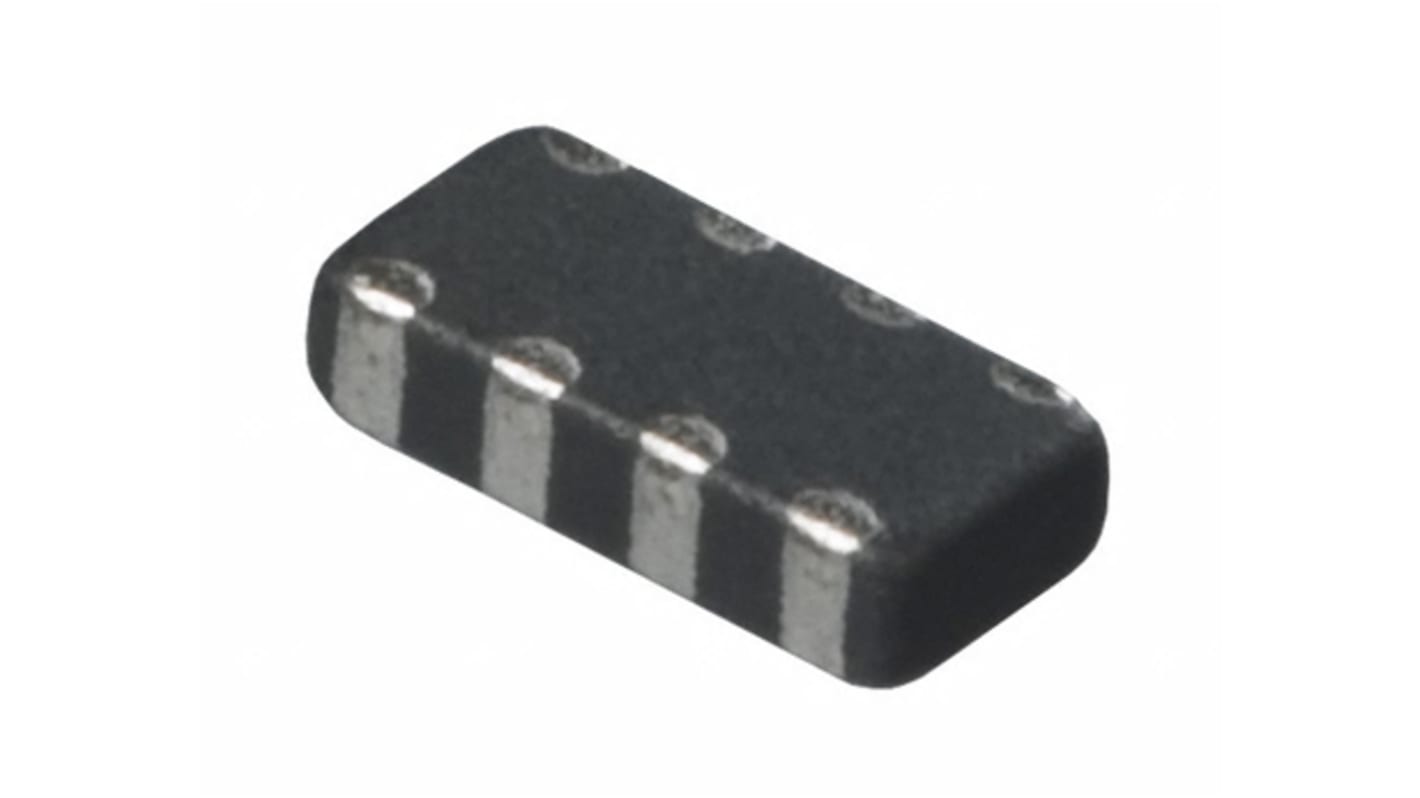

Murata Ferrite Bead (Inductor Type), 3.2 x 1.6 x 0.8mm (1206 (3216M)), 1000Ω impedance at 100 MHz
- RS Stock No.:
- 104-8511
- Mfr. Part No.:
- BLA31BD102SN4D
- Brand:
- Murata
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 104-8511
- Mfr. Part No.:
- BLA31BD102SN4D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Package Type | 1206 (3216M) | |
| Impedance at 100 MHz | 1000Ω | |
| Current Rating | 50mA | |
| Type | Inductor Type | |
| Dimensions | 3.2 x 1.6 x 0.8mm | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Height | 0.8mm | |
| Maximum DC Resistance | 0.55Ω | |
| Series | BLA31B | |
| Material | Ferrite | |
| Application | General Use | |
Select all | ||
|---|---|---|
Brand Murata | ||
Package Type 1206 (3216M) | ||
Impedance at 100 MHz 1000Ω | ||
Current Rating 50mA | ||
Type Inductor Type | ||
Dimensions 3.2 x 1.6 x 0.8mm | ||
Length 3.2mm | ||
Depth 1.6mm | ||
Height 0.8mm | ||
Maximum DC Resistance 0.55Ω | ||
Series BLA31B | ||
Material Ferrite | ||
Application General Use | ||
- COO (Country of Origin):
- JP
Murata 1206 BLA31A/B Series Chip Bead Inductor array
BLA31A/B series are high performance EMI filters constructed from four circuits of ferrite beads. The BLA31A/B series is suitable for EMI suppression in small digital equipment. Two types of impedance characteristics are available within this series, and these ferrite beads offer a broad frequency range of attenuation. A nickel barrier structure of external electrodes enables excellent solder heat resistance. This series is ideal for high density mounting and reflow or flow soldering can be used. These ferrite beads are suitable for general use.
SMT 1206 Inductors (Chokes)
