Amphenol Industrial, PowerLok Plug EV Connector, 300A
- RS Stock No.:
- 239-0348
- Distrelec Article No.:
- 304-12-738
- Mfr. Part No.:
- PL28X-501-95-2-5
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£208.39
(exc. VAT)
£250.07
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £208.39 |
| 5 - 9 | £202.35 |
| 10 - 29 | £195.47 |
| 30 + | £187.55 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 239-0348
- Distrelec Article No.:
- 304-12-738
- Mfr. Part No.:
- PL28X-501-95-2-5
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | EV Connector | |
| Series | PowerLok | |
| Connector Type | Plug | |
| Current | 300A | |
| Number of Contacts | 1 | |
| Wire Size | 0, 3AWG | |
| Operating Voltage | 1kV | |
| Termination Type | Cable | |
| Minimum Operating Temperature | -40°C | |
| Orientation | Right Angle | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL94V-0, RoHS | |
| Better World Product | Yes | |
| IP Rating | IP67, IP69K | |
| Mount Type | Panel | |
| Better World Claim | Renewable Energy Solution | |
| Contact Plating | Zinc Nickel | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type EV Connector | ||
Series PowerLok | ||
Connector Type Plug | ||
Current 300A | ||
Number of Contacts 1 | ||
Wire Size 0, 3AWG | ||
Operating Voltage 1kV | ||
Termination Type Cable | ||
Minimum Operating Temperature -40°C | ||
Orientation Right Angle | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL94V-0, RoHS | ||
Better World Product Yes | ||
IP Rating IP67, IP69K | ||
Mount Type Panel | ||
Better World Claim Renewable Energy Solution | ||
Contact Plating Zinc Nickel | ||
- COO (Country of Origin):
- CN

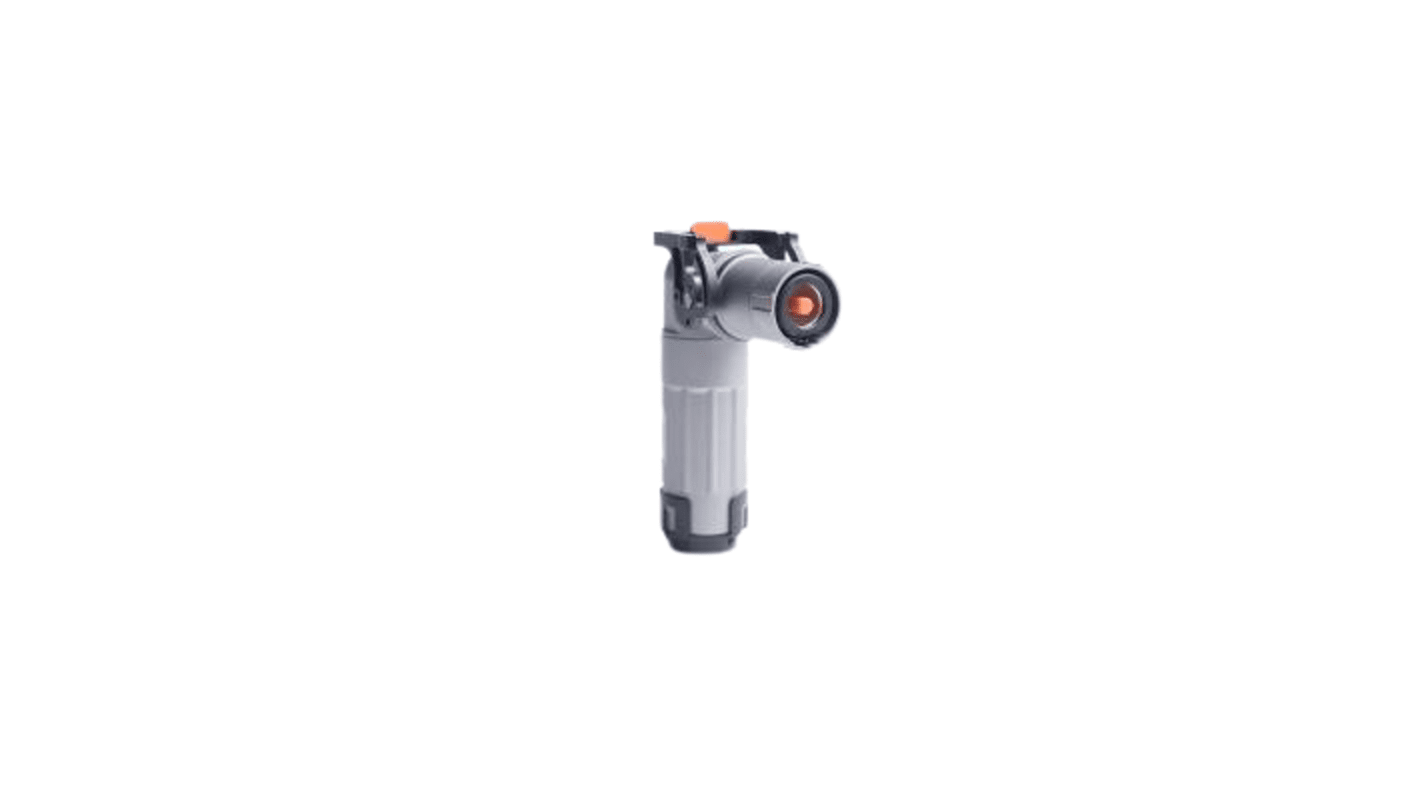

The Amphenol Industrial powerlok series 1 pole right angled female cable plug connector with current rating of 300 A and rated voltage of 1000 V. It is a compact, metal-shell interconnect solution made for electric and hybrid transportation technologies. Equipped with automatic secondary lock, HVIL contacts, shielding and several mechanical coding options which offers maximum safety.
1 pole female cable plug connector, X-coded
For 95 mm² cable & comes in orange colour
High voltage interlock loop
Operating temperature of -40°C to +125°C
