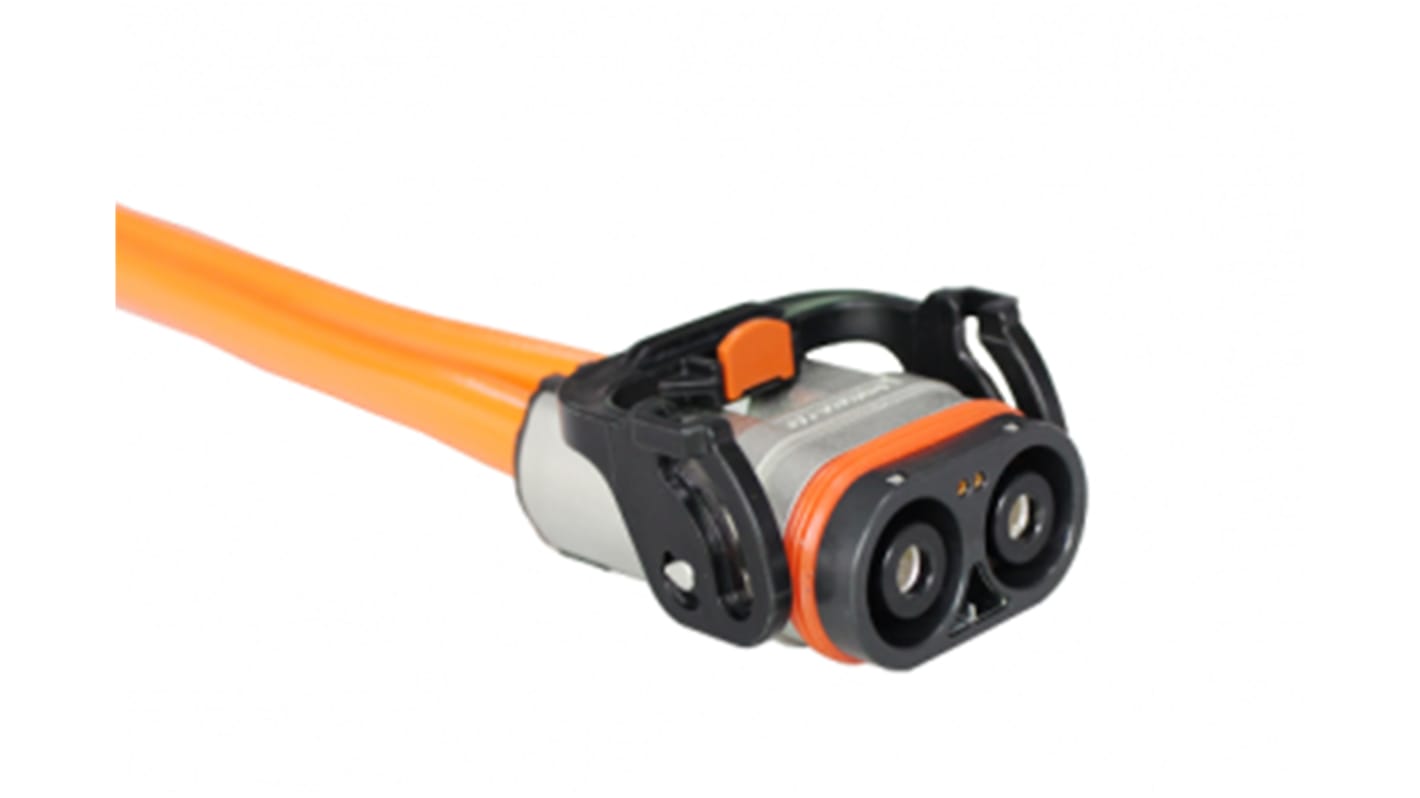

Amphenol Industrial, HVSLS600 EV Connector Socket, 120A
- RS Stock No.:
- 174-1976
- Distrelec Article No.:
- 302-82-501
- Mfr. Part No.:
- HVSLS600062A125
- Brand:
- Amphenol Industrial
Subtotal (1 unit)*
£77.40
(exc. VAT)
£92.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 93 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £77.40 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 174-1976
- Distrelec Article No.:
- 302-82-501
- Mfr. Part No.:
- HVSLS600062A125
- Brand:
- Amphenol Industrial
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Series | HVSLS600 | |
| Number of Rows | 1 | |
| Number of Contacts | 2 | |
| Wire Size | 25 mm² | |
| Current Rating | 120A | |
| Connector Gender | Female | |
| Contact Gender | Male | |
| Orientation | Straight | |
| Termination Method | Crimp | |
| Key Type | A | |
| Better World Product | Yes | |
| Better World Claim | Renewable energy solution | |
| Mounting Type | Cable Mount | |
| Colour | Orange | |
| Width | 65mm | |
| Standards Met | EN 60664-1 | |
| Contact Material | Copper Alloy | |
| Pin Diameter | 6mm | |
| Maximum Operating Temperature | +125°C | |
| Height | 34.3mm | |
| Depth | 77mm | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Series HVSLS600 | ||
Number of Rows 1 | ||
Number of Contacts 2 | ||
Wire Size 25 mm² | ||
Current Rating 120A | ||
Connector Gender Female | ||
Contact Gender Male | ||
Orientation Straight | ||
Termination Method Crimp | ||
Key Type A | ||
Better World Product Yes | ||
Better World Claim Renewable energy solution | ||
Mounting Type Cable Mount | ||
Colour Orange | ||
Width 65mm | ||
Standards Met EN 60664-1 | ||
Contact Material Copper Alloy | ||
Pin Diameter 6mm | ||
Maximum Operating Temperature +125°C | ||
Height 34.3mm | ||
Depth 77mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
HVSL Series is designed for various xEV applications, including power and signal interconnect solutions. Different versions are available, from 1 position to 3 positions and a rated current from 23A to 250A.
Integrated internal HVIL
Current rating up to 120A
No tool required to unmate
Touch-proof
Multiple coding positions
CPA available
Current rating up to 120A
No tool required to unmate
Touch-proof
Multiple coding positions
CPA available
Excel Mate Metal is a 2-pin connector with current carrying capacity from 80 to 120A and 16 to 25mm2 crimping cable. Specially designed for battery, inverters, junction boxes, power distribution boxes and others xEV devices' equipment.
