Amphenol Industrial, Surlok Plus RADSOK EV Connector Socket, 200A
- RS Stock No.:
- 124-4035
- Mfr. Part No.:
- SLPRBTNNB / C10-731842-100
- Brand:
- Amphenol Industrial
Subtotal (1 unit)*
£10.45
(exc. VAT)
£12.54
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £10.45 |
| 5 - 9 | £9.93 |
| 10 + | £9.72 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-4035
- Mfr. Part No.:
- SLPRBTNNB / C10-731842-100
- Brand:
- Amphenol Industrial
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Range | R4 RADSOK | |
| Series | Surlok Plus | |
| Connector Type | RADSOK | |
| Number of Rows | 1 | |
| Number of Contacts | 1 | |
| Wire Size | 35 mm², 50 mm² | |
| Current Rating | 200A | |
| Operating Voltage | 1000V | |
| Connector Gender | Female | |
| Contact Gender | Male | |
| Orientation | Straight | |
| Termination Method | Screw | |
| Better World Product | Yes | |
| Better World Claim | Renewable energy solution | |
| Colour | Black | |
| Mounting Type | Panel Mount | |
| For Use With | SurLok 1-Position Plug | |
| Maximum Operating Temperature | +125°C | |
| Standards Met | UL 94-V0 | |
| Pin Diameter | 8mm | |
| Applications | BMS/Energy Storage, EV/HEV, Heavy Equipment, Medical, Process Control/Automation, Rail Mass Transit | |
| Minimum Operating Temperature | -40°C | |
| Depth | 46.2mm | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Range R4 RADSOK | ||
Series Surlok Plus | ||
Connector Type RADSOK | ||
Number of Rows 1 | ||
Number of Contacts 1 | ||
Wire Size 35 mm², 50 mm² | ||
Current Rating 200A | ||
Operating Voltage 1000V | ||
Connector Gender Female | ||
Contact Gender Male | ||
Orientation Straight | ||
Termination Method Screw | ||
Better World Product Yes | ||
Better World Claim Renewable energy solution | ||
Colour Black | ||
Mounting Type Panel Mount | ||
For Use With SurLok 1-Position Plug | ||
Maximum Operating Temperature +125°C | ||
Standards Met UL 94-V0 | ||
Pin Diameter 8mm | ||
Applications BMS/Energy Storage, EV/HEV, Heavy Equipment, Medical, Process Control/Automation, Rail Mass Transit | ||
Minimum Operating Temperature -40°C | ||
Depth 46.2mm | ||
- COO (Country of Origin):
- CN

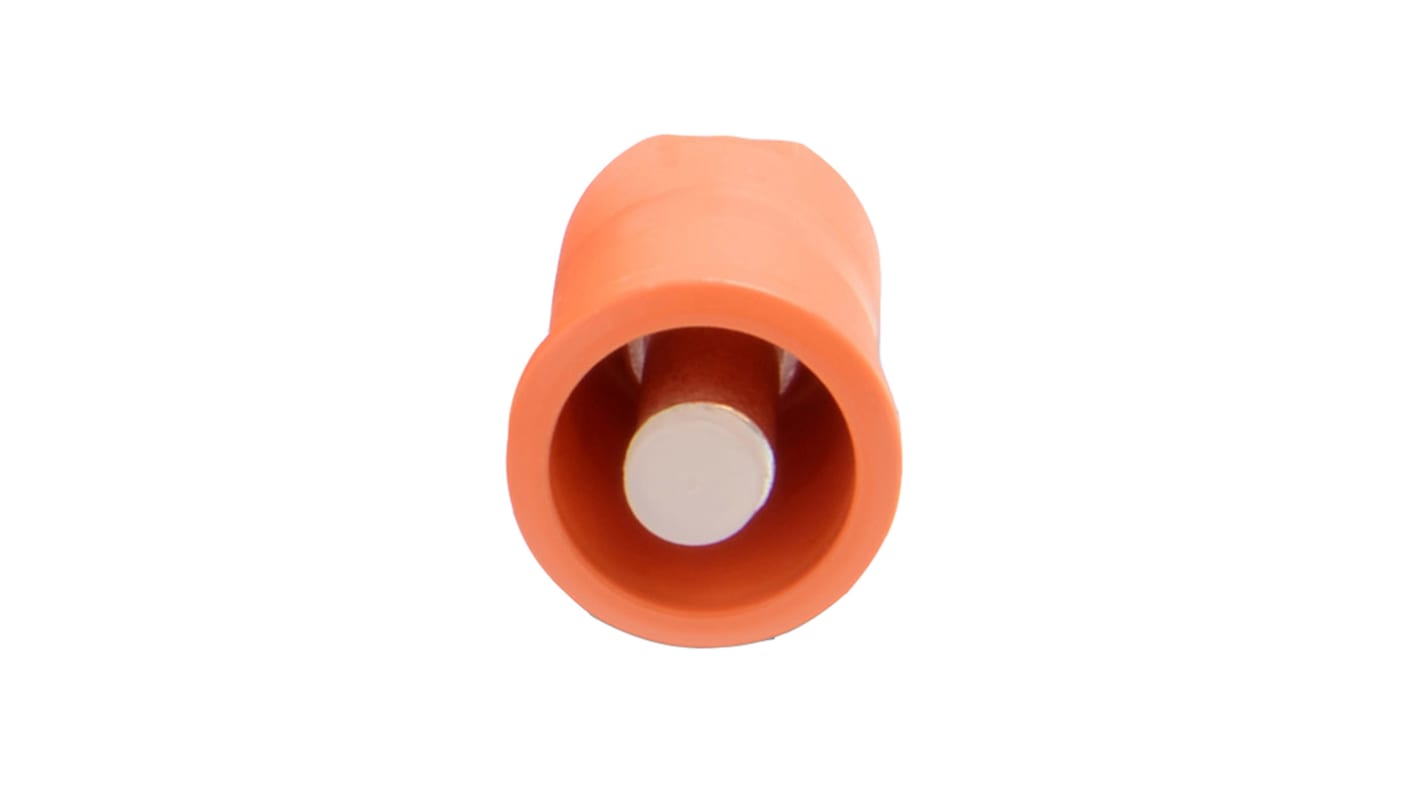

8mm SurLok Plus Receptacle (Without Flange)
With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area.
The receptacle has a 8mm pin diameter.
Features and Benefits
• Spring Locking
• Keyed to prevent mismating
• IP67
• Flammability rating of UL 94-V0
