MOXA 10/100 Base-Tx Ethernet Media Converter, Multi Mode, 100Mbit/s 5km
- RS Stock No.:
- 255-1781
- Mfr. Part No.:
- CSM-400-1213-T
- Brand:
- MOXA
Available to back order for despatch 02/01/2025, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£346.73
(exc. VAT)
£416.08
(inc. VAT)
Units | Per unit |
---|---|
1 + | £346.73 |
- RS Stock No.:
- 255-1781
- Mfr. Part No.:
- CSM-400-1213-T
- Brand:
- MOXA
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

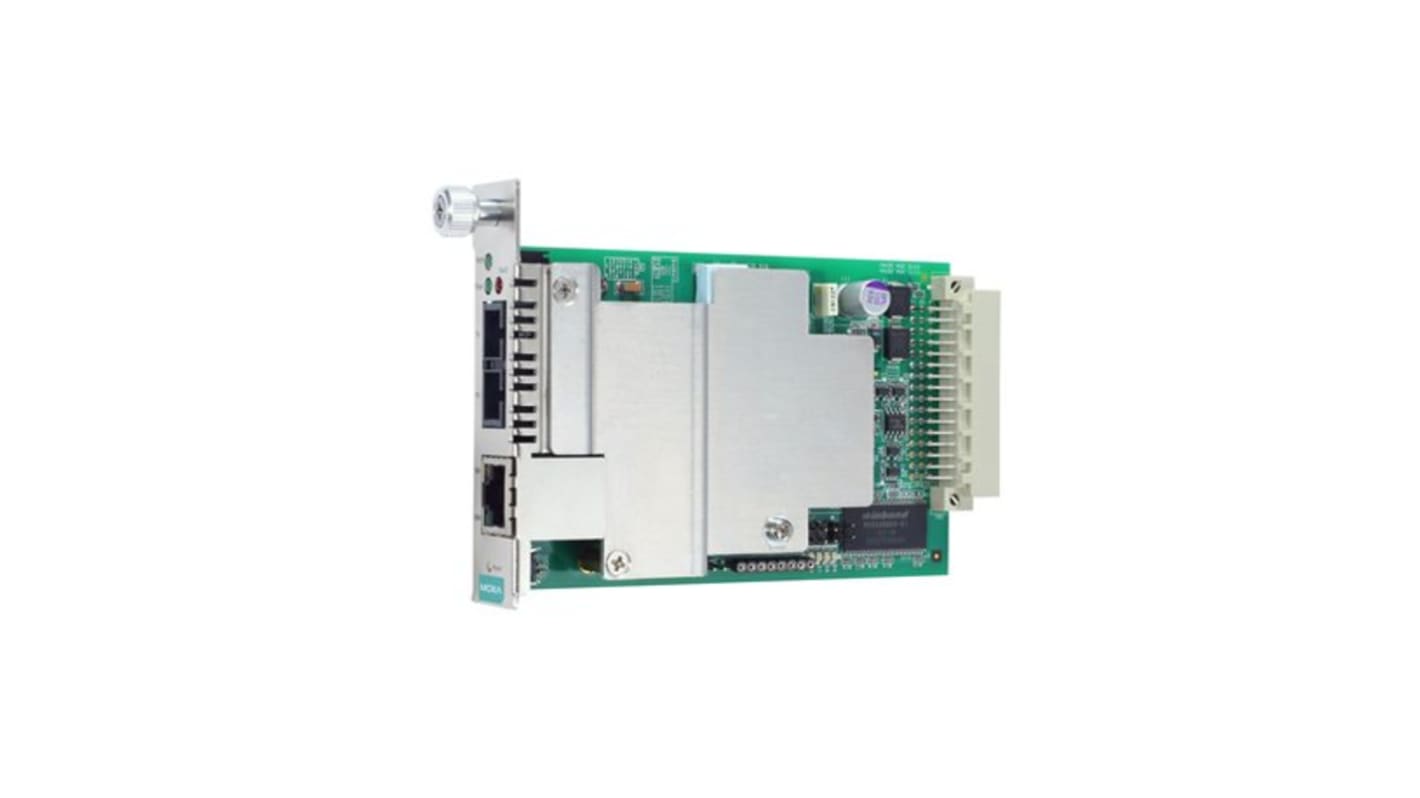

The Moxa Europe Ethernet-to-fibre managed media converters for the NRack system. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack system chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fibre modules to reduce fibre cable cost.
LFP (Link Fault Pass-Through) and FEF (Far End Fault)
Supports store-and-forward mode and pass-through mode
Auto-negotiation
Supports IEEE 802.3AH OAM protocol
Plug and play
Hot-swappable
IP-based remote management
Supports WDM type modules
Supports store-and-forward mode and pass-through mode
Auto-negotiation
Supports IEEE 802.3AH OAM protocol
Plug and play
Hot-swappable
IP-based remote management
Supports WDM type modules
Specifications
Attribute | Value |
---|---|
Connection Port | 10/100 Base-Tx Ethernet |
Fibre Type | Multi Mode |
Network Speed | 100Mbit/s |
Maximum Transfer Distance | 5km |
Maximum Data Transfer Rate | 100Mbps |
