MOXA RJ45 Ethernet Media Converter, Multimode, 100Mbps, Multimode, Single Mode 40 km
- RS Stock No.:
- 633-519
- Mfr. Part No.:
- PTC-101-M-SC-HV
- Brand:
- MOXA
Subtotal (1 unit)*
£576.84
(exc. VAT)
£692.21
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £576.84 |
*price indicative
- RS Stock No.:
- 633-519
- Mfr. Part No.:
- PTC-101-M-SC-HV
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Ethernet Media Converter | |
| Number of Ports | 2 | |
| For Use With | Industrial Ethernet Network | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | Telcordia SR332, IEC 61000-4-6, IEC 60068-2-14, IEC 61000-4-4, FCC Part 15B Class A, IEC 61000-4-5, IEC 61000-4-2, UL 60950-1, CISPR 32, UL 62368-1, EN 62368-1, IEC 61850-3, IEC 60068-2-3, IEC 61000-4-11, IEC 61000-4-8, IEC 61000-4-3, IEC 60068-2-6, EN 55032/35, IEC 60068-2-1 | |
| Fibre Operating Mode | Multimode, Single Mode | |
| Fibre Type | Multimode | |
| Maximum Data Transfer Rate | 100Mbps | |
| Maximum Transfer Distance | 40km | |
| Connection Port | RJ45 | |
| Network Speed | 100Mbps | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Ethernet Media Converter | ||
Number of Ports 2 | ||
For Use With Industrial Ethernet Network | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals Telcordia SR332, IEC 61000-4-6, IEC 60068-2-14, IEC 61000-4-4, FCC Part 15B Class A, IEC 61000-4-5, IEC 61000-4-2, UL 60950-1, CISPR 32, UL 62368-1, EN 62368-1, IEC 61850-3, IEC 60068-2-3, IEC 61000-4-11, IEC 61000-4-8, IEC 61000-4-3, IEC 60068-2-6, EN 55032/35, IEC 60068-2-1 | ||
Fibre Operating Mode Multimode, Single Mode | ||
Fibre Type Multimode | ||
Maximum Data Transfer Rate 100Mbps | ||
Maximum Transfer Distance 40km | ||
Connection Port RJ45 | ||
Network Speed 100Mbps | ||
- COO (Country of Origin):
- TW

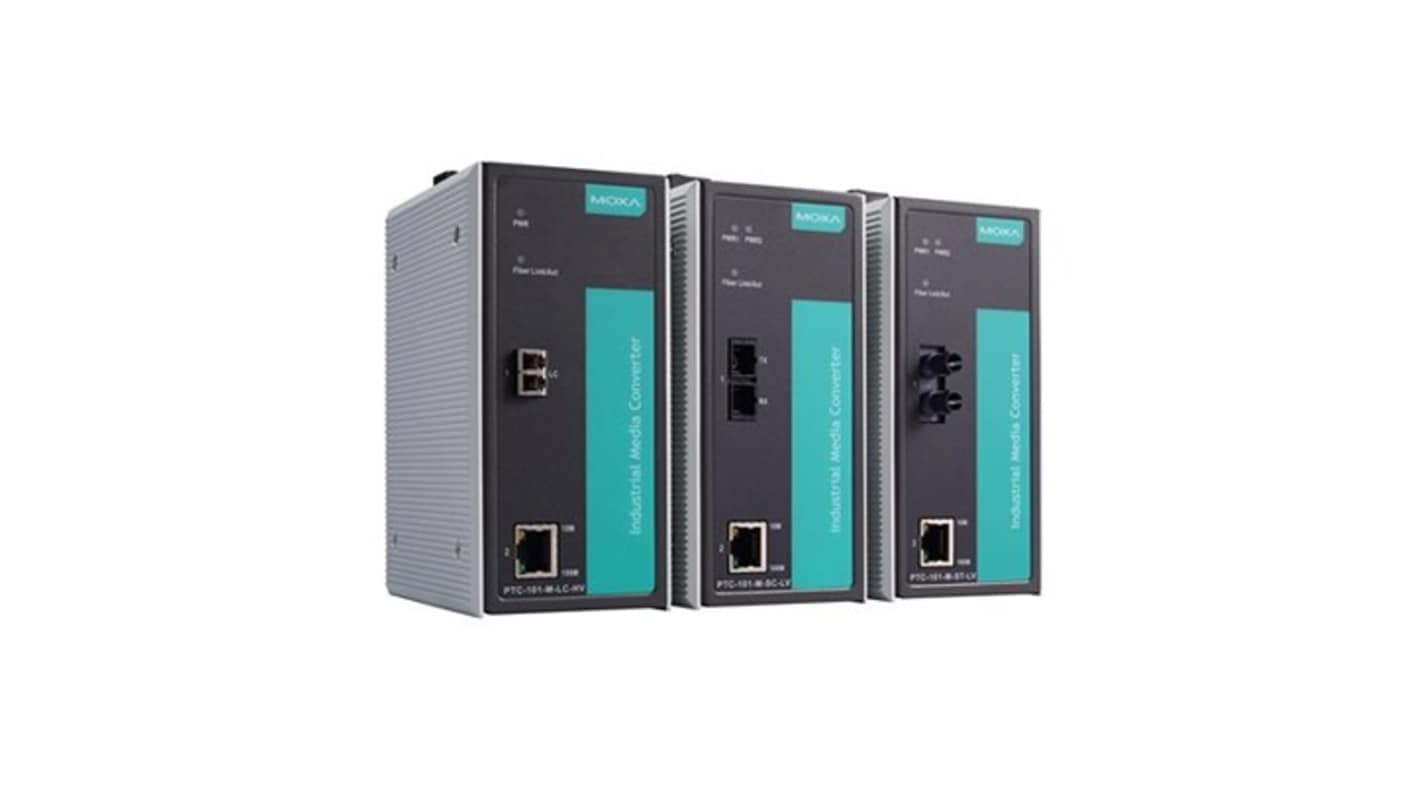

The Moxa Europe Ethernet-to-fibre media converter designed to bridge 10/100BaseT(X) copper connections with 100BaseFX. Engineered for high-voltage environments like power substations, it supports a wide input range and operates reliably across extreme temperatures. Its compliance with IEC 61850-3 and IEEE 1613 standards ensures robust performance under electrical stress, vibration, and electromagnetic interference.
Multimode SC fibre module
Link Fault Pass Through
Redundant dual DC power inputs
CE compliant
