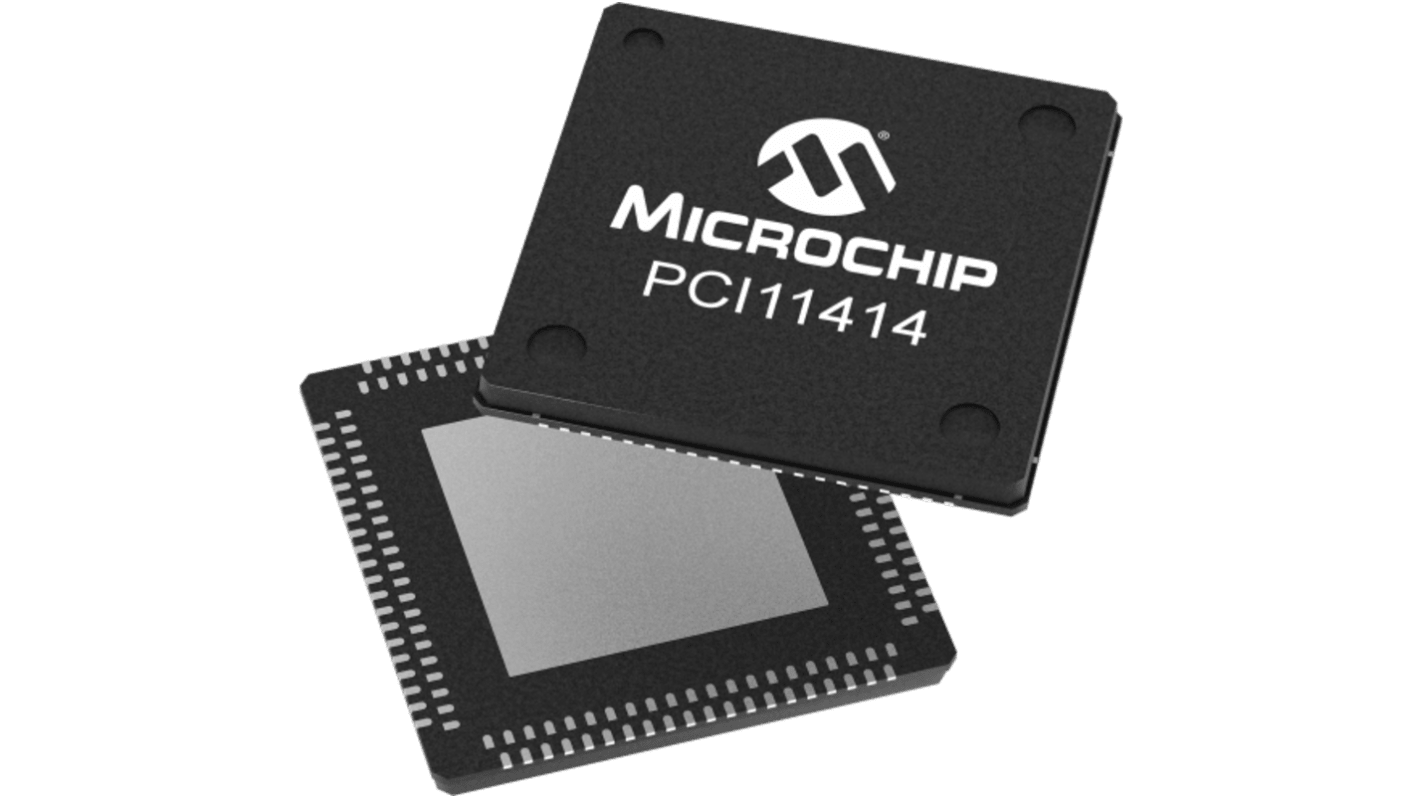

Microchip PCI11414/PMX, Ethernet Transceiver, 2.5Gbit/s, USB, 164-Pin DRQFN
- RS Stock No.:
- 333-102
- Mfr. Part No.:
- PCI11414/PMX
- Brand:
- Microchip
Subtotal (1 tray of 136 units)*
£2,403.936
(exc. VAT)
£2,884.696
(inc. VAT)
FREE delivery for orders over £50.00
New product - Preorder today
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
136 + | £17.676 | £2,403.94 |
*price indicative
- RS Stock No.:
- 333-102
- Mfr. Part No.:
- PCI11414/PMX
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Physical Network Type | IEEE802.3 | |
Host Interface | USB | |
Communication Mode | Communication Mode | |
Data Rate | 2.5Gbit/s | |
Package Type | DRQFN | |
Pin Count | 164 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Physical Network Type IEEE802.3 | ||
Host Interface USB | ||
Communication Mode Communication Mode | ||
Data Rate 2.5Gbit/s | ||
Package Type DRQFN | ||
Pin Count 164 | ||
- COO (Country of Origin):
- TW
The Microchip Single chip PCIe switch with an integrated USB 3.2 Gen 2 host controller, Ethernet MAC and programmable I/O. The integrated PCIe physical interfaces provide a 4 lane (4x8GT/s) upstream port and a 1 lane (1x8GT/s) downstream port. The device is targeted to address customer requests for higher bandwidth PCIe sub systems within embedded applications. The maximum line rate is 8GT/s and it is certified against the GEN4 compliance program as defined in the PCIe Revision 4.x specifications.
Multifunction GPIOs
Programmable pin multiplexer
Ability to use low cost 25MHz crystal or clock for reduced BOM
SPI peripheral interface
SMBus target interface
SMBus controller interface
Programmable pin multiplexer
Ability to use low cost 25MHz crystal or clock for reduced BOM
SPI peripheral interface
SMBus target interface
SMBus controller interface
