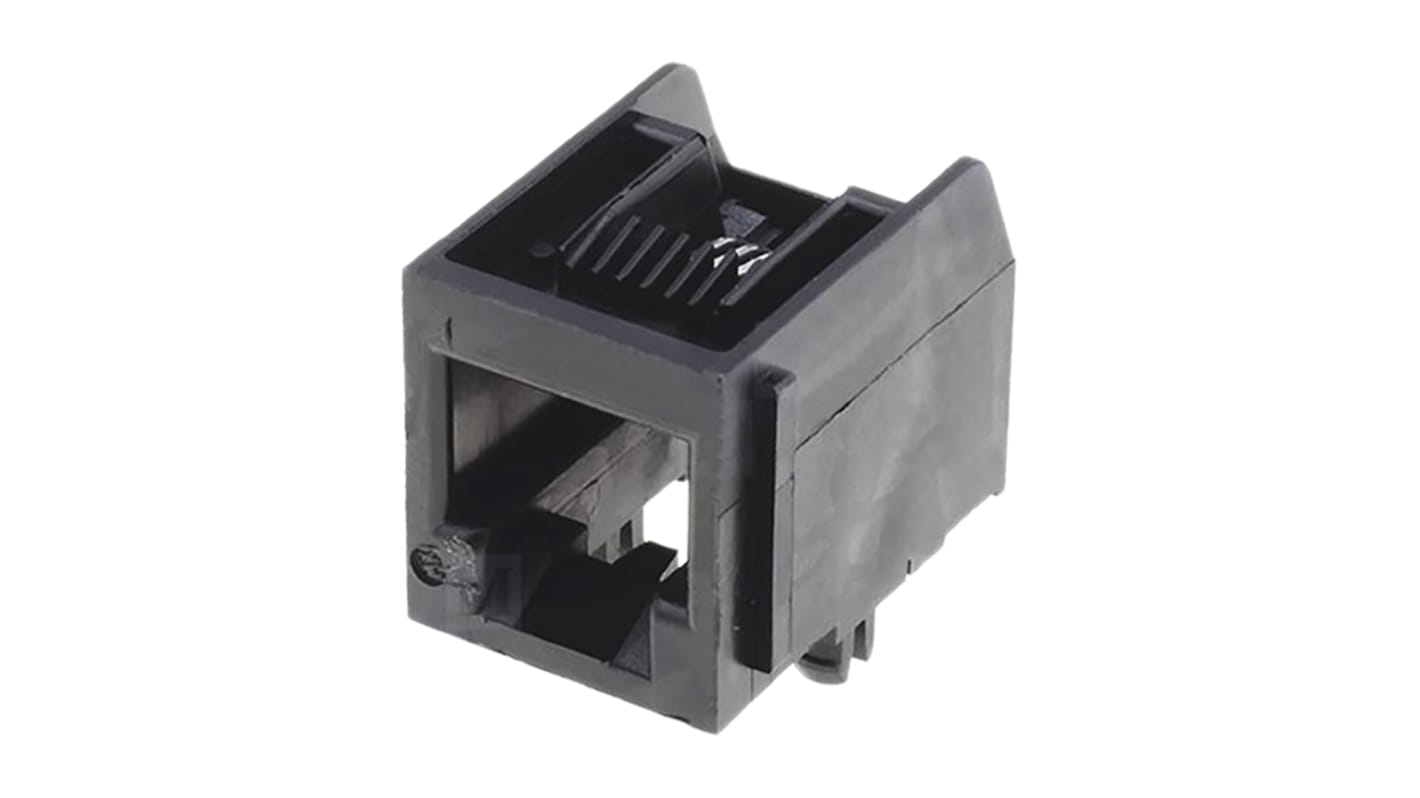

Molex 95009 Series RJ11 Connector Female, Through Hole, Cat3 Unshielded Right Angle 2 Port 6 Way
- RS Stock No.:
- 904-8171
- Mfr. Part No.:
- 95009-7661
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£5.67
(exc. VAT)
£6.805
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 150 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.134 | £5.67 |
| 50 - 145 | £0.886 | £4.43 |
| 150 - 295 | £0.85 | £4.25 |
| 300 + | £0.816 | £4.08 |
*price indicative
- RS Stock No.:
- 904-8171
- Mfr. Part No.:
- 95009-7661
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | RJ11 Connector | |
| Ethernet Connector Type | RJ11 | |
| LAN Category | Cat3 | |
| Number of Ports | 2 | |
| Mount Type | Through Hole | |
| Number of Ways | 6 | |
| Connector Type | RJ11 | |
| Connector Gender | Female | |
| Shield Type | Unshielded | |
| Magnetic | No | |
| Orientation | Right Angle | |
| LED | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Light Pipes | No | |
| Maximum Operating Temperature | 80°C | |
| Depth | 20.57mm | |
| Length | 13.21mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Width | 16mm | |
| Series | 95009 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type RJ11 Connector | ||
Ethernet Connector Type RJ11 | ||
LAN Category Cat3 | ||
Number of Ports 2 | ||
Mount Type Through Hole | ||
Number of Ways 6 | ||
Connector Type RJ11 | ||
Connector Gender Female | ||
Shield Type Unshielded | ||
Magnetic No | ||
Orientation Right Angle | ||
LED No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Light Pipes No | ||
Maximum Operating Temperature 80°C | ||
Depth 20.57mm | ||
Length 13.21mm | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Width 16mm | ||
Series 95009 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Molex RJ11 Connector, 16mm Height, Right-Angle Entry - 95009-7661
To get your data centre networking with automated equipment, use this RJ11 connector from Molex. It's an Ethernet jack that provides a secure connection and allows devices to stay in touch with each other. Thanks to strain relief integrated into its housing, there's little chance of attached cables being damaged by bending, twisting or snagging. The unit's thermoplastic body resists abrasion and wear, so you can count on its durability in harsh industrial settings.
Features & Benefits
• Flame-retardant housing reduces the risk of fire spreading
• Gold-plated contacts ensure optimal electrical flow
• Reusable, as you can safely mate it up to 2,500 times
Applications
• Robotics systems
• Automotive manufacturing
• Security equipment
• Data and telecommunication centres
How much space does this JR11 connector need on a PCB?
The jack needs minimal space, thanks to its 16mm width and low mating interface pitch of 1.02mm. This allows for tight circuit-board packing.
Molex 95009 Series Cat 3 RJ Modular Jacks with Panel Stops
95009 series Cat 3 right angle (side entry) RJ11 and RJ45 PCB Modular jacks with black UL94V-0 high temperature thermoplastic housings and gold plated contacts. These 95009 series Cat 3 RJ11 and RJ45 PCB modular jacks have a termination interface pitch of 1.27mm, PCB location and retention features and panel stops for panel mounting purposes.
For mating connectors see FCC 68 plugs
