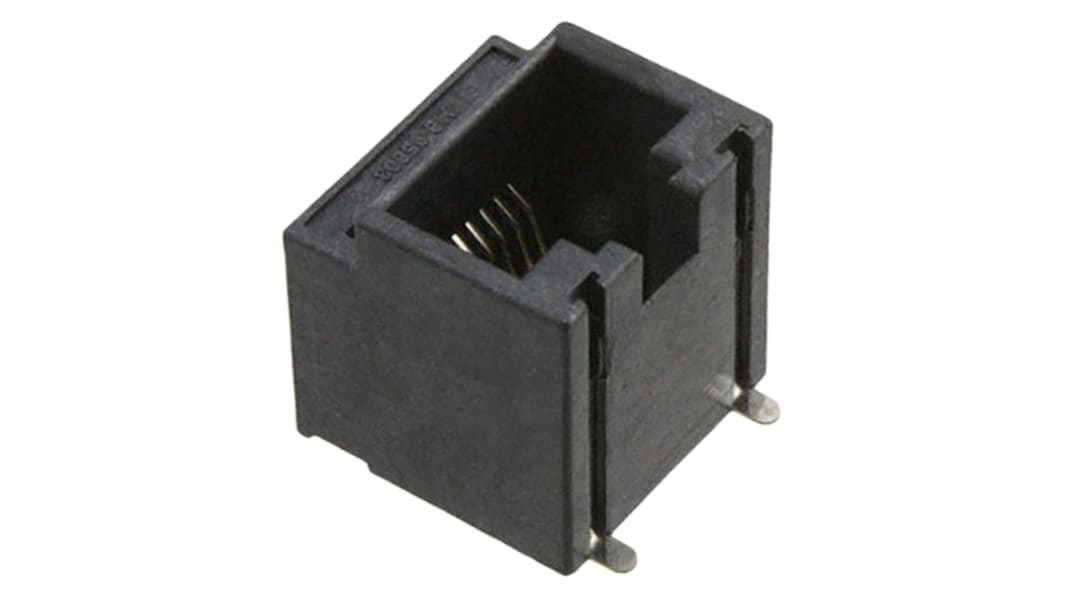

Molex 85510 Series RJ45 Connector Female, Surface Mount, Cat3 Unshielded Vertical 2 Port 8 Way

View all Ethernet Connectors
Bulk discount available

Subtotal (1 pack of 2 units)*

£1.55

(exc. VAT)

£1.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 340 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
2 - 48£0.775£1.55
50 - 148£0.735£1.47
150 - 248£0.715£1.43
250 - 498£0.695£1.39
500 +£0.68£1.36

*price indicative

RS Stock No.:
896-7497
Distrelec Article No.:
304-44-693
Mfr. Part No.:
85510-5020
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

RJ45 Connector

Ethernet Connector Type

RJ45

LAN Category

Cat3

Number of Ports

2

Mount Type

Surface Mount

Number of Ways

8

Connector Gender

Female

Connector Type

Modular Jack

Shield Type

Unshielded

Orientation

Vertical

Magnetic

No

LED

No

Light Pipes

No

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

85°C

Series

85510

Width

15.24mm

Standards/Approvals

No

Hazardous Area Certification

NO

Depth

15.7mm

Length

15.08mm

Contact Material

Copper Alloy

Contact Plating

Gold over Nickel

COO (Country of Origin):
IE

Molex 85510 Series Cat 3 Vertical Top Entry RJ Modular Jacks


85510 series Cat 3 vertical top entry RJ11 and RJ45 PCB SMT Modular jacks with black UL94V-0 high temperature thermoplastic housings and gold plated contacts. These 85510 series Cat 3 RJ11 and RJ45 PCB modular jacks have a termination interface pitch of 1.27mm, solder tabs for PCB retention and require only a small panel cut-out (please see datasheet for details)

For mating plugs see 90075 series
