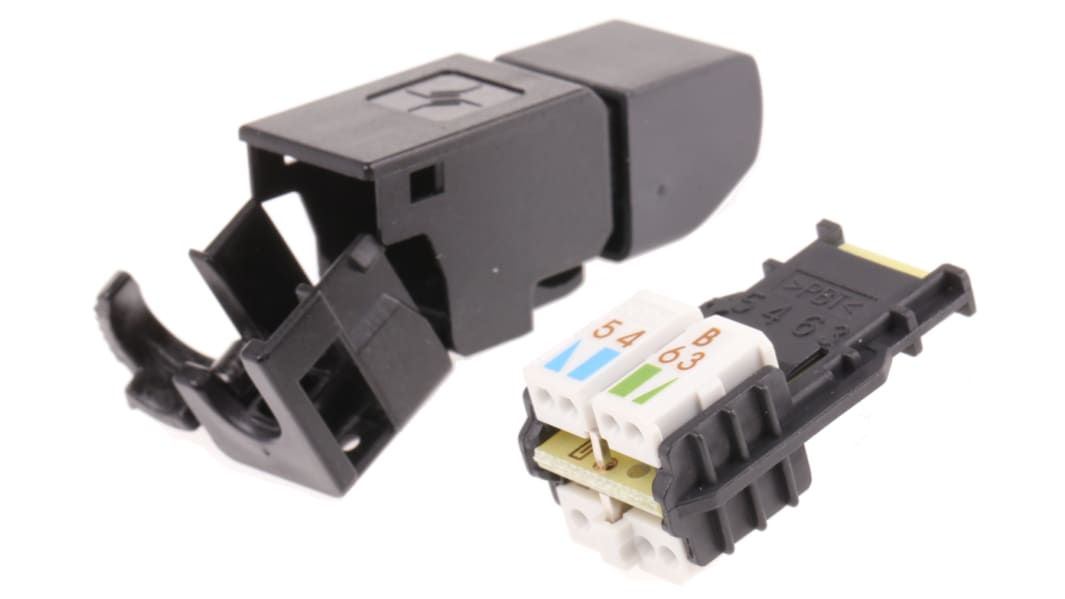

Telegartner J00026A Series RJ45 Connector Male, Cable UTP Shield Straight 1 Port
- RS Stock No.:
- 765-3698
- Mfr. Part No.:
- J00026A3001
- Brand:
- Telegartner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£14.28
(exc. VAT)
£17.14
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 105 unit(s) shipping from 08 June 2026
- Plus 60 unit(s) shipping from 26 June 2026
- Plus 30 unit(s) shipping from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £14.28 |
| 15 - 49 | £13.25 |
| 50 + | £12.41 |
*price indicative
- RS Stock No.:
- 765-3698
- Mfr. Part No.:
- J00026A3001
- Brand:
- Telegartner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telegartner | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Connector Type | Plug | |
| Connector Gender | Male | |
| Shield Type | UTP | |
| Orientation | Straight | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Width | 13.8mm | |
| Series | J00026A | |
| Standards/Approvals | No | |
| Length | 16.35mm | |
| Depth | 44.2mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Nickel Gold Alloy | |
| Select all | ||
|---|---|---|
Brand Telegartner | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Connector Type Plug | ||
Connector Gender Male | ||
Shield Type UTP | ||
Orientation Straight | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Width 13.8mm | ||
Series J00026A | ||
Standards/Approvals No | ||
Length 16.35mm | ||
Depth 44.2mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Nickel Gold Alloy | ||
- COO (Country of Origin):
- DE
UFP8 T568B Cat 6a Field Termination
≥ 750 mating cycles
Contact finish material: Ni1.2Au0.8
Housing material: PC UL94-V0 black
Cu conductor diameter:...solid 0.51 – 0.64 mm (AWG 24/1 – 22/1) or stranded 0.46 – 0.76 mm (AWG 27/7 – 22/7)
Core diameter: 0.85 – 1.1 mm
Outer diameter of cable: 5.5 – 8.5 mm
Reusable piercing contacts: ≤ 4 cycles
Temperature range: -40°C to 70°C
