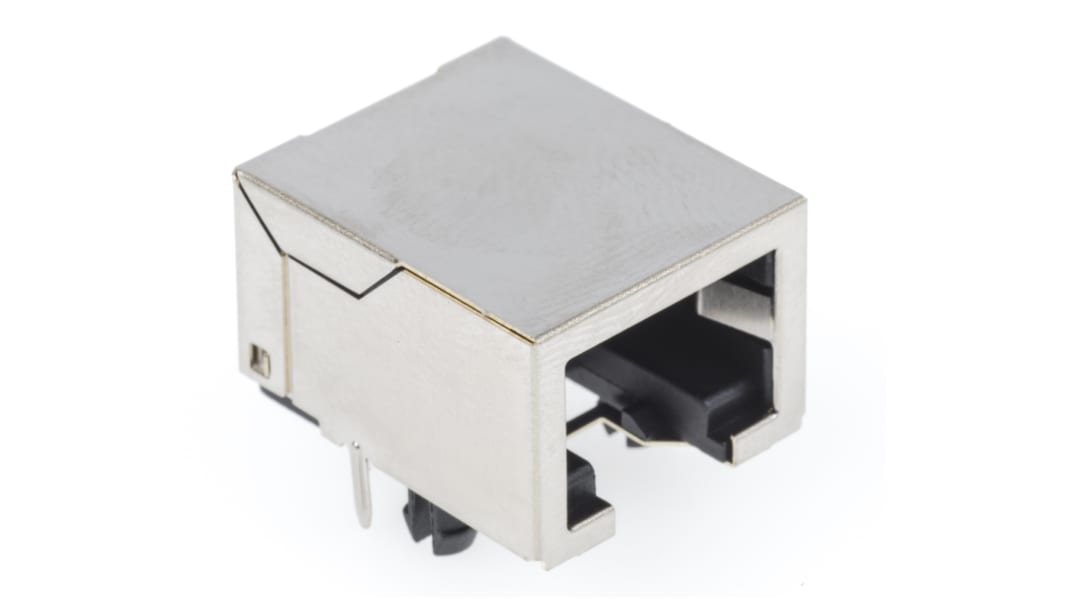

HARTING 0945 Series RJ45 Connector Female, Through Hole, Cat5 Shielded Right Angle 1 Port 8 Way
- RS Stock No.:
- 741-8209
- Mfr. Part No.:
- 09455511102
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£2.53
(exc. VAT)
£3.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
- Plus 70 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £2.53 |
| 50 - 99 | £2.36 |
| 100 - 249 | £2.25 |
| 250 - 499 | £1.69 |
| 500 + | £1.54 |
*price indicative
- RS Stock No.:
- 741-8209
- Mfr. Part No.:
- 09455511102
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5 | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Jack | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| IP Rating | IP67, IP65 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Depth | 18.65mm | |
| Width | 15.74mm | |
| Series | 0945 | |
| Hazardous Area Certification | NO | |
| Length | 11.75mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5 | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Jack | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
IP Rating IP67, IP65 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Depth 18.65mm | ||
Width 15.74mm | ||
Series 0945 | ||
Hazardous Area Certification NO | ||
Length 11.75mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
IP67 Rated Push-Pull Connector and Panel Feed-Through Coupler
An IP67 'push-pull' RJ45 connector housing, and dedicated panel fixing feed-through coupler/receptacle, a perfect compact connector solution for industrial applications. An innovative locking sleeve offers a secure connection, and simple one-hand release.
Features & Benefits
Cable sheath diameter 6.5 mm to 7.2 mm;Panel receptacle has RJ45 mating front and rear;Temperature Rating: -40 to +70 °C
