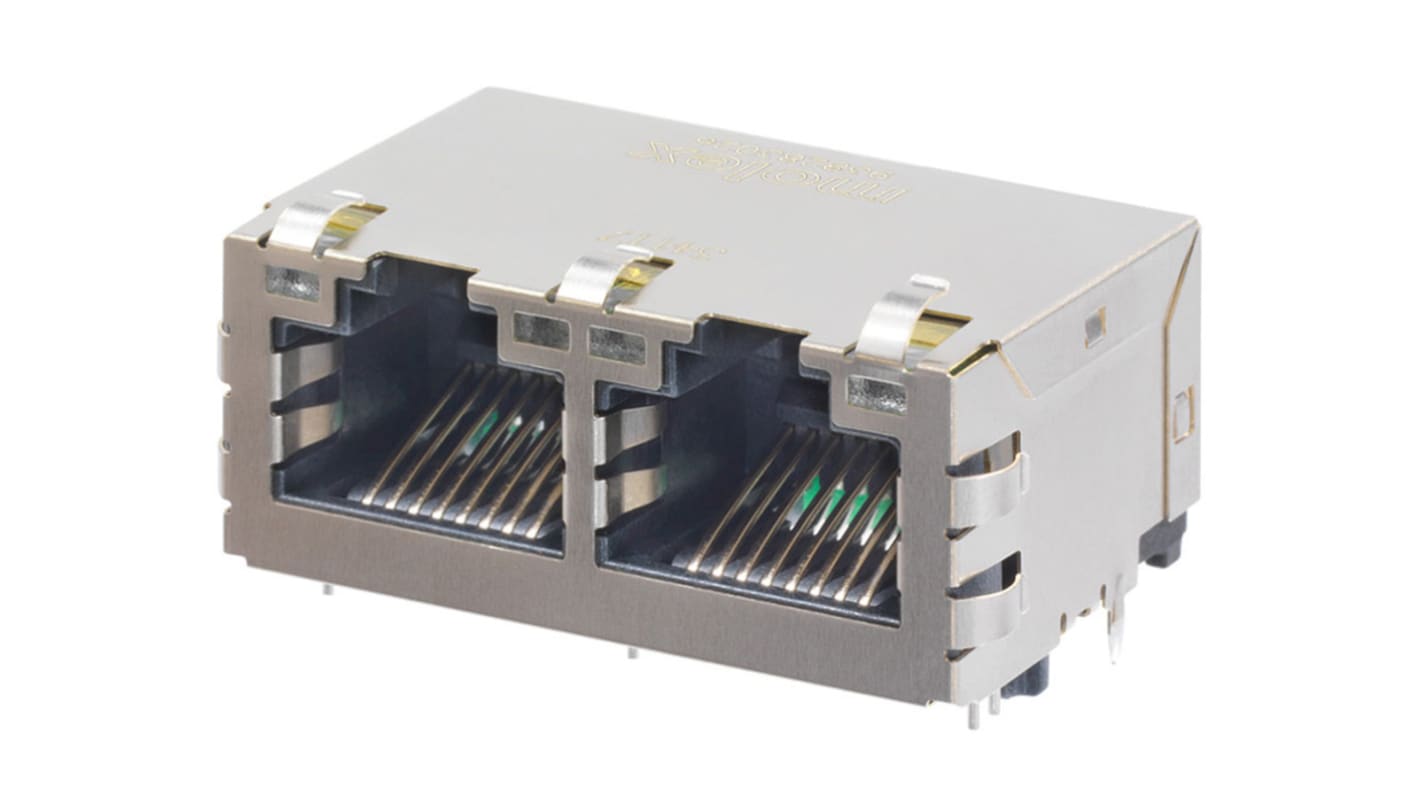

Molex 93826 Series RJ45 Connector Female, Through Hole Shielded Right Angle 2 Port 8 Way
- RS Stock No.:
- 186-5239
- Mfr. Part No.:
- 93826-3006
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£18.55
(exc. VAT)
£22.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £18.55 |
| 10 - 24 | £16.05 |
| 25 + | £14.90 |
*price indicative
- RS Stock No.:
- 186-5239
- Mfr. Part No.:
- 93826-3006
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| Number of Ports | 2 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Jack | |
| Shield Type | Shielded | |
| Orientation | Right Angle | |
| Magnetic | Yes | |
| LED | Yes | |
| Light Pipes | No | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Series | 93826 | |
| Width | 21.37mm | |
| Depth | 15.4mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Length | 31.5mm | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
Number of Ports 2 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Jack | ||
Shield Type Shielded | ||
Orientation Right Angle | ||
Magnetic Yes | ||
LED Yes | ||
Light Pipes No | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Series 93826 | ||
Width 21.37mm | ||
Depth 15.4mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Length 31.5mm | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Nickel | ||
RoHS Status: Exempt
Tested to over 2,500 mating cycles, the MXMag RJ45 Connector Family are robust, highly-reliable magnetic jacks with optional automated reflow-solder capabilities to increase production output and Power over Ethernet (PoE) function to deliver additional cost Advantages.
LED and EMI shield tab options
RJ45 interface with robust terminal design
PoE functionality
Available in temperature ranges 0 to +70°C and -40 to +85°C
Reflow-solder compatible, pin-in-paste and automated pick-and-place options available
Multiple packaging options available
Applications
Telecommunications/Networking
Hubs
Servers
Printers
Industrial
PoE Cameras for machine vision
PLC Controllers
Network Interfaces
Motion Control
Sensor Networks
Commercial
Set-Top Boxes
Internet of Things Applications
Infrastructure
Wireless Access Points
