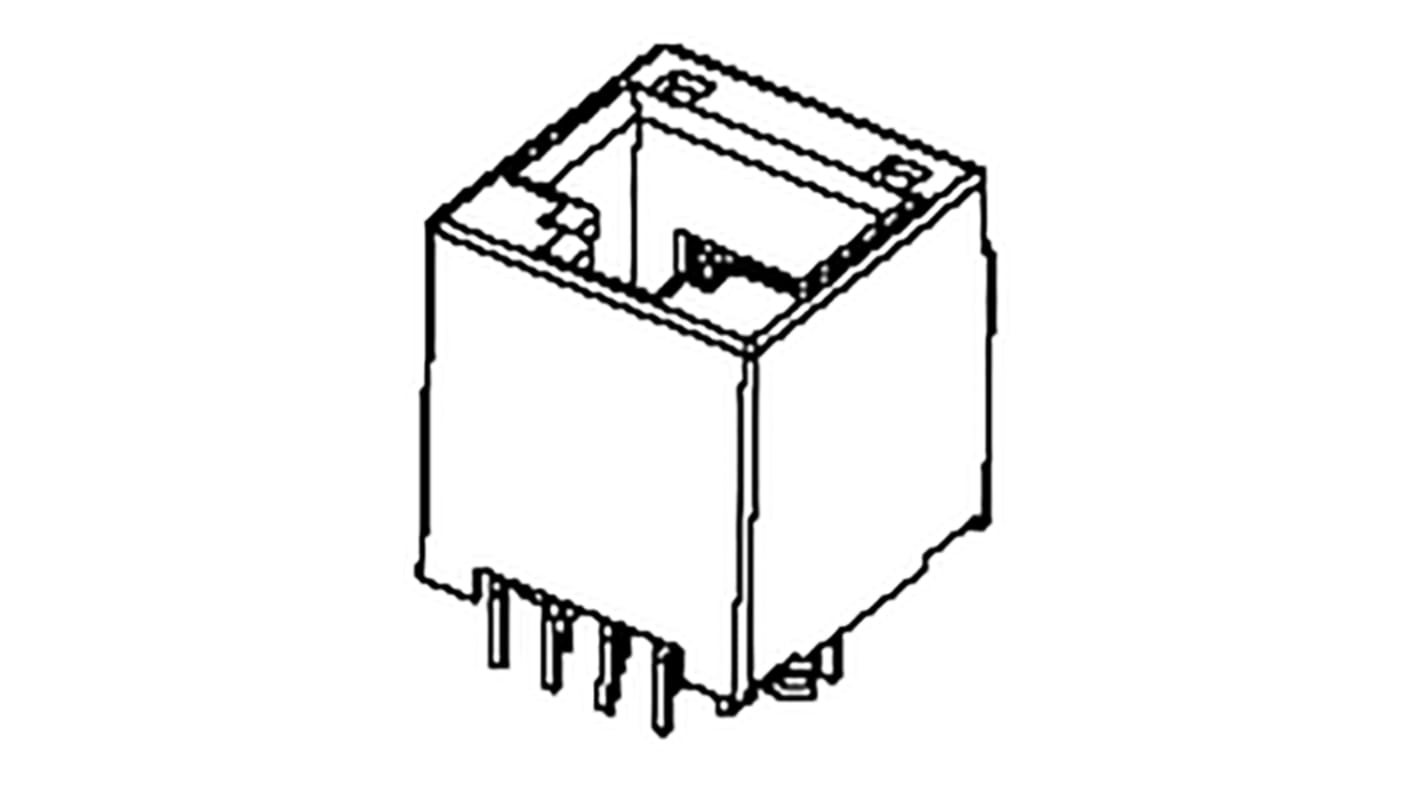

Molex 95503 Series RJ45 Connector Female, Through Hole, Cat3 Unshielded Vertical 1 Port 8 Way
- RS Stock No.:
- 178-9308
- Distrelec Article No.:
- 304-57-775
- Mfr. Part No.:
- 95503-2884
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 1540 units)*
£1,119.58
(exc. VAT)
£1,342.88
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 1540 - 1540 | £0.727 | £1,119.58 |
| 3080 - 6160 | £0.706 | £1,087.24 |
| 7700 - 13860 | £0.687 | £1,057.98 |
| 15400 + | £0.669 | £1,030.26 |
*price indicative
- RS Stock No.:
- 178-9308
- Distrelec Article No.:
- 304-57-775
- Mfr. Part No.:
- 95503-2884
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat3 | |
| Number of Ports | 1 | |
| Mount Type | Through Hole | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Unshielded | |
| Orientation | Vertical | |
| Magnetic | No | |
| LED | No | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Light Pipes | No | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Depth | 15.08mm | |
| Width | 15.7mm | |
| Series | 95503 | |
| Length | 15.24mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel Palladium | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat3 | ||
Number of Ports 1 | ||
Mount Type Through Hole | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Unshielded | ||
Orientation Vertical | ||
Magnetic No | ||
LED No | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Light Pipes No | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Depth 15.08mm | ||
Width 15.7mm | ||
Series 95503 | ||
Length 15.24mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel Palladium | ||
- COO (Country of Origin):
- IE
Modular Jack, Vertical, Top Entry, Through Hole, 8/8, No Key Version, Short, Tray
