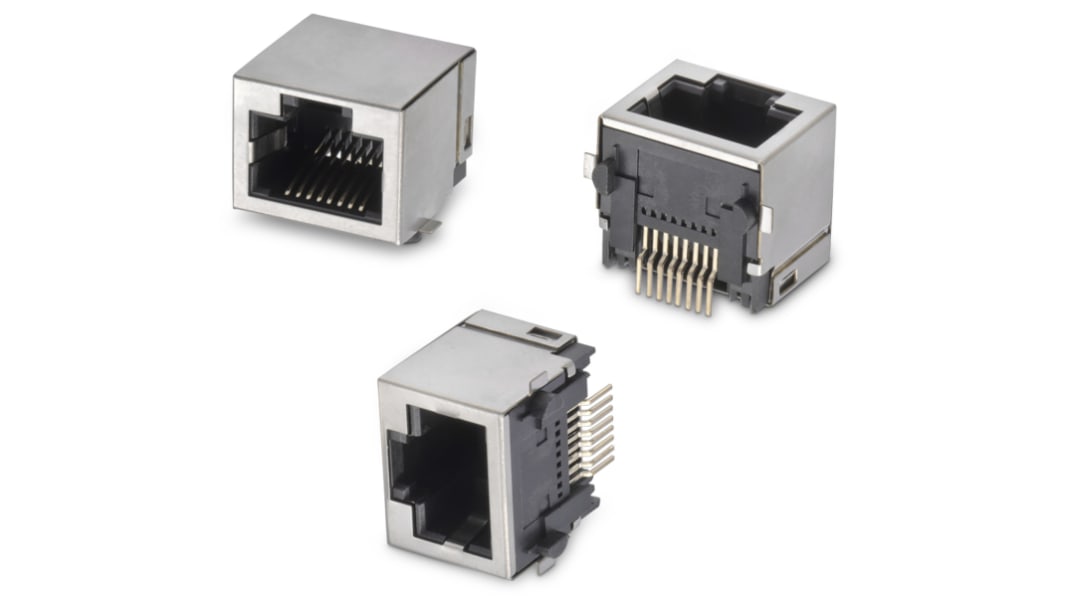

Wurth Elektronik 634008 Series RJ45 Connector Female, Surface Mount, Cat5 Nickel Plated Brass Shield Horizontal 1 Port 8
- RS Stock No.:
- 162-2309
- Distrelec Article No.:
- 301-40-594
- Mfr. Part No.:
- 634008149821
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£7.18
(exc. VAT)
£8.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.18 |
| 10 - 24 | £6.75 |
| 25 - 49 | £6.34 |
| 50 - 99 | £5.98 |
| 100 + | £5.68 |
*price indicative
- RS Stock No.:
- 162-2309
- Distrelec Article No.:
- 301-40-594
- Mfr. Part No.:
- 634008149821
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5 | |
| Mount Type | Surface Mount | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Nickel Plated Brass | |
| Orientation | Horizontal | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Length | 16.55mm | |
| Width | 13.5mm | |
| Series | 634008 | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Depth | 15.75mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5 | ||
Mount Type Surface Mount | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Nickel Plated Brass | ||
Orientation Horizontal | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Length 16.55mm | ||
Width 13.5mm | ||
Series 634008 | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Depth 15.75mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
The Wurth Elektronik WR-MJ is a SMT mount, modular jack, horizontal type shielded tab up with 8P8C number of pins and copper alloy material.
RoHS compliant
Operating temperature ranging between -40°C up to +85°C
500 mating cycles
