TE Connectivity 2120892 Series Male RJ45 Connector, Cable Mount, Cat6a

RS Stock No.:: 135-6046
Mfr. Part No.:: 2120892-1
Brand:: TE Connectivity

TE Connectivity 2120892 Series Male RJ45 Connector, Cable Mount, Cat6a

143 In stock - FREE next working day delivery available

19 available from Europe for delivery within 2 working day(s).

Price Each

£29.18

(exc. VAT)

£35.02

(inc. VAT)

Units	Per unit
1 - 4	£29.18
5 - 9	£27.60
10 - 19	£26.20
20 +	£24.92

RS Stock No.:: 135-6046
Mfr. Part No.:: 2120892-1
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

COO (Country of Origin):: PL

Product Details

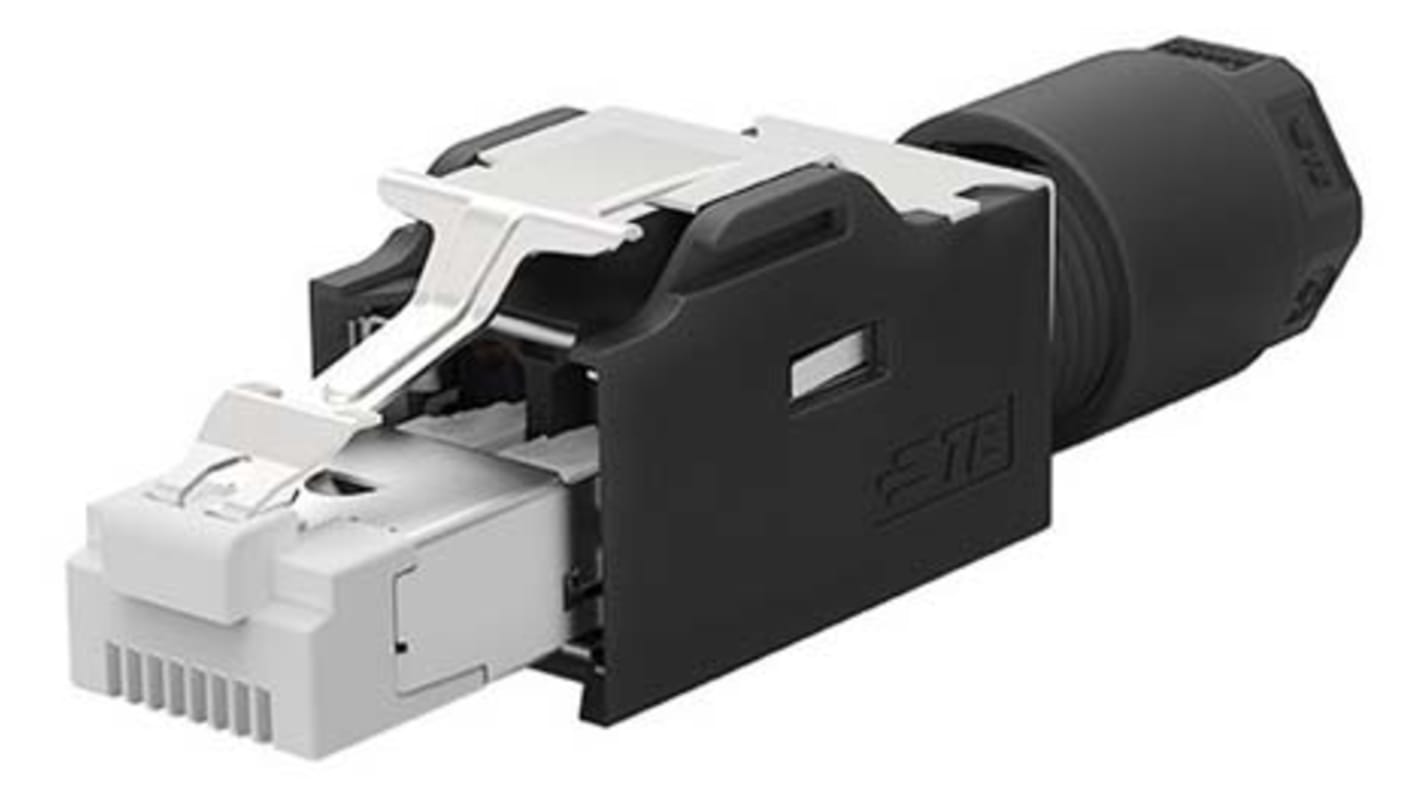

TE Connectivity Cat6a Industrial RJ45 Plug Connector

Cat6a industrial RJ45 shielded plug connector with an IP20 rating suitable for industrial Ethernet applications to 10 Gbit/s. This Cat6a industrial RJ45 plug connector has an inverted jack face and a standard profile. The IDC contacts of this RJ45 industrial plug enable a tool-free connection to the wire. When the housing is closed the excess wire is cut off and the wires are connected to the contacts. This automatic wire cut-off function provides an error free installation and optimal performance in the field. This Cat6a industrial RJ45 plug connector mates with standard 8 position RJ45 sockets according to DIN EN 60603-7-1. All models are highly reliable and excellent quality.

Features and Benefits

Industrial Ethernet 10 Gbit/s performance

Shielded housing

IDC contacts for tool free connection

Automatic wire cut off function

Specifications

Attribute	Value
Ethernet Connector Type	RJ45 Connector
Gender	Male
LAN Category	Cat6a
Number of Ports	1
Mounting Type	Cable Mount
Number of Ways	8
Shield Type	Shielded
Orientation	Straight
IP Rating	IP20
Length	60.06mm
Width	13.9mm
Depth	17.66mm
Series	2120892
Series Number	2120892
Contact Material	Copper Alloy
Contact Plating	Gold over Palladium Nickel
