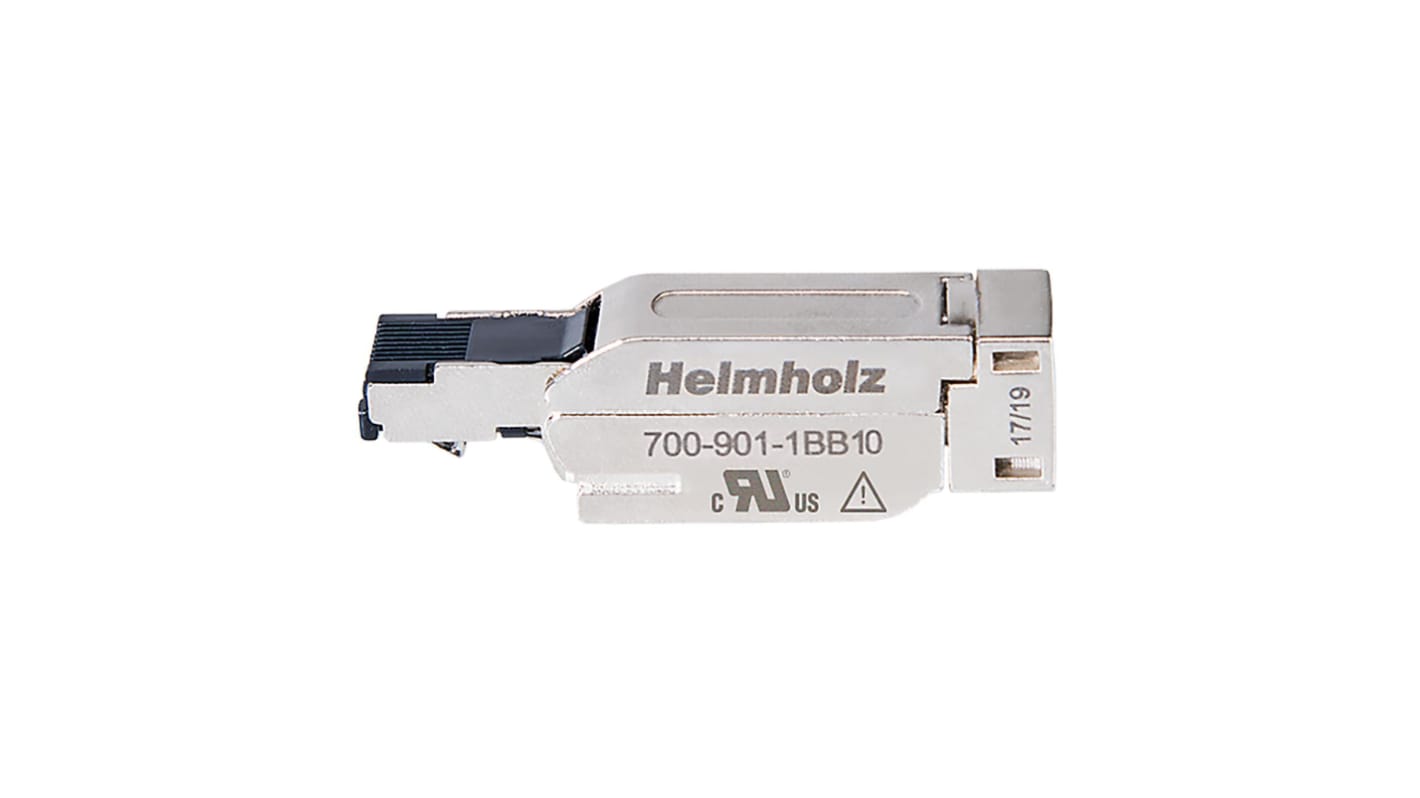

Helmholz GmbH & Co. KG 901-1BB Series Ethernet Connector Female 180° 1 Port
- RS Stock No.:
- 228-137
- Mfr. Part No.:
- 700-901-1BB10
- Brand:
- Helmholz GmbH & Co. KG
Subtotal (1 unit)*
£11.91
(exc. VAT)
£14.29
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 13 unit(s) shipping from 08 September 2026
- Plus 35 unit(s) shipping from 22 September 2026
- Plus 42 unit(s) shipping from 29 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.91 |
*price indicative
- RS Stock No.:
- 228-137
- Mfr. Part No.:
- 700-901-1BB10
- Brand:
- Helmholz GmbH & Co. KG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helmholz GmbH & Co. KG | |
| Product Type | Ethernet Connector | |
| Ethernet Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Connector Gender | Female | |
| Connector Type | RJ45 | |
| Orientation | 180° | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 16.4mm | |
| Standards/Approvals | CE, UL | |
| Hazardous Area Certification | No | |
| Series | 901-1BB | |
| Length | 14.02mm | |
| Depth | 56.5mm | |
| Select all | ||
|---|---|---|
Brand Helmholz GmbH & Co. KG | ||
Product Type Ethernet Connector | ||
Ethernet Connector Type RJ45 | ||
Number of Ports 1 | ||
Connector Gender Female | ||
Connector Type RJ45 | ||
Orientation 180° | ||
IP Rating IP20 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Width 16.4mm | ||
Standards/Approvals CE, UL | ||
Hazardous Area Certification No | ||
Series 901-1BB | ||
Length 14.02mm | ||
Depth 56.5mm | ||
- COO (Country of Origin):
- CN
The Helmholz GmbH & Co. KG PROFINET connector is an innovative solution designed for industrial applications, ensuring effortless connectivity with robust reliability. This field assembled RJ45 connector stands out with its EasyConnect® technology, simplifying installation while providing a high level of ruggedness needed for demanding environments. Its smart design incorporates colour coded contact elements that significantly reduce the likelihood of connection errors, making it a vital tool in network setups. Capable of supporting transmission rates up to 100 Mbps, this connector facilitates efficient data transfer for various applications including PROFINET, Modbus, and EtherCAT.
Up to 100 Mbps transmission rates
Durable metal housing
IP20 protection against dust
Compatible with various industrial cables
Supports multiple networking protocols
Performs well in extreme temperatures
