RS PRO Cat6 Ethernet Cable, UTP, Grey LSZH, PVC Sheath, 100m, Low Smoke Zero Halogen (LSZH)
- RS Stock No.:
- 842-7324
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£57.06
(exc. VAT)
£68.47
(inc. VAT)
- RS Stock No.:
- 842-7324
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | CAT6 | |
| LAN Category | Cat6 | |
| Length | 100m | |
| Terminated/Unterminated | Unterminated | |
| Shield Type | UTP | |
| Sheath Colour | Grey | |
| Outer Sheath Material | LSZH, PVC | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Cable Shape | Twisted Pair | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 6mm | |
| Conductor Strand Type | Solid | |
| Cross Sectional Area | 0.2 mm² | |
| Standards Met | Euroclass Eca | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series CAT6 | ||
LAN Category Cat6 | ||
Length 100m | ||
Terminated/Unterminated Unterminated | ||
Shield Type UTP | ||
Sheath Colour Grey | ||
Outer Sheath Material LSZH, PVC | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Cable Shape Twisted Pair | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 6mm | ||
Conductor Strand Type Solid | ||
Cross Sectional Area 0.2 mm² | ||
Standards Met Euroclass Eca | ||
- COO (Country of Origin):
- CN

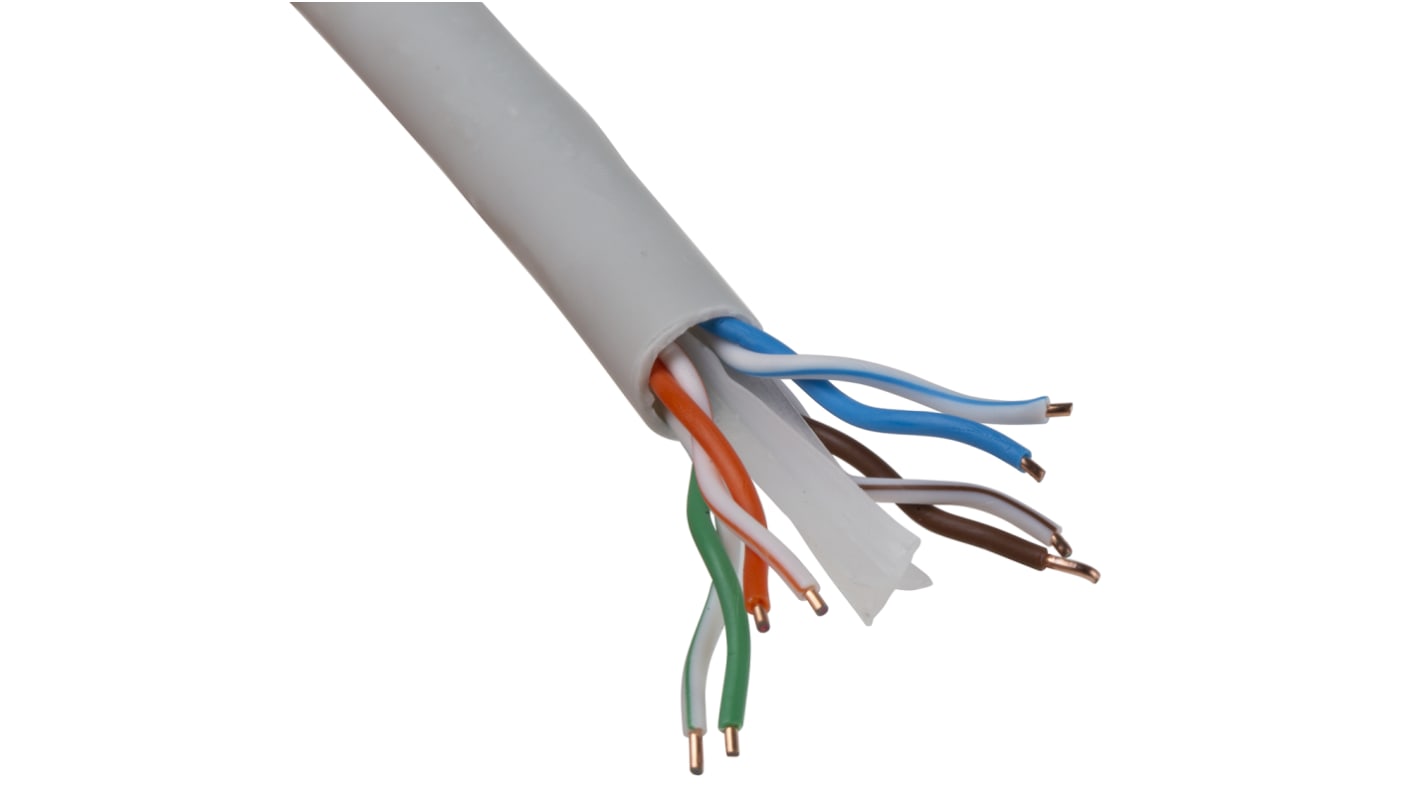

RS Cat6 UTP Cable
The RS Pro 24 AWG, Cat6 UTP (unshielded twisted pair) cable provides some resistance to electromagnetic interference (EMI) and radio frequency interference (RFI). This is due to their construction with twisted cables. However, when close to other machines, power cables, and electronics, they can be affected by EMI and RFI.
Features and Benefits
• No braided shield screen
• No foil wrap shielding
• Outer diameter of 6 mm
• 4 Pair multi-construction
• LSZH (low smoke zero halogen) and PVC Jacket
• HDPE Insulation
• Bare copper conductor
• No foil wrap shielding
• Outer diameter of 6 mm
• 4 Pair multi-construction
• LSZH (low smoke zero halogen) and PVC Jacket
• HDPE Insulation
• Bare copper conductor
Typical Applications
The Cat6 cable LSZH and PVC cable is suitable for using in populated or enclosed areas with poor ventilation. Typically used 1000 Mbits/s networks, VOIP, IP, Camera and IP TV.
Standards
ISO/IEC 11801: 2011, IEC61156-5:2009, EN50173, EN50288-6-1:2013, RoHS, IEC60332-1, IEC61034, IEC60754
