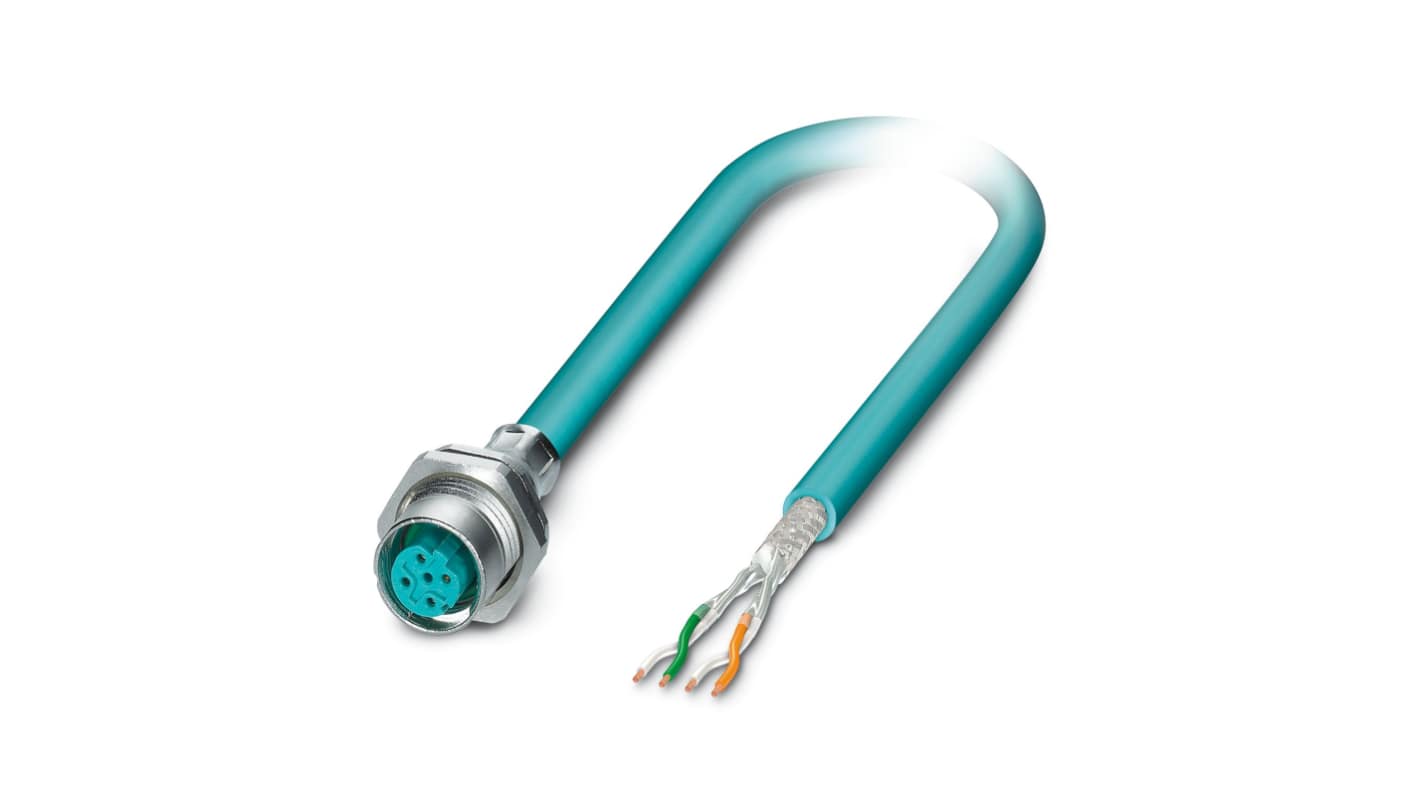

Phoenix Contact SACCBP-M12FSD-4CON-M16/5.0-931, 5 m Cat5 Ethernet Cable, Blue, Shielded 2 Polyurethane Sheath
- RS Stock No.:
- 802-5543
- Mfr. Part No.:
- 1534614
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£88.45
(exc. VAT)
£106.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.45 |
*price indicative
- RS Stock No.:
- 802-5543
- Mfr. Part No.:
- 1534614
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SACCBP-M12FSD-4CON-M16/5.0-931 | |
| Product Type | Ethernet Cable | |
| Cable Length | 5m | |
| LAN Category | Cat5 | |
| Shield Type | Shielded | |
| Jacket Colour | Blue | |
| Jacket Material | Polyurethane | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | Halogen Free | |
| Standards/Approvals | IEC 61076-2-101 | |
| Core Strands | 7 | |
| Cross Sectional Area | 0.14 mm² | |
| Outside Diameter | 6.4mm | |
| Number of Cores | 2 | |
| Conductor Material | Bare Copper | |
| Voltage | 60V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SACCBP-M12FSD-4CON-M16/5.0-931 | ||
Product Type Ethernet Cable | ||
Cable Length 5m | ||
LAN Category Cat5 | ||
Shield Type Shielded | ||
Jacket Colour Blue | ||
Jacket Material Polyurethane | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour Halogen Free | ||
Standards/Approvals IEC 61076-2-101 | ||
Core Strands 7 | ||
Cross Sectional Area 0.14 mm² | ||
Outside Diameter 6.4mm | ||
Number of Cores 2 | ||
Conductor Material Bare Copper | ||
Voltage 60V | ||
Phoenix Contact SACC Connector D Coded
SACC series of universal connectors come supplied in various connection options and are supplied in a wide variety of orientations to ensure your application is covered
IP67 rated
Various thread forms available
D-coded solder termination
Zinc die-cast nickel-plated & plastic housing construction
Speedcon termination is also available, which makes connections simple and suitable for field installation
360° Shielding making the SACC series suitable for use within electromagnetic interference environments
