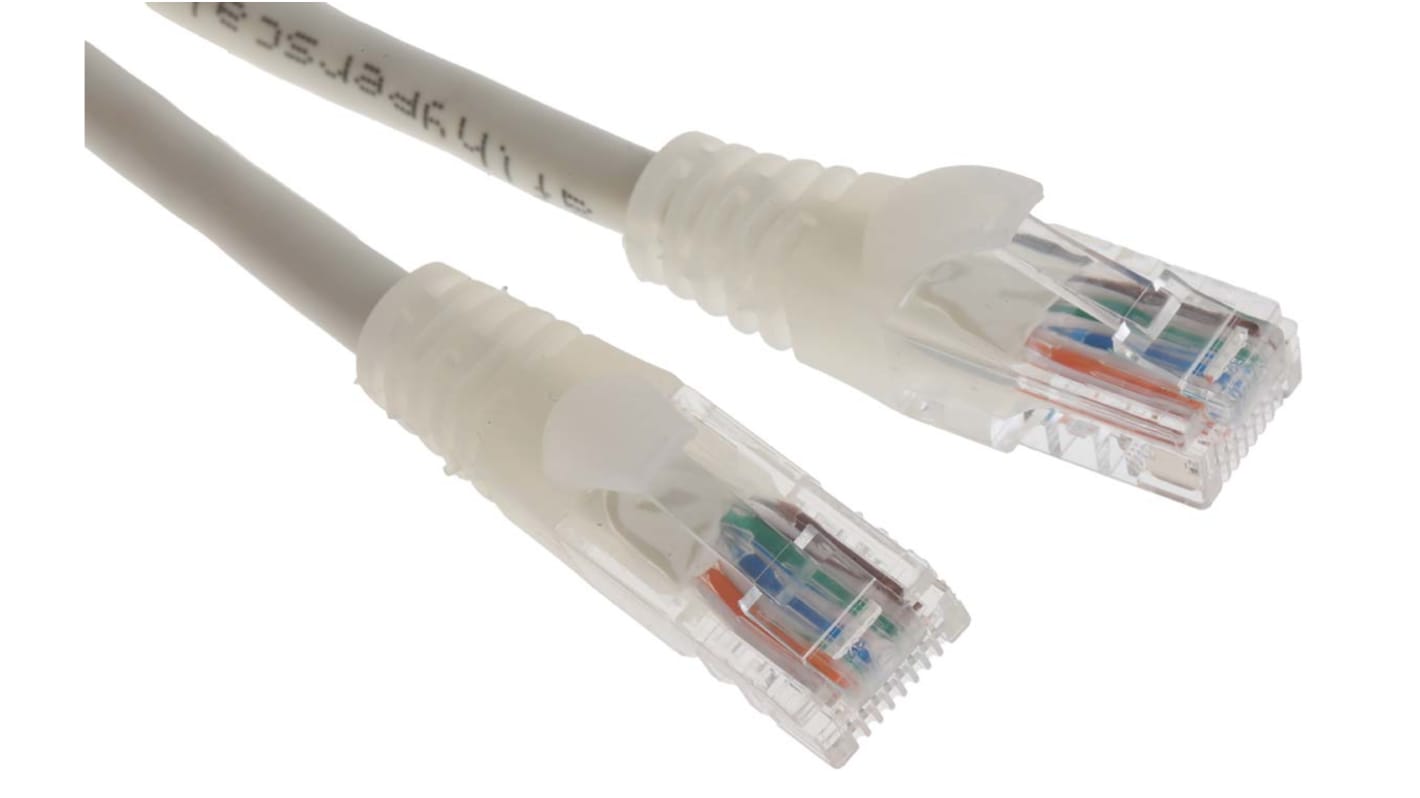

RS PRO, 1m Cat5e, White RJ45 to Male RJ45 Male, U/UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 738-8442
- Brand:
- RS PRO
Save 9% when you buy 50 units
Subtotal (1 unit)*
£4.00
(exc. VAT)
£4.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,139 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £4.00 |
15 - 49 | £3.82 |
50 + | £3.60 |
*price indicative
- RS Stock No.:
- 738-8442
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 1m | |
LAN Category | Cat5e | |
Terminated/Unterminated | Terminated | |
Shield Type | U/UTP | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Gender | Male | |
Connector 1 | RJ45 | |
Connector 2 | RJ45 | |
Connector 2 Gender | Male | |
Shielded/Unshielded | Unshielded | |
Outer Sheath Material | PVC | |
Sheath Colour | White | |
Wiring Configuration | Straight Through | |
Outer Diameter | 5.5mm | |
American Wire Gauge | 24AWG | |
Cross Sectional Area | 23.76mm² | |
Standards Met | EC 1907/2006, IEC 61935-2, ISO/IEC 11801 2nd Edition, RoHS Compliant | |
Cable Shape | Round | |
Voltage Rating | 30v | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 1m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Shield Type U/UTP | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material PVC | ||
Sheath Colour White | ||
Wiring Configuration Straight Through | ||
Outer Diameter 5.5mm | ||
American Wire Gauge 24AWG | ||
Cross Sectional Area 23.76mm² | ||
Standards Met EC 1907/2006, IEC 61935-2, ISO/IEC 11801 2nd Edition, RoHS Compliant | ||
Cable Shape Round | ||
Voltage Rating 30v | ||
- COO (Country of Origin):
- CN
RS Pro Cat5e Cable - PVC
Brought to you by RS Pro, a range of Cat5e cables, perfect for network connections within the home, office spaces or any area requiring a reliable and high performing internet connection. Ethernet cables come in various shapes and sizes, but quality is something which should never be overlooked, as a reliable connection can make a huge difference to company performance. All models are highly reliable and excellent quality.
Features and Benefits
Various lengths available
F/UTP & U/UTP shield types
Gold plated connector (RJ45)
Runs up to 100 MHz applications
F/UTP & U/UTP shield types
Gold plated connector (RJ45)
Runs up to 100 MHz applications
What is a Cat5e Cable?
Cat5e cables are a type of Ethernet cable, running from the internet source, like a router, to the intended target. It had a twister pair build and will excel in both home and workplace environments. The use of copper within the patch cord itself guarantees the excellent network connection needed for a reliable and smooth internet activity.
Why Cat5e?
The choice of which category cable to use is ultimately down to the user. Cat5e will run applications up to 100 MHz, which would be perfect for most workplaces and server rooms which require a constant internet connection for day to day activities.
What type of Shield do these network cables have?
The choice of shields are between F/UTP and U/UTP. Both would be suitable for most applications, but as a guide, please see the differences between the two.
F/UTP - This type has an overall foil shield and an unshielded twisted pair wire
U/UTP - This type Is completely unshielded with an unshielded twisted pair wire
F/UTP - This type has an overall foil shield and an unshielded twisted pair wire
U/UTP - This type Is completely unshielded with an unshielded twisted pair wire
Approvals
ISO/IEC 11801:2002, ANSI/EIA/TIA 568B.2:2002, RoHS, REACH.
Patch cord Cat5e UTP 1m White
Quality 24 AWG (UTP) stranded cable
