Brand-Rex, 305m Cat6, Purple, U/UTP Unshielded, Unterminated LSZH Sheath
- RS Stock No.:
- 342-7537
- Mfr. Part No.:
- C6U-HF1-Eca-Rlx-305VT
- Brand:
- Brand-Rex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 342-7537
- Mfr. Part No.:
- C6U-HF1-Eca-Rlx-305VT
- Brand:
- Brand-Rex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Brand-Rex | |
Length | 305m | |
LAN Category | Cat6 | |
Terminated/Unterminated | Unterminated | |
Shield Type | U/UTP | |
Shielded/Unshielded | Unshielded | |
Sheath Colour | Purple | |
Outer Sheath Material | LSZH | |
Core Strands | 1/23 | |
Conductor Strand Type | Solid | |
Capacitance | 0.8pF/m | |
Cable Shape | Twisted Pair | |
Standards Met | Euroclass Eca | |
Cross Sectional Area | 0.26 mm² | |
Outer Diameter | 5.75mm | |
American Wire Gauge | 23 AWG | |
Number of Strands | 1 | |
Select all | ||
---|---|---|
Brand Brand-Rex | ||
Length 305m | ||
LAN Category Cat6 | ||
Terminated/Unterminated Unterminated | ||
Shield Type U/UTP | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Purple | ||
Outer Sheath Material LSZH | ||
Core Strands 1/23 | ||
Conductor Strand Type Solid | ||
Capacitance 0.8pF/m | ||
Cable Shape Twisted Pair | ||
Standards Met Euroclass Eca | ||
Cross Sectional Area 0.26 mm² | ||
Outer Diameter 5.75mm | ||
American Wire Gauge 23 AWG | ||
Number of Strands 1 | ||
- COO (Country of Origin):
- US
Cat 6 Plus Trunk
Standards
ISO/IEC 11801 Category 6 (Second Edition - Draft); EN50288 (Draft) TIA/EIA 568B
Bran-Rex C6U-HF1-Eca-Rlx-305VT Cat6 Plus

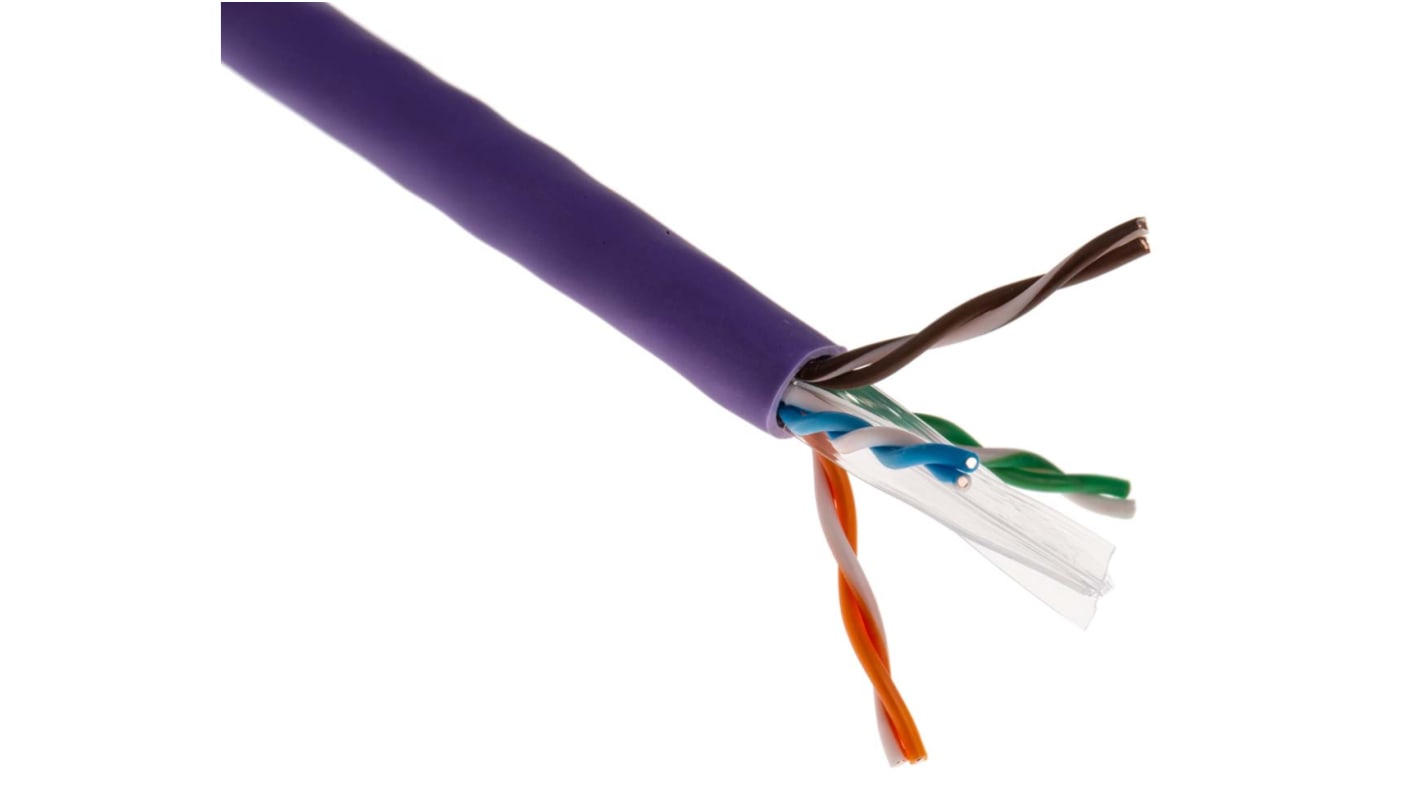

The purple 23 AWG, 4 pair Cat6 cable is part of a low smoke zero halogen (LSZH) range. The Cat6 patch cable is an unshielded cable designed for supporting Gigabit Ethernet applications in horizontal and backbone areas.
The 23AWG solid bare copper conductor is insulated in polyolefin.
The 23AWG solid bare copper conductor is insulated in polyolefin.
Features and Benefits
• 305 m Length
• Millennium CAT6 Plus 550 cable with cross filler +PSACR @ 550MHz delivers high bandwidth performance
• Allows for the development of further Class E protocols
• Addresses all the new electrical requirements for full duplex transmission mode including FEXT and balance requirements
• Excellent for multimedia transmission
• Cat 6 performance achieved when installed in conjunction with Brand Rex Millennium components
• Millennium CAT6 Plus 550 cable with cross filler +PSACR @ 550MHz delivers high bandwidth performance
• Allows for the development of further Class E protocols
• Addresses all the new electrical requirements for full duplex transmission mode including FEXT and balance requirements
• Excellent for multimedia transmission
• Cat 6 performance achieved when installed in conjunction with Brand Rex Millennium components
Standards
ISO/IEC 11801 Category 6 (Second Edition - Draft); EN50288 (Draft) TIA/EIA 568B
