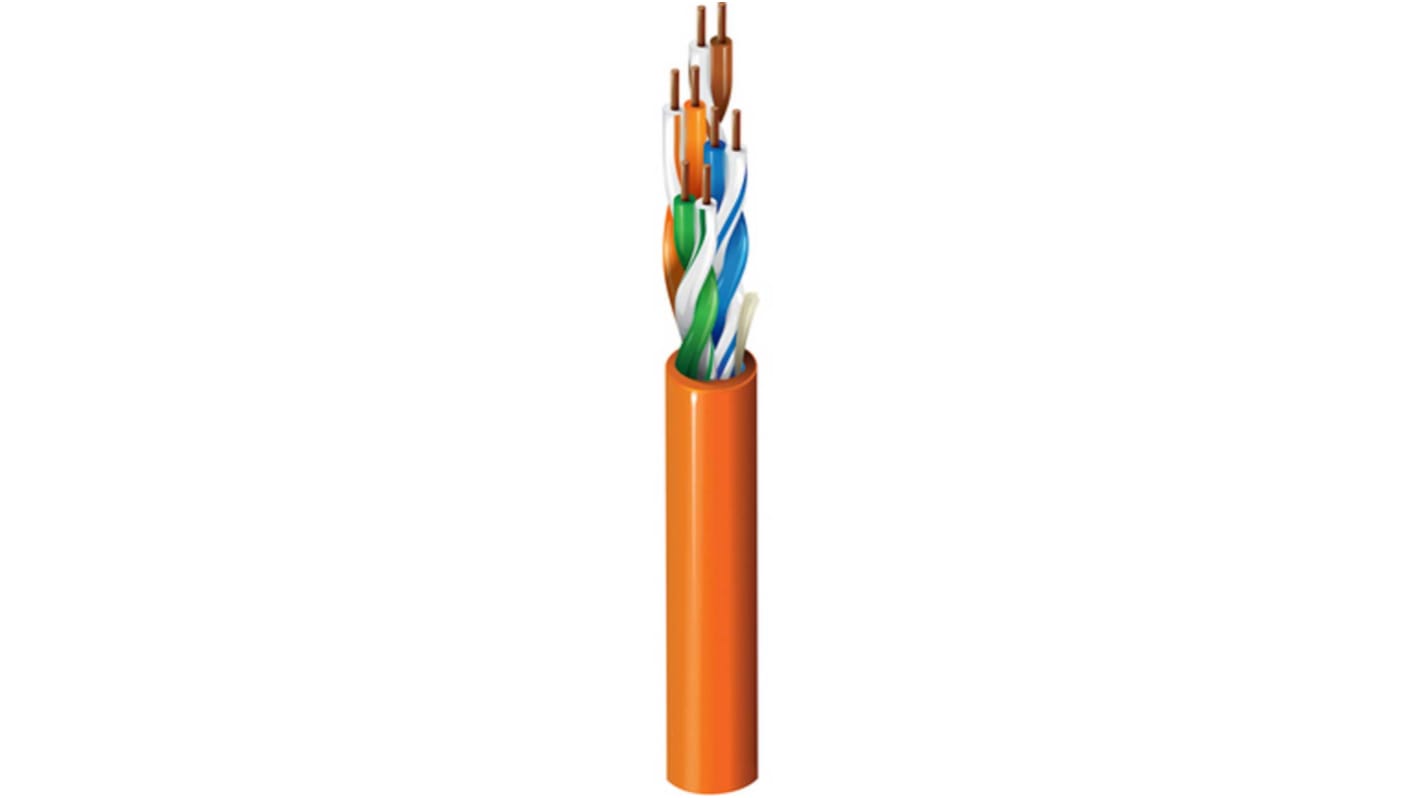

Belden 1752A, 305 m Cat5e Ethernet Cable, Orange Polyvinyl Chloride Sheath Unscreened, Unshielded
- RS Stock No.:
- 290-9319
- Mfr. Part No.:
- 1752A 0031000
- Brand:
- Belden
Subtotal (1 reel of 304 metres)*
£834.02
(exc. VAT)
£1,000.82
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £834.02 | £2.743 |
*price indicative
- RS Stock No.:
- 290-9319
- Mfr. Part No.:
- 1752A 0031000
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Product Type | Ethernet Cable | |
| Series | 1752A | |
| LAN Category | Cat5e | |
| Cable Length | 305m | |
| Shield Type | Unshielded | |
| Screened/Unscreened | Unscreened | |
| Conductor Type | Stranded | |
| Jacket Colour | Orange | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | ANSI/TIA | |
| Core Strands | 7 | |
| Fire Behaviour | UL 1685 (UL 1581) Vertical Tray | |
| Cable CSA | 0.22mm² | |
| Conductor Material | Copper | |
| Outside Diameter | 5.59mm | |
| Number of Cores | 8 | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Product Type Ethernet Cable | ||
Series 1752A | ||
LAN Category Cat5e | ||
Cable Length 305m | ||
Shield Type Unshielded | ||
Screened/Unscreened Unscreened | ||
Conductor Type Stranded | ||
Jacket Colour Orange | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals ANSI/TIA | ||
Core Strands 7 | ||
Fire Behaviour UL 1685 (UL 1581) Vertical Tray | ||
Cable CSA 0.22mm² | ||
Conductor Material Copper | ||
Outside Diameter 5.59mm | ||
Number of Cores 8 | ||
- COO (Country of Origin):
- US
Belden Ethernet Cable, 24 AWG, 305m Length - 1752A 0031000
This Ethernet cable from Belden is a high-quality, Cat5e twisted pair cable that is designed for performance and durability. With a 24 AWG stranded conductor and a 305m length, it can be for various networking applications. The PVC outer sheath and U/UTP shielding provide protection and stability.
Features & Benefits
• 24 AWG twisted pair cable for reliable performance
• Stranded conductor for flexibility and ease of use
• High attenuation rate for decreased signal interference
• PVC outer sheath for added durability and protection
• U/UTP shielding for enhanced stability and security
Applications
• Ideal for gigabit Ethernet networks
• Suitable for 100BaseTX and 100BaseVG ANYLAN applications
• Can be used in noisy environments due to attenuation stability
Can it be used for outdoor installations?
This Ethernet cable is designed for indoor use and is not suitable for outdoor installations.
Will it work with AES/EBU and digital video applications?
Yes, it is compatible with AES/EBU and digital video applications.
Is it suitable for high humidity environments?
Yes, this cable is designed to maintain attenuation stability in high humidity environments.
Standards
TIA/EIA 568B1; ISO/IEC 11801; EN 50173
