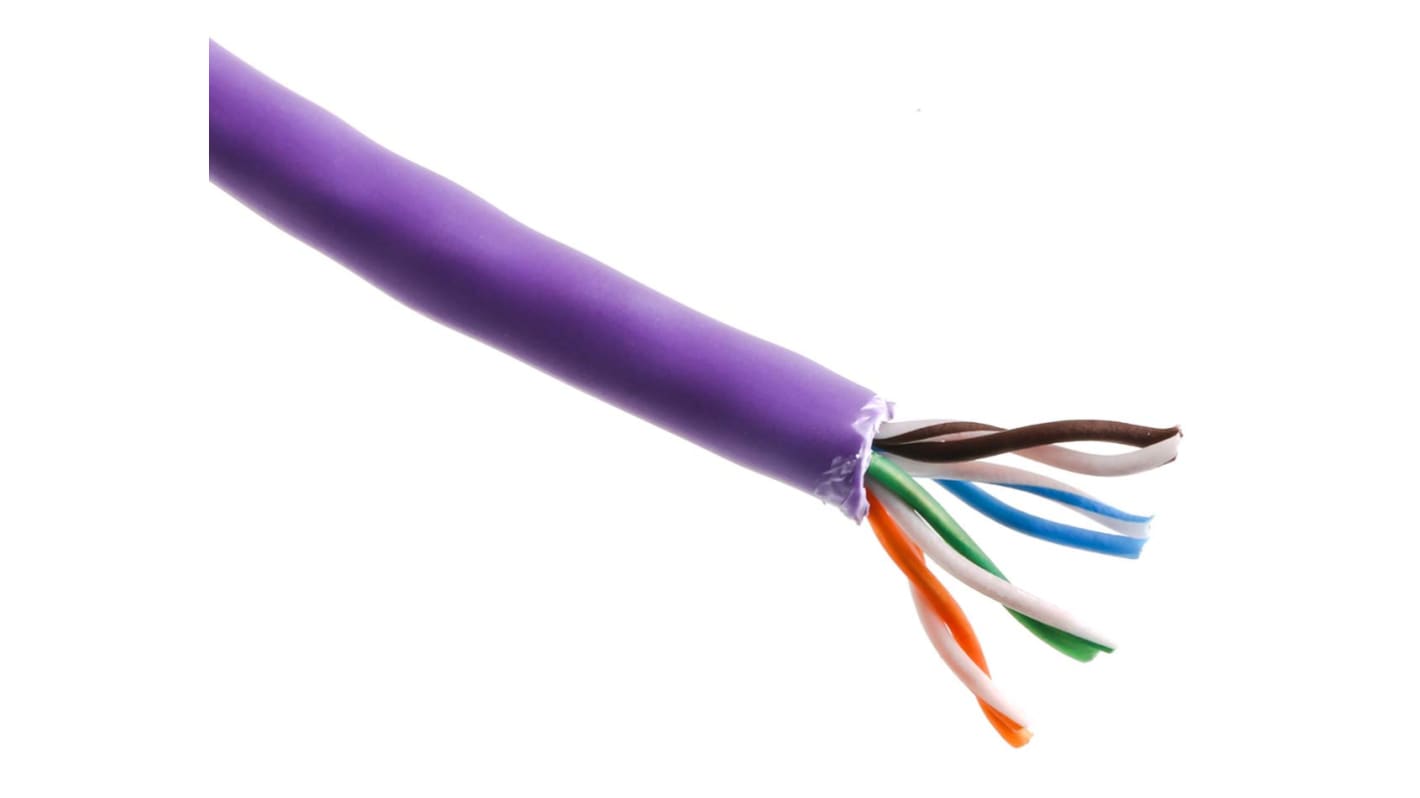

Brand-Rex, 305m Cat5e, Purple, U/UTP Unshielded, Unterminated
- RS Stock No.:
- 289-8540
- Mfr. Part No.:
- GPU-HF1-Eca-Rlx-305VT
- Brand:
- Brand-Rex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 289-8540
- Mfr. Part No.:
- GPU-HF1-Eca-Rlx-305VT
- Brand:
- Brand-Rex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Brand-Rex | |
Length | 305m | |
LAN Category | Cat5e | |
Terminated/Unterminated | Unterminated | |
Shield Type | U/UTP | |
Shielded/Unshielded | Unshielded | |
Sheath Colour | Purple | |
Core Strands | 1/24 | |
Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
American Wire Gauge | 24 AWG | |
Number of Strands | 1 | |
Conductor Strand Type | Solid | |
Capacitance | 0.4pF/m | |
Cable Shape | Twisted Pair | |
Standards Met | Euroclass Eca | |
Cross Sectional Area | 0.2 mm² | |
Outer Diameter | 4.85mm | |
Select all | ||
---|---|---|
Brand Brand-Rex | ||
Length 305m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Unterminated | ||
Shield Type U/UTP | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour Purple | ||
Core Strands 1/24 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
American Wire Gauge 24 AWG | ||
Number of Strands 1 | ||
Conductor Strand Type Solid | ||
Capacitance 0.4pF/m | ||
Cable Shape Twisted Pair | ||
Standards Met Euroclass Eca | ||
Cross Sectional Area 0.2 mm² | ||
Outer Diameter 4.85mm | ||
- COO (Country of Origin):
- GB
GigaPlus Cat5e Trunk
4-pair, 24awg solid bare copper conductor insulated with polyolefin
Exceeds the performance requirements of ISO 11801, EN 50173 and TIA/EIA 568A. It offers a guaranteed performance of 155MHz with a nominal performance of up to 350MHz. There is also an extra margin ACR available to ensure reliable operation of high speed mixed protocols LAN's and low delay and differential to ensure no problems with Fast Ethernet, Gigabit Ethernet and ATM. 155 and 622Mbs
Exceeds the performance requirements of ISO 11801, EN 50173 and TIA/EIA 568A. It offers a guaranteed performance of 155MHz with a nominal performance of up to 350MHz. There is also an extra margin ACR available to ensure reliable operation of high speed mixed protocols LAN's and low delay and differential to ensure no problems with Fast Ethernet, Gigabit Ethernet and ATM. 155 and 622Mbs
Note
100m reels are supplied in boxes
Standards
ISO 11801, EN 50173 and TIA/EIA 568A
Standards
ISO 11801; EN 50173; TIA/EIA 568A
