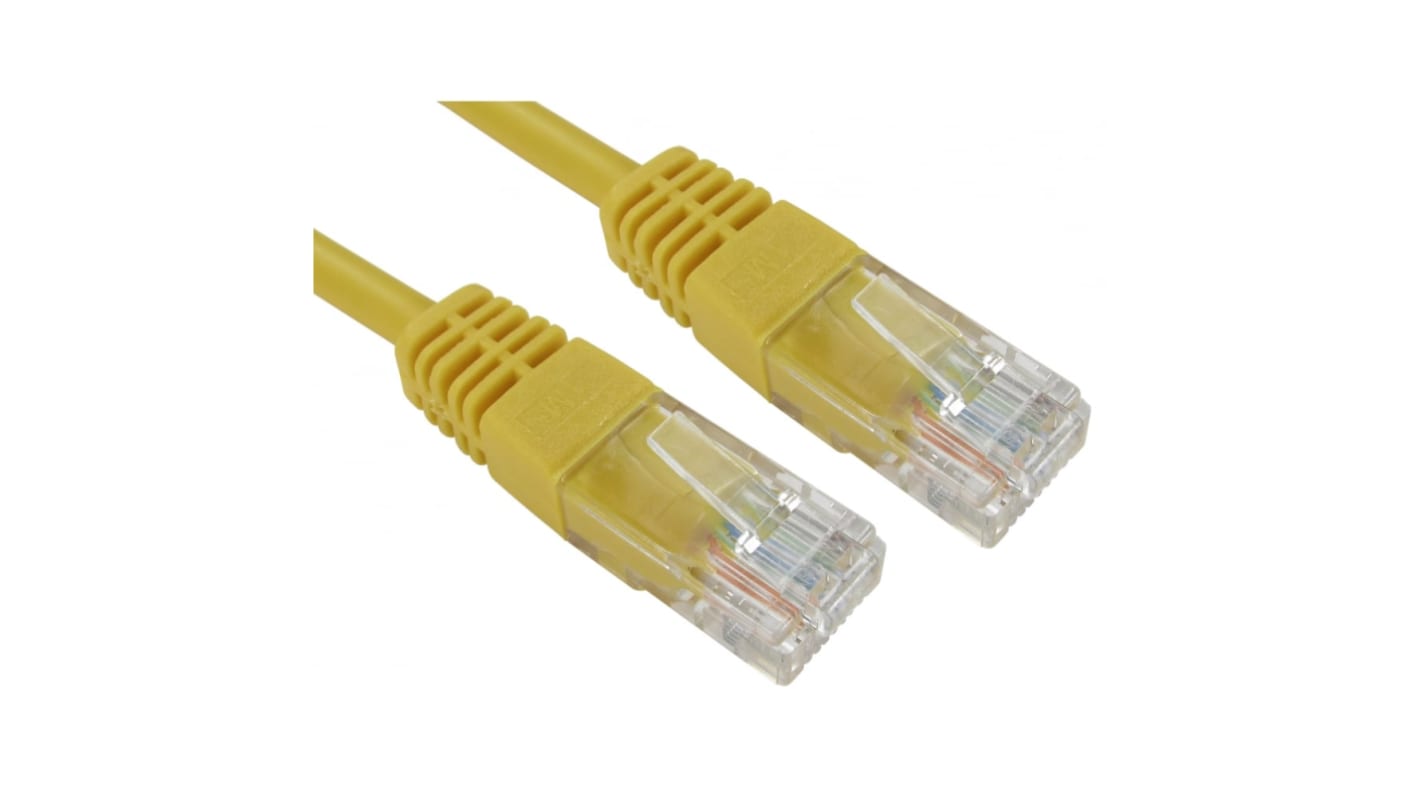

RS PRO, 15m Cat5e, Yellow RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3671
- Brand:
- RS PRO
Subtotal (1 unit)*
£12.05
(exc. VAT)
£14.46
(inc. VAT)
FREE delivery for orders over £50.00
- 19 unit(s) ready to ship
- Plus 33 unit(s) shipping from 22 October 2025
Units | Per unit |
---|---|
1 + | £12.05 |
*price indicative
- RS Stock No.:
- 286-3671
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 15m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Gender | Male | |
Connector 1 | RJ45 | |
Connector 1 Orientation | Straight | |
Connector 1 Number of Contacts | 8 | |
Connector 2 | RJ45 | |
Connector 2 Gender | Male | |
Connector 2 Number of Contacts | 8 | |
Shielded/Unshielded | Unshielded | |
Connector 2 Orientation | Straight | |
Sheath Colour | Yellow | |
Outer Sheath Material | PVC | |
Wiring Configuration | Straight Through | |
Fire Behaviour | CM Rated | |
Core Strands | 7/0.15 | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
Current Rating | 960mA | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Cable Shape | Round | |
Outer Diameter | 4.6mm | |
Number of Strands | 8 | |
American Wire Gauge | 26AWG | |
Conductor Strand Type | Stranded | |
Capacitance | 5.6nF/100m | |
Voltage Rating | 80V | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 15m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 RJ45 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Shielded/Unshielded Unshielded | ||
Connector 2 Orientation Straight | ||
Sheath Colour Yellow | ||
Outer Sheath Material PVC | ||
Wiring Configuration Straight Through | ||
Fire Behaviour CM Rated | ||
Core Strands 7/0.15 | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
Current Rating 960mA | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Cable Shape Round | ||
Outer Diameter 4.6mm | ||
Number of Strands 8 | ||
American Wire Gauge 26AWG | ||
Conductor Strand Type Stranded | ||
Capacitance 5.6nF/100m | ||
Voltage Rating 80V | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e Patch Cable
Features and Benefits
Cat5e compliance provides enhanced performance for fast data transfer
Moulded connectors offer durability and secure connections
26 AWG bare copper cores ensure robust and stable connectivity
CM (UL) C(UL) 4P rating for fire safety compliance
ISO/IEC 11801 and TIA/EIA 568B.2 standards ensure compatibility with global networking requirements
PoE compatible for powering devices over Ethernet
Applications
Ethernet connections
Residential and commercial data cabling
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Length: 15 m
Connector Type: RJ45 Male to Male
